Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heater inlet adapter pipe.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the heater outlet adapter pipe mounting bolt.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

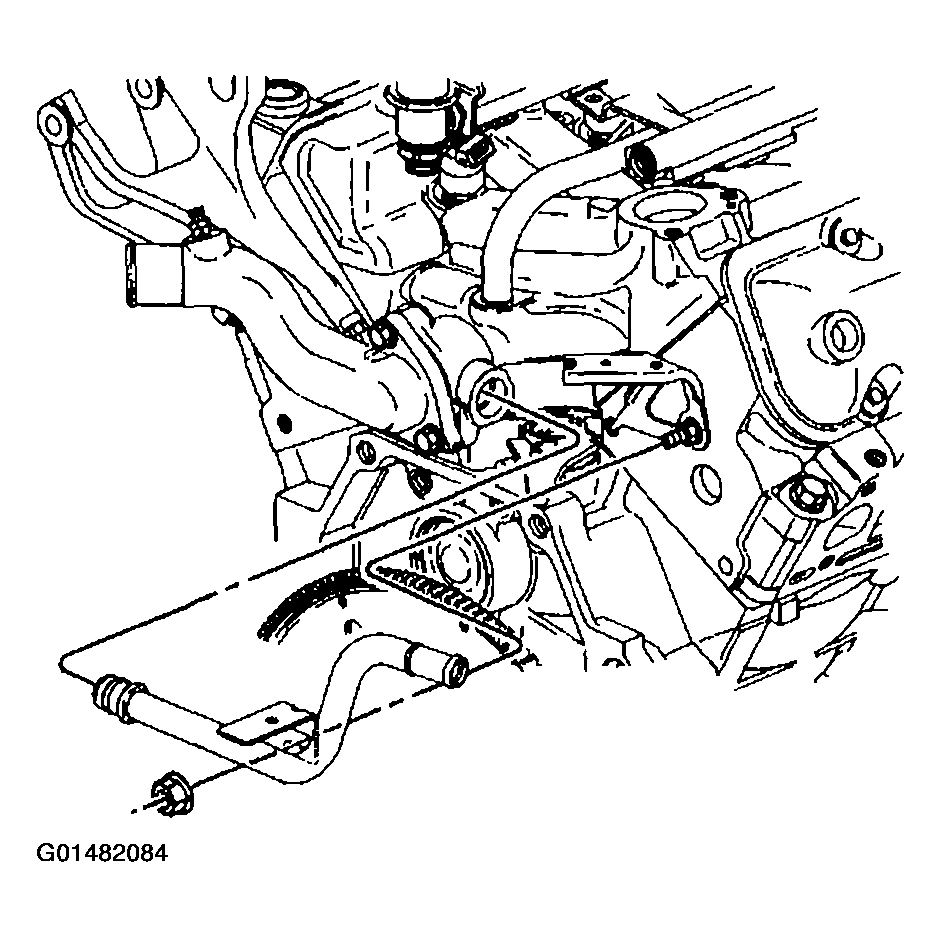

    Fig 1: Installing Heater Outlet Adapter Pipe & Mounting Bolt
    G01482084Courtesy of GENERAL MOTORS CORP.
  3. Connect the inlet hose (3) to the inlet pipe.
  4. Use J 38185  in order to position the heater hose inlet clamp.
  5. Install the air cleaner assembly.
  6. Refill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

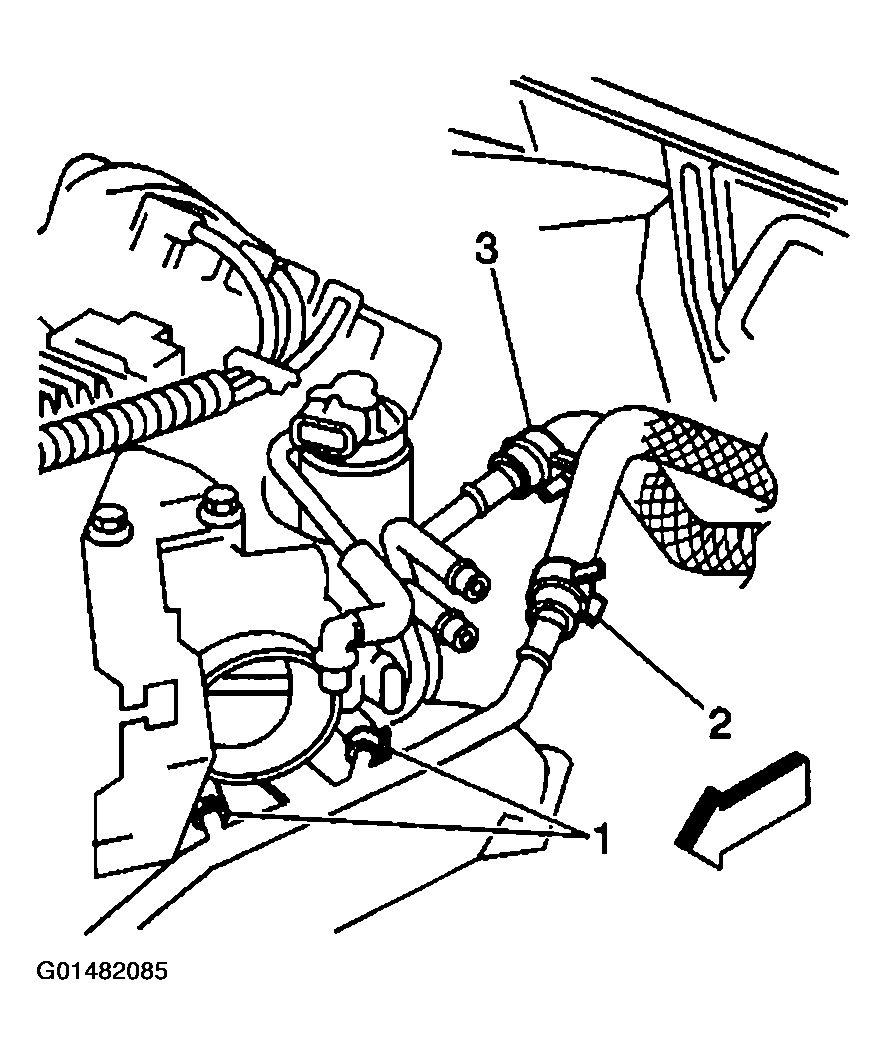

Fig 2: Connecting Inlet Hose To Inlet Pipe
G01482085Courtesy of GENERAL MOTORS CORP.
