Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Use J 38185 in order to reposition the heater hose inlet clamp.
Disconnect the heater inlet hose (3) from the inlet pipe.

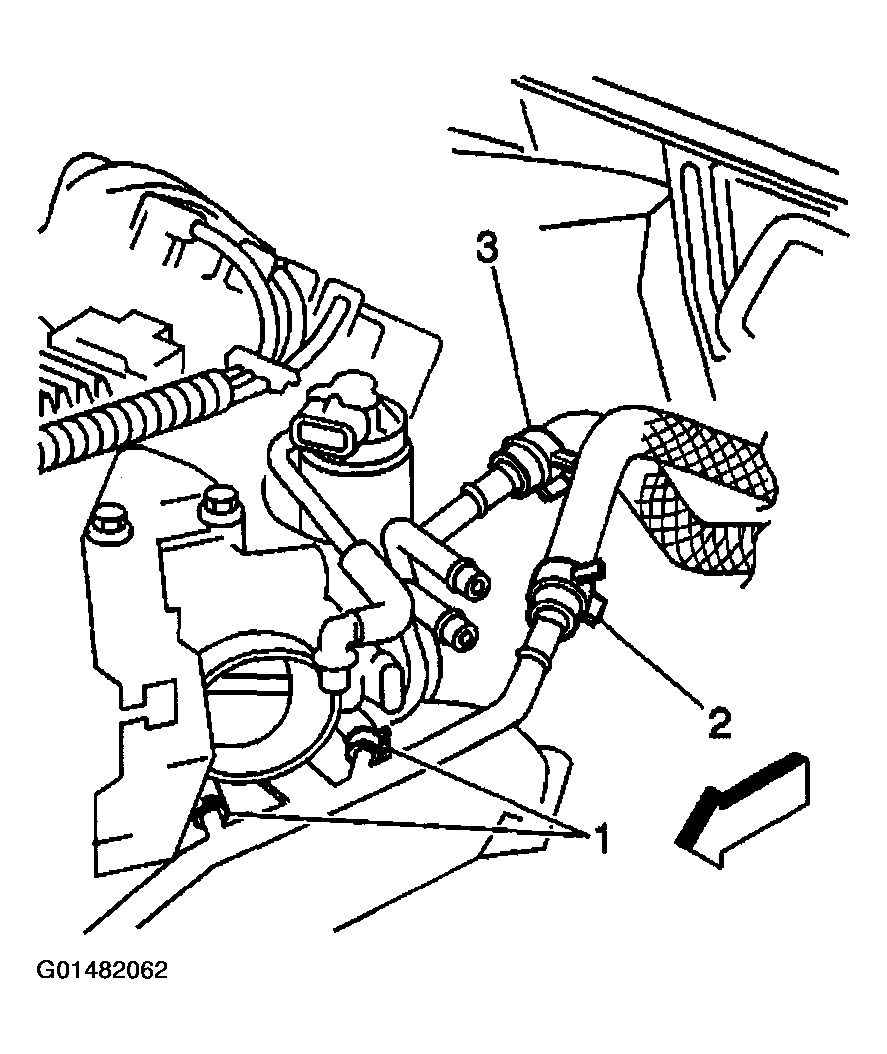

Fig 1: Disconnecting Heater Inlet Hose From Inlet Pipe
Courtesy of GENERAL MOTORS CORP.
Use J 38185 in order to reposition the heater core inlet hose clamp.
Disconnect the heater inlet hose from the heater core.
Remove the heater inlet hose.

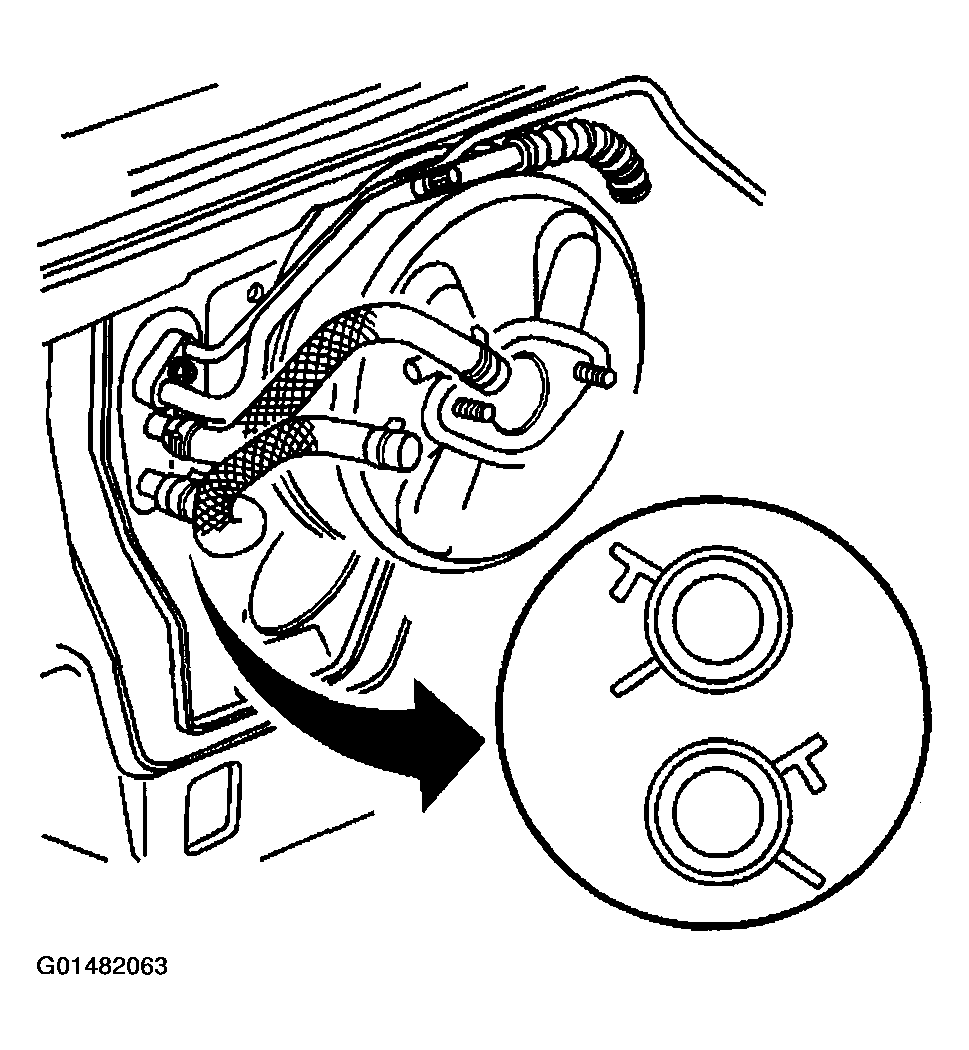

Fig 2: Disconnecting Heater Inlet Hose From Heater Core
Courtesy of GENERAL MOTORS CORP.
