Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Grind the material from the heat stakes at the base of the air outlet deflector housing.
  3. Remove the air outlet deflector housing from the IPC trim plate.
  4. Using a small flat-B laded tool, disconnect the sides of the deflector housing.
  5. Open the deflector housing in order to expose the deflectors.
  6. Remove the deflectors from the housing by pressing out from the front to the rear.

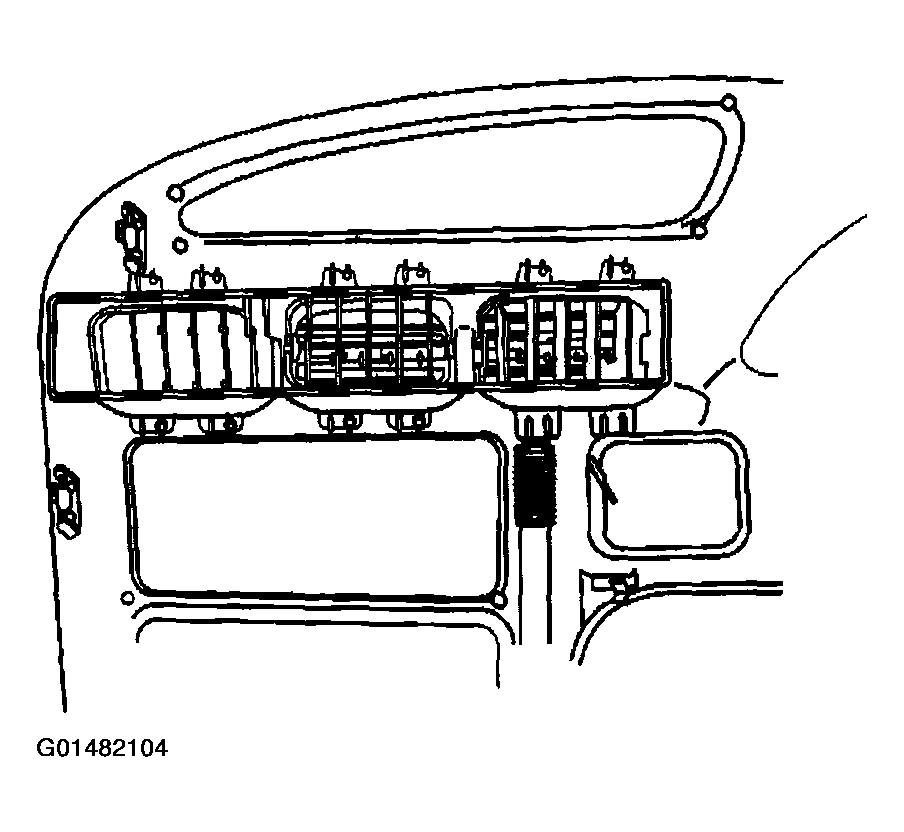

Fig 1: Identifying Air Outlet Deflector Housing
G01482104Courtesy of GENERAL MOTORS CORP.
