Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The left and right air temperature doors pivot in the center.

  1. Install the air temperature doors (1, 2).

    Carefully align the air temperature door into the HVAC module case.

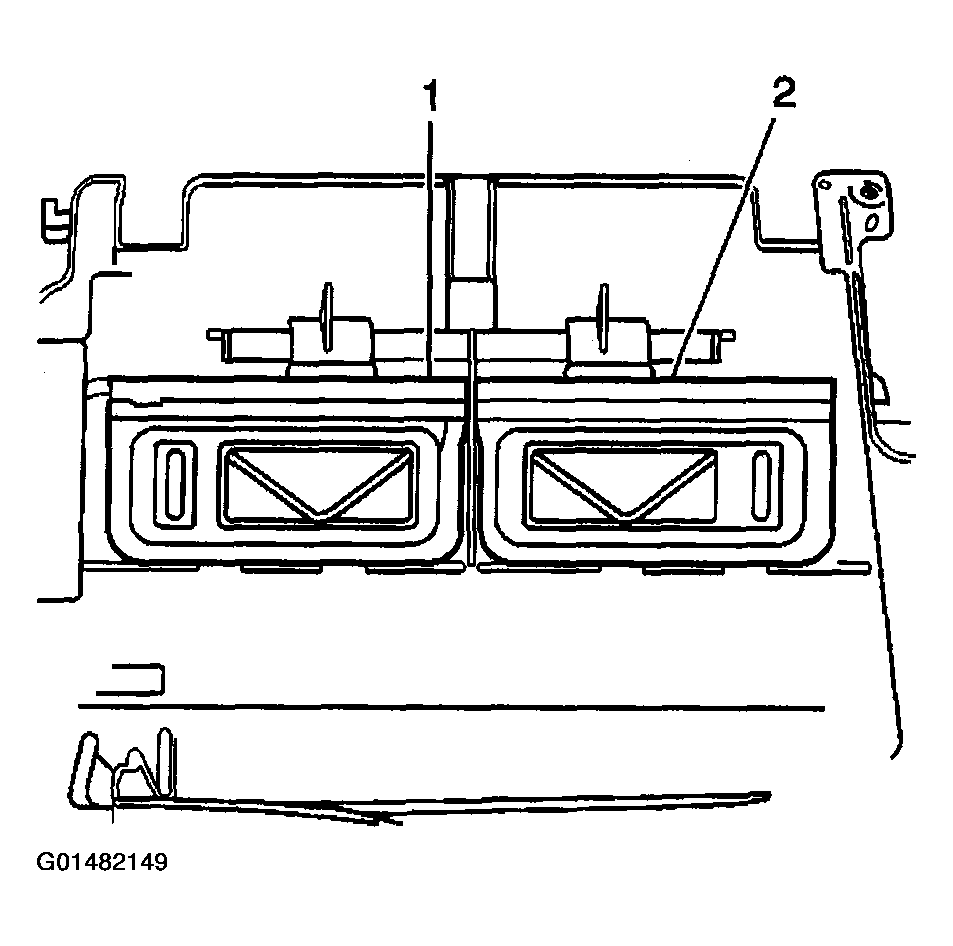

    Fig 1: Installing Air Temperature Doors
    G01482149Courtesy of GENERAL MOTORS CORP.
  2. Install the new case seal (2) to the HVAC module assembly case (1).

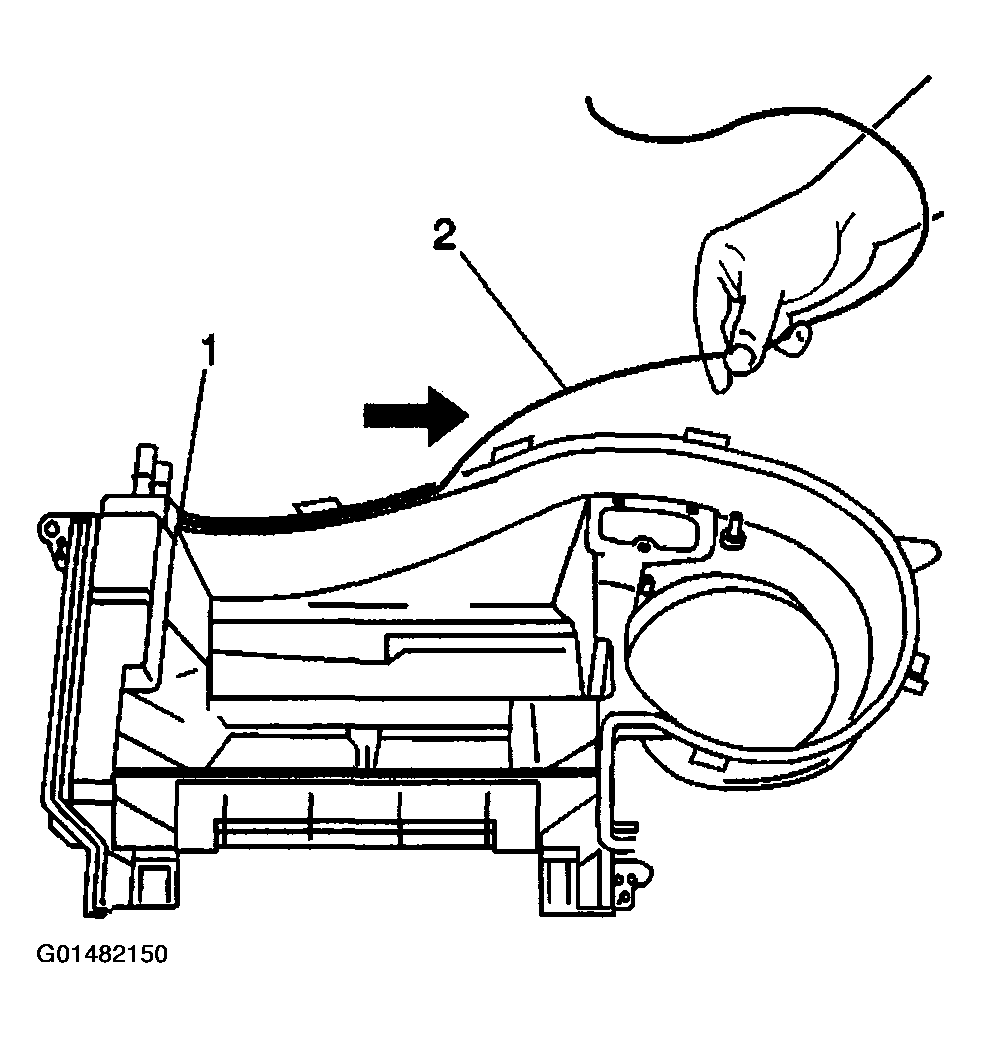

    Fig 2: Installing HVAC Module Case Seal
    G01482150Courtesy of GENERAL MOTORS CORP.

    Important:  Inspect the condition of the retaining tab on the upper module case prior to installing the lower module case. If the retaining tab is broken or damaged, install an external retaining clip, P/N 52458793, or equivalent.

  3. Align and install the upper module case to the lower module case.

    Align and secure the retaining tab (1).

    NOTE: Refer to FASTENER NOTICE .
  4. Install the HVAC module assembly upper mounting screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

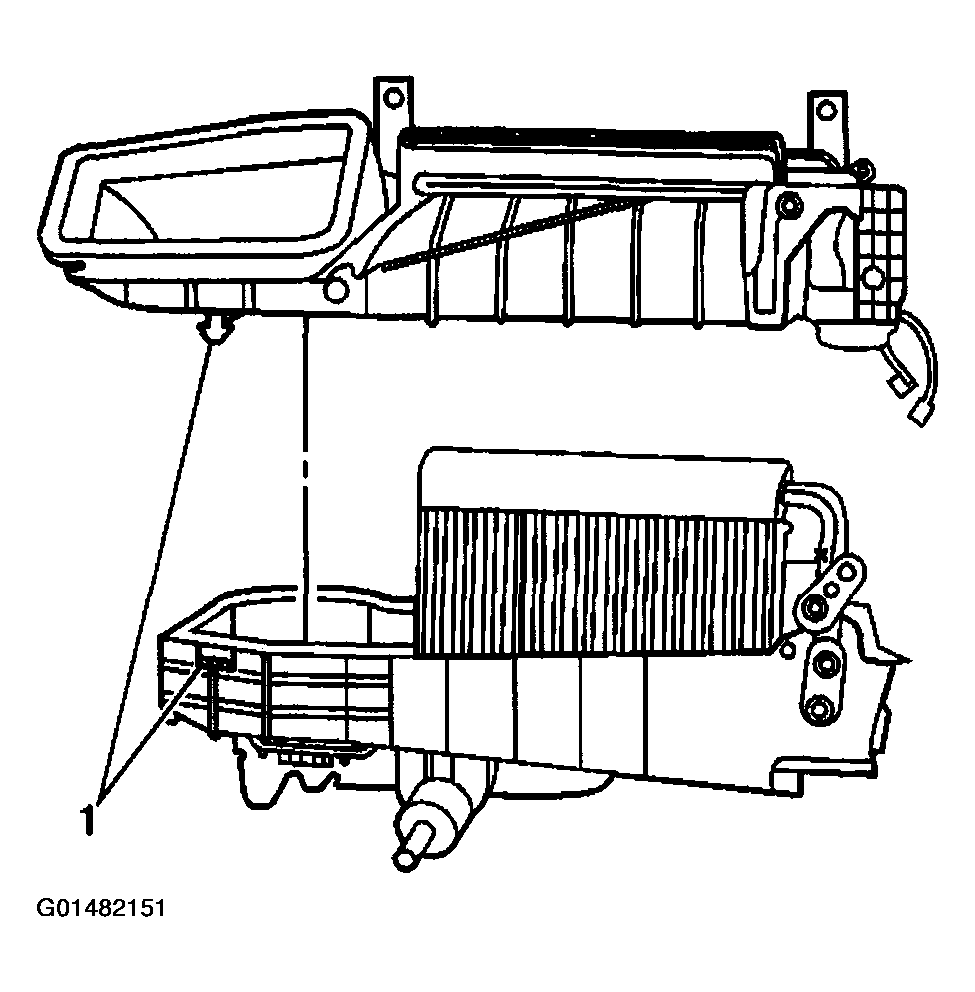

    Fig 3: Installing Upper Module Case To Lower Module Case
    G01482151Courtesy of GENERAL MOTORS CORP.
  5. Install the air inlet housing.
  6. Install the air inlet housing retaining screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  7. Position the right air temperature actuator, then align the slots in the electric actuator drive to the flats of the shaft.
  8. Align the locating hole to the alignment pin on the HVAC module case.
  9. Slide the actuator drive on the shaft. The actuator drive should set completely on the shaft and the mounting holes should be flush with the mounting screws on the HVAC module case.
    NOTE: Refer to FASTENER NOTICE .
  10. Install the screws to the right air temperature actuator.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  11. Position the left air temperature actuator, then align the slots in the electric actuator drive to the flats of the shaft.

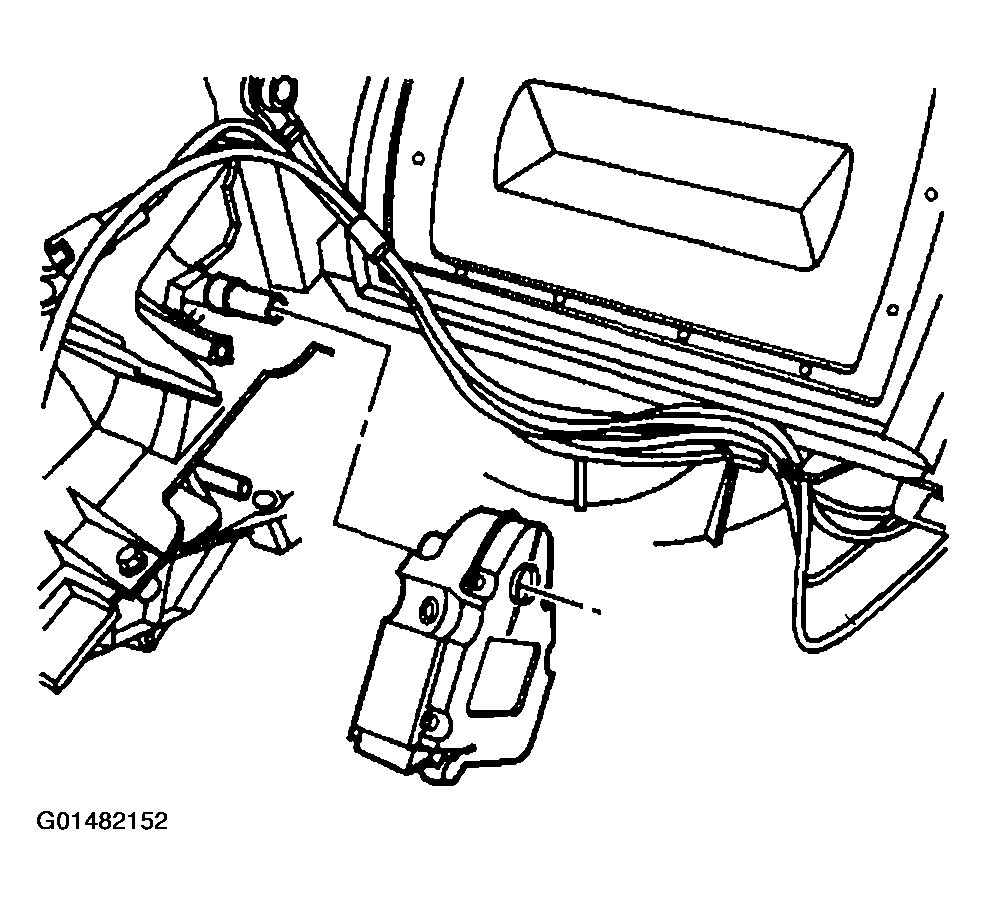

    Fig 4: Installing Screws To Right Air Temperature Actuator
    G01482152Courtesy of GENERAL MOTORS CORP.
  12. Align the locating hole to the alignment pin on the HVAC module case.
  13. Slide the actuator drive on the shaft. The actuator drive should set completely on the shaft and the mounting holes should be flush with the mounting screws on the HVAC module case.
  14. Install the screws to the left air temperature actuator.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  15. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement  .
