WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

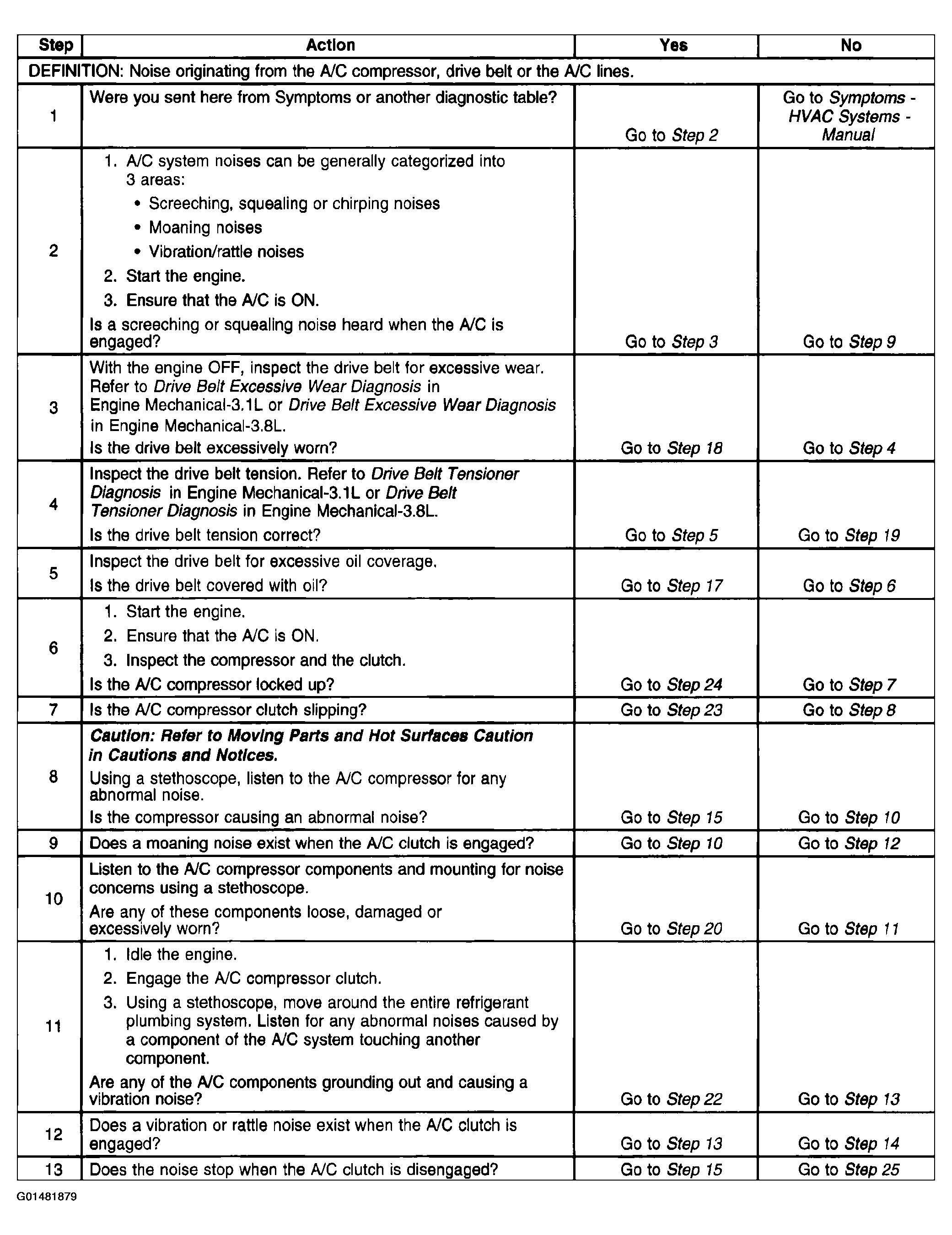

Fig 1: Noise Diagnosis - Air Conditioning (A/C) System (Steps 1 - 13)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Noise Diagnosis - Air Conditioning (A/C) System (Steps 14 - 26)
