Air Conditioning (A/C) Diagnostics - Pressure Zone B

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

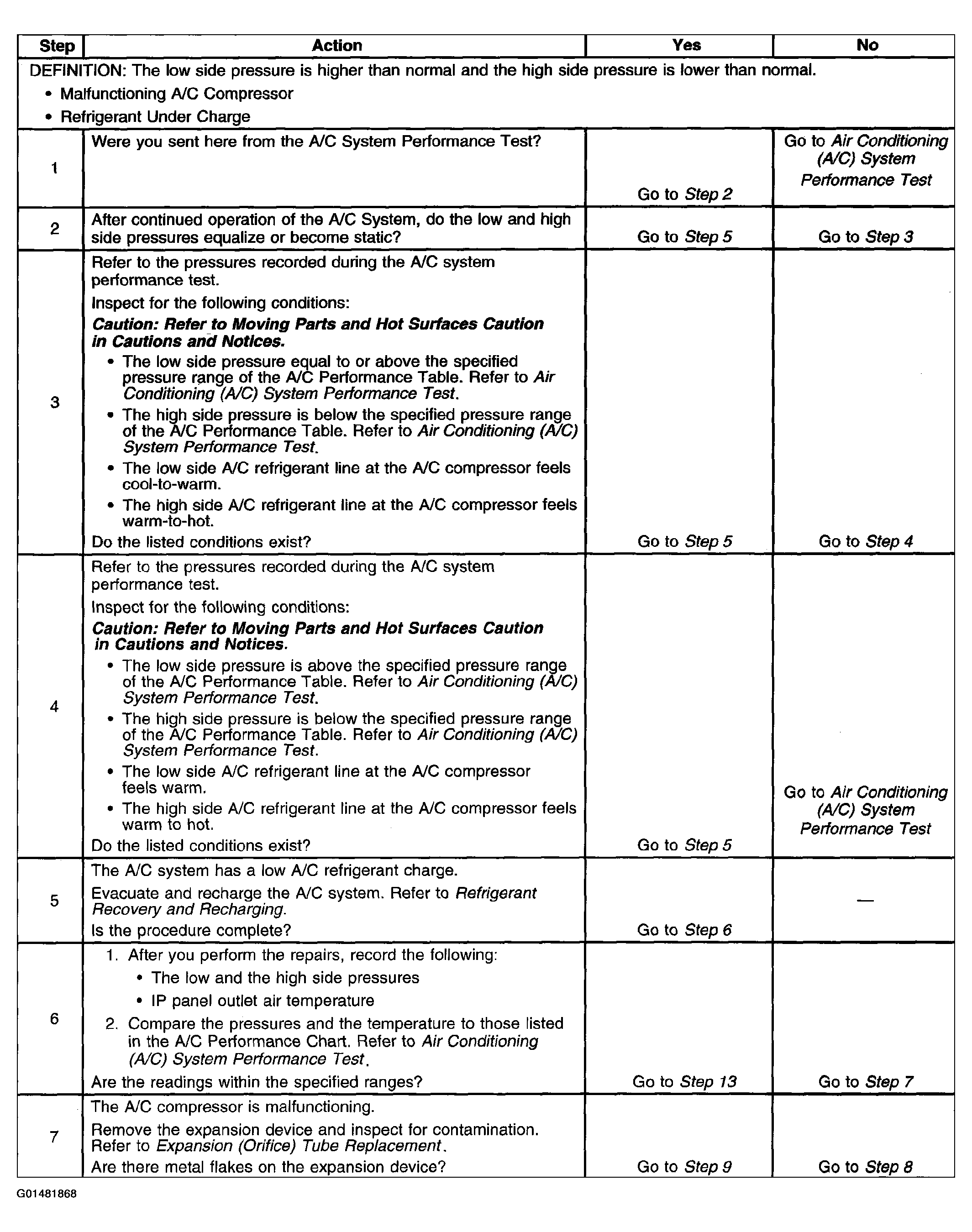

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone B (Steps 1 - 7)
G01481868Courtesy of GENERAL MOTORS CORP.

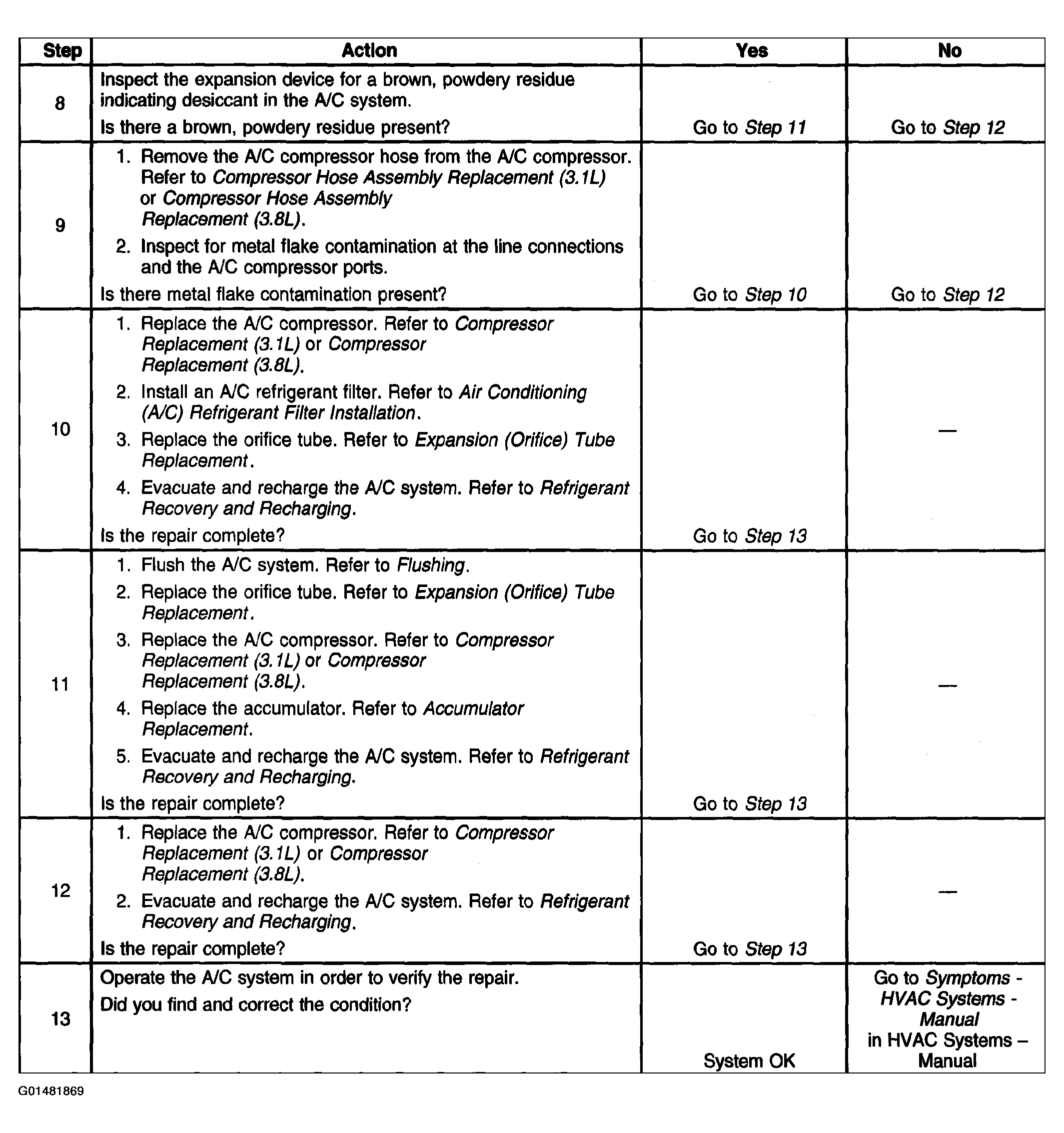

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone B (8 - 13)
G01481869Courtesy of GENERAL MOTORS CORP.
