Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide adjuster bracket to the pillar.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 guide adjuster bracket retaining bolts to the pillar.

    Tighten

    Tighten the guide adjuster bracket retaining bolts to the pillar to 20 N.m (15 ft lbs).

  3. Align the tabs of the C-pillar side garnish molding trim with the openings in the pillar and push inward until fully seated.
  4. Install the shoulder belt retaining bolt to the guide adjuster bracket.

    Tighten

    Tighten the shoulder belt retaining bolt to the guide adjuster bracket to 53 N.m (39 ft lbs).

  5. Close the cover on the rear seat shoulder belt bolt.

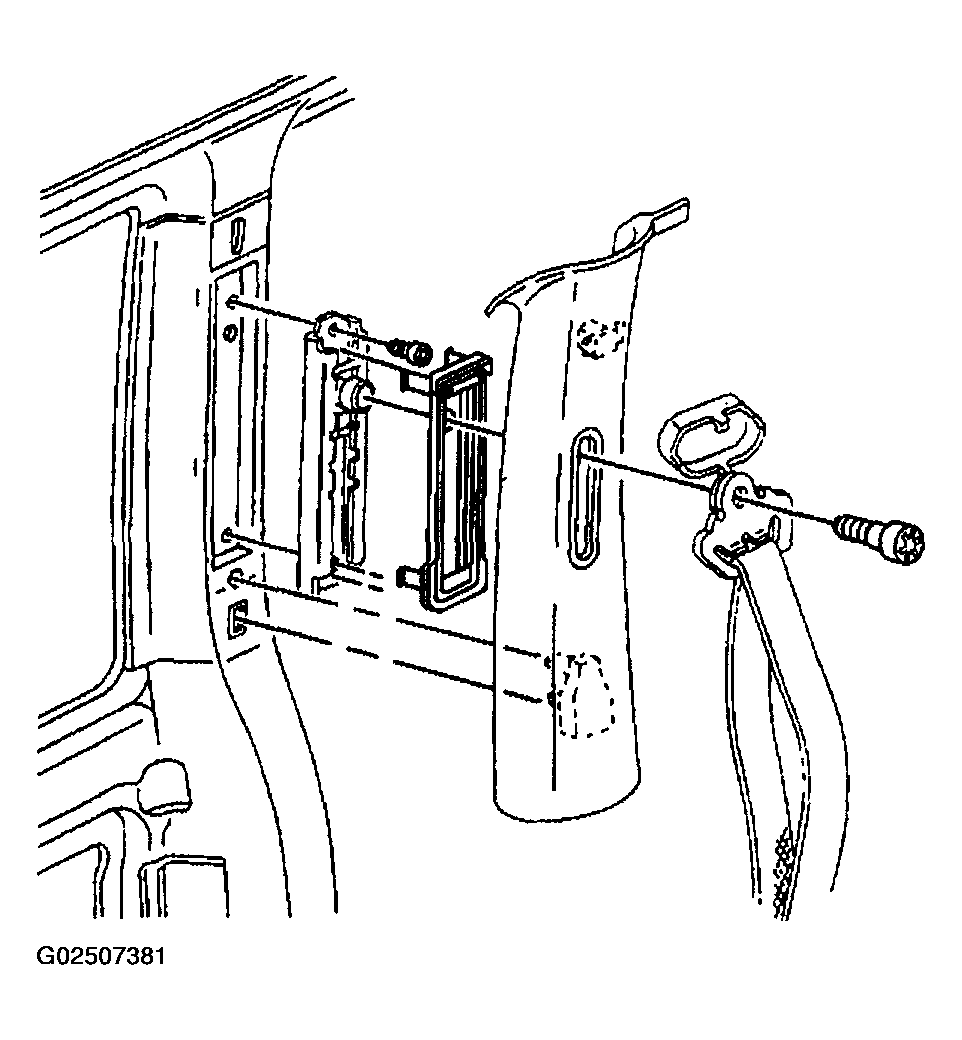

    Fig 1: Installing Rear Shoulder Belt Guide Adjuster
    G02507381Courtesy of GENERAL MOTORS CORP.
