Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover for the front seat shoulder belt to expose the bolt.
  2. Remove the front seat shoulder belt retaining bolt from the guide adjuster bracket.
  3. Remove the left front side door lock pillar garnish molding.
  4. Remove the right front side door lock pillar garnish molding.
  5. Remove the 2 guide adjuster bracket retaining bolts from the pillar.
  6. Remove the guide adjuster bracket from the pillar.

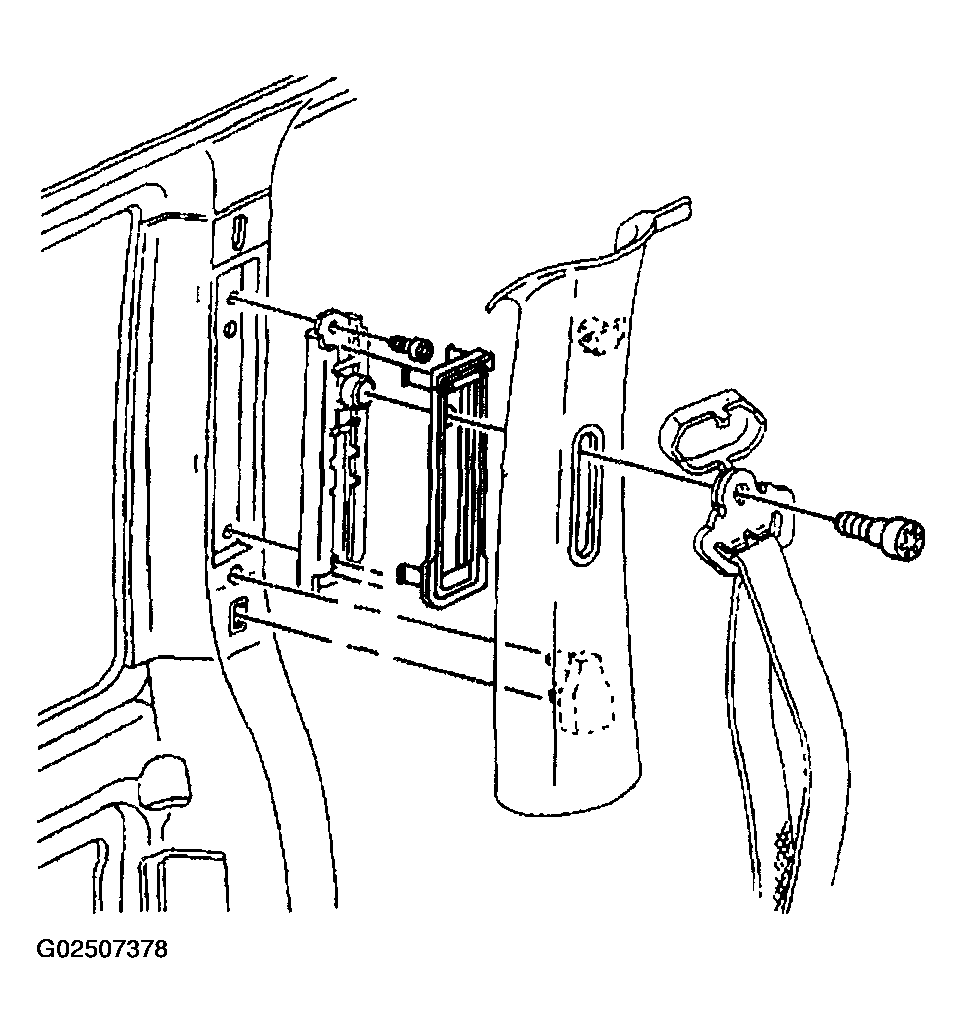

    Fig 1: Removing Front Shoulder Belt Guide Adjuster Bracket From Pillar
    G02507378Courtesy of GENERAL MOTORS CORP.
