Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide adjuster bracket to the pillar.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 guide adjuster bracket retaining bolts to the pillar.

    Tighten

    Tighten the guide adjuster bracket retaining bolts to the pillar to 20 N.m (15 ft lbs).

  3. Install the left front side door lock pillar garnish molding.
  4. Install the right front side door lock pillar garnish molding.
  5. Install the shoulder belt retaining bolt to the guide adjuster bracket.

    Tighten

    Tighten the front seat shoulder belt retaining bolt to the guide adjuster bracket to 53 N.m (39 ft lbs).

  6. Install the cover for the front seat shoulder belt.

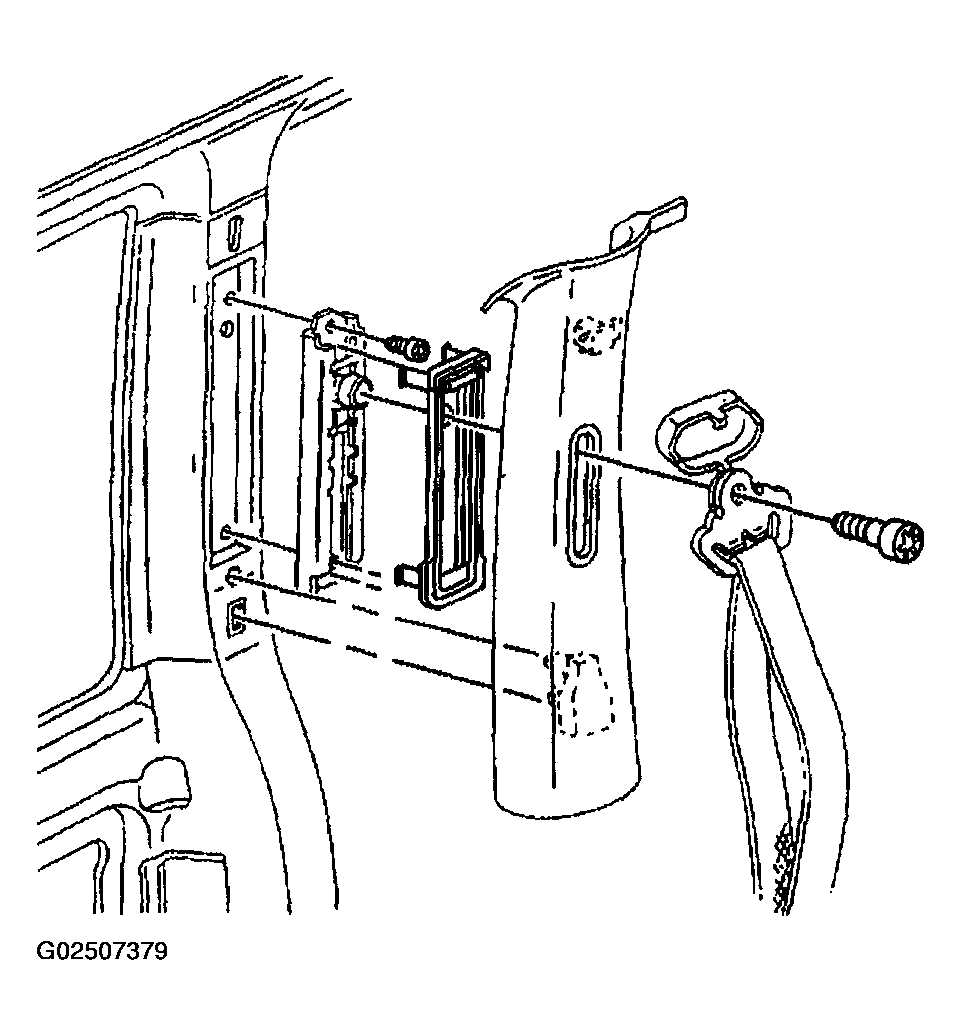

    Fig 1: Installing Front Shoulder Belt Guide Adjuster Bracket To Pillar
    G02507379Courtesy of GENERAL MOTORS CORP.
