Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim cover from the rear seat belt retractor, by grasping the sides and pull downward.
  2. Remove the seat belt retractor buckle from the latch.
    1. 2.1. Locate the red dot in the center of the buckle.
    2. 2.2. Insert a small pointed tool in the center of the buckle.
    3. 2.3. Push inward for it to release from the latch.

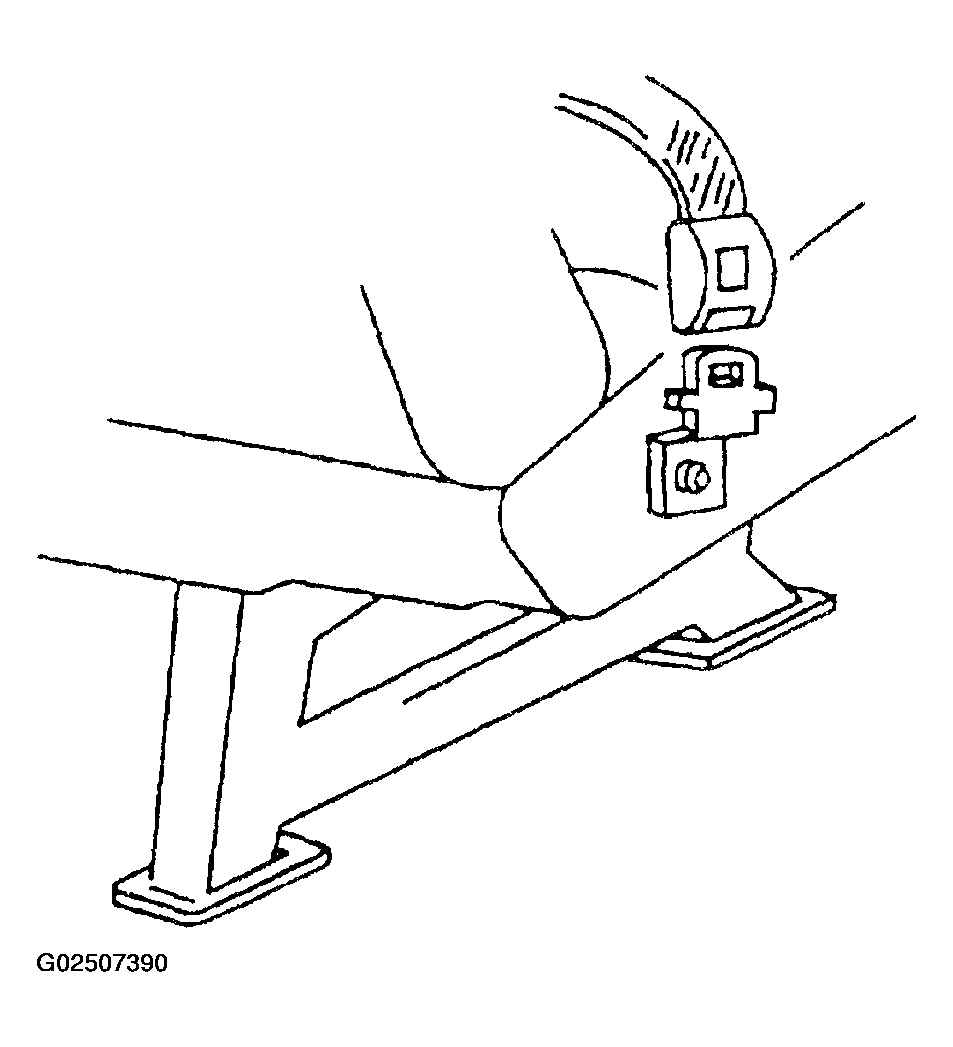

      Fig 1: Removing Rear Seat Belt Buckle From Latch
      G02507390Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat belt retractor nuts from the roof reinforcement.
  4. Remove the rear seat belt retractor from the vehicle.

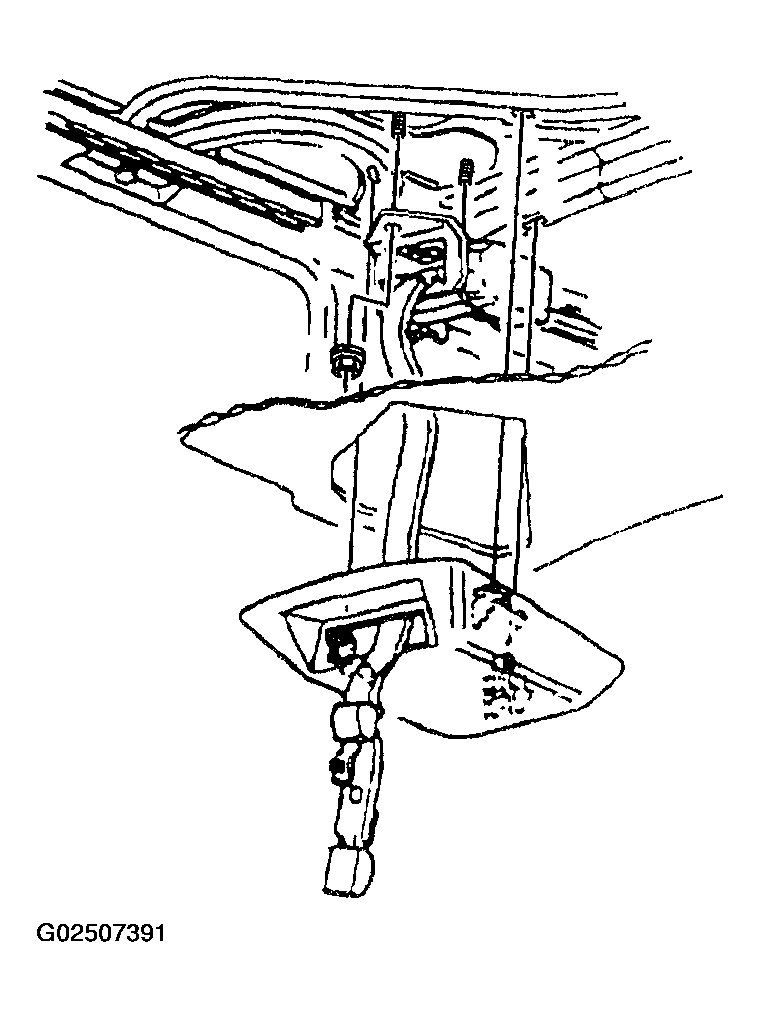

    Fig 2: Removing Rear Seat Belt Retractor Nuts From Roof Reinforcement
    G02507391Courtesy of GENERAL MOTORS CORP.
