Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt retractor to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear seat belt retractor nuts to the roof reinforcement panel.

    Tighten

    Tighten the seat belt retractor nuts to 35 N.m (26 ft lbs).

  3. Snap the retractor cover into place.

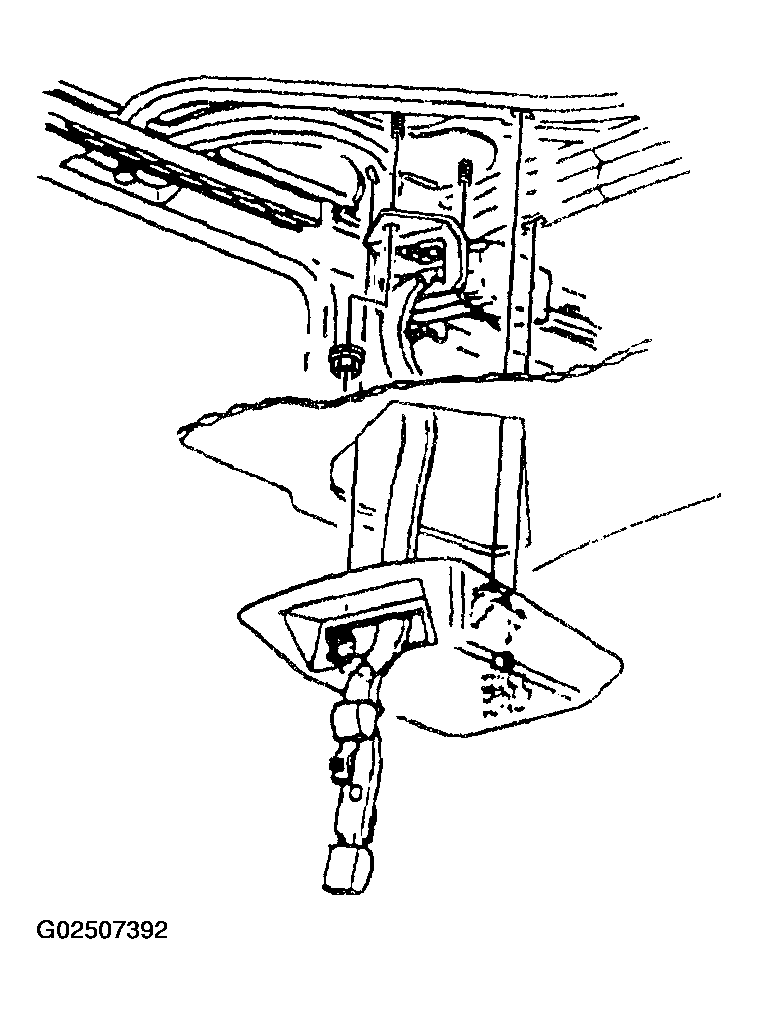

    Fig 1: Installing Rear Seat Belt Retractor Nuts To Roof Reinforcement
    G02507392Courtesy of GENERAL MOTORS CORP.
  4. Install the seat belt buckle to the latch.

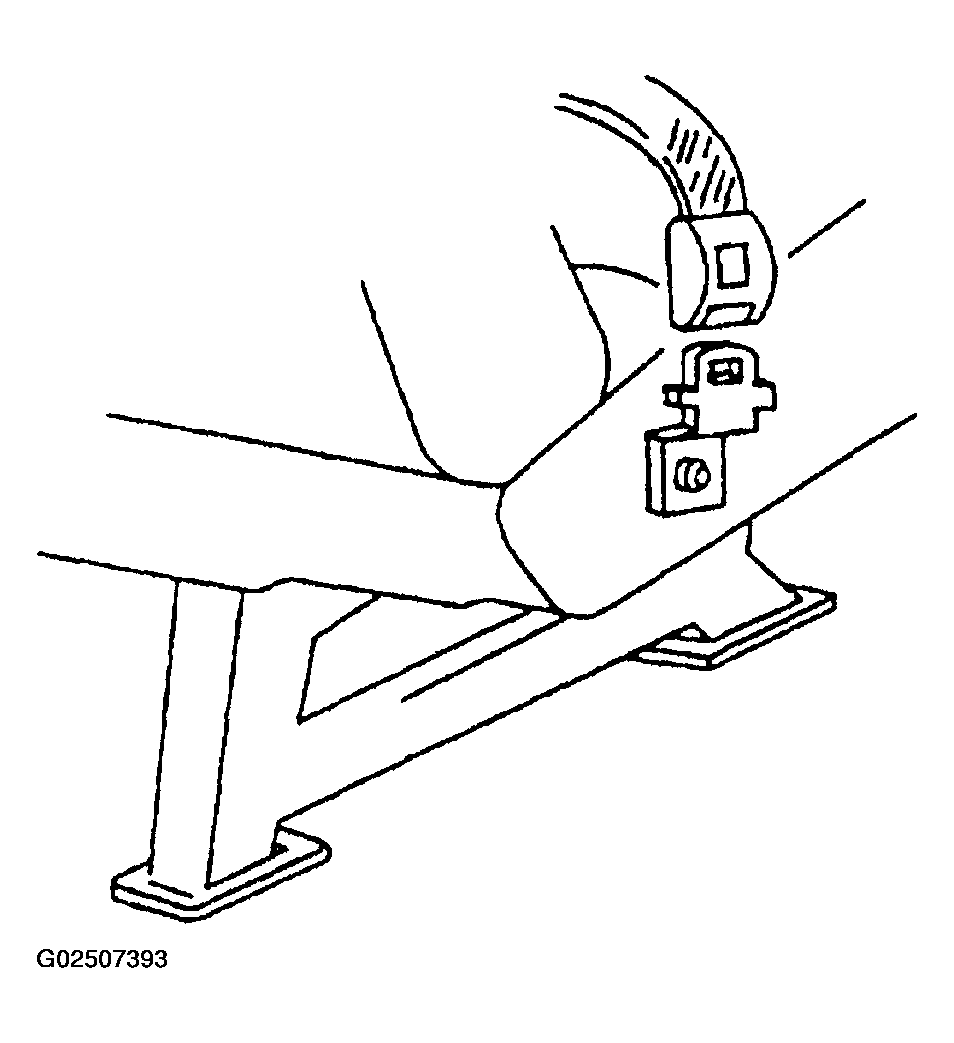

    Fig 2: Installing Seat Belt Buckle To Latch
    G02507393Courtesy of GENERAL MOTORS CORP.
