Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the front seat all the way forward.
  2. Remove the seat belt from the seat belt guide located on the side of the bucket seat.
  3. Remove the cover from the shoulder belt guide to expose the bolt.
  4. Remove the retaining bolt from the shoulder belt guide adjuster bracket.
  5. Remove the right front lock pillar inside garnish molding.
  6. Remove the cover on the base of the retractor to expose the bolt.
  7. Remove the bolt from the retractor to the pillar.
  8. Remove the electrical connectors.
  9. Remove the retractor from the vehicle.

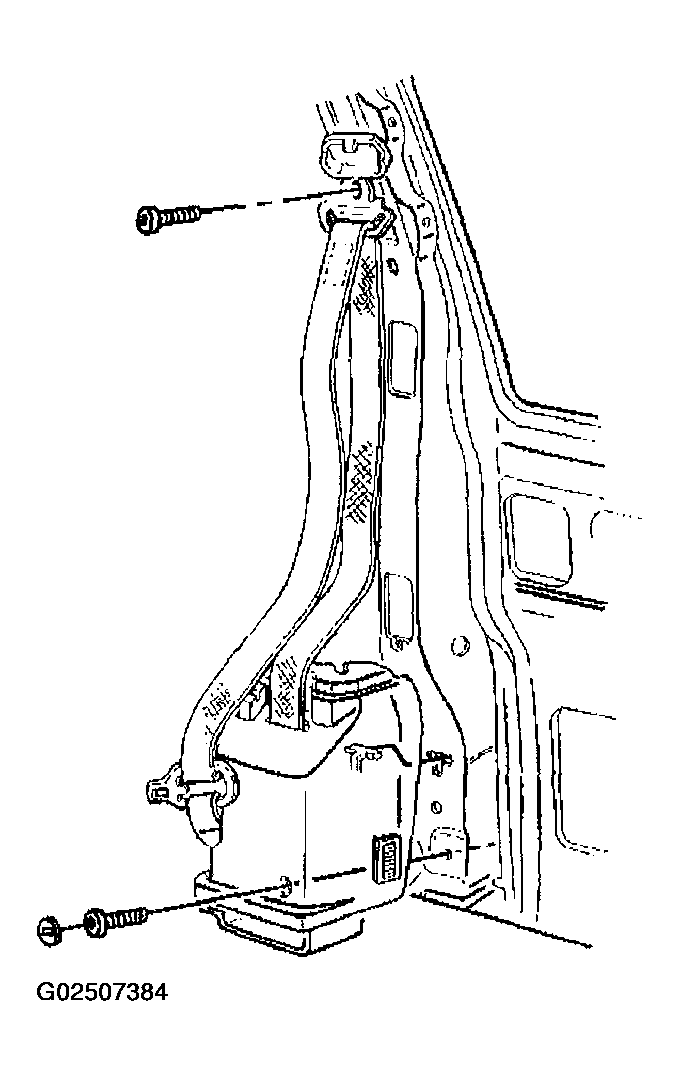

    Fig 1: Removing Right Front Seat Belt Retractor
    G02507384Courtesy of GENERAL MOTORS CORP.
