Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the jack storage access door.
  2. Remove the storage tray. Squeeze the storage tray from underneath. This will expose the retractor bolt.

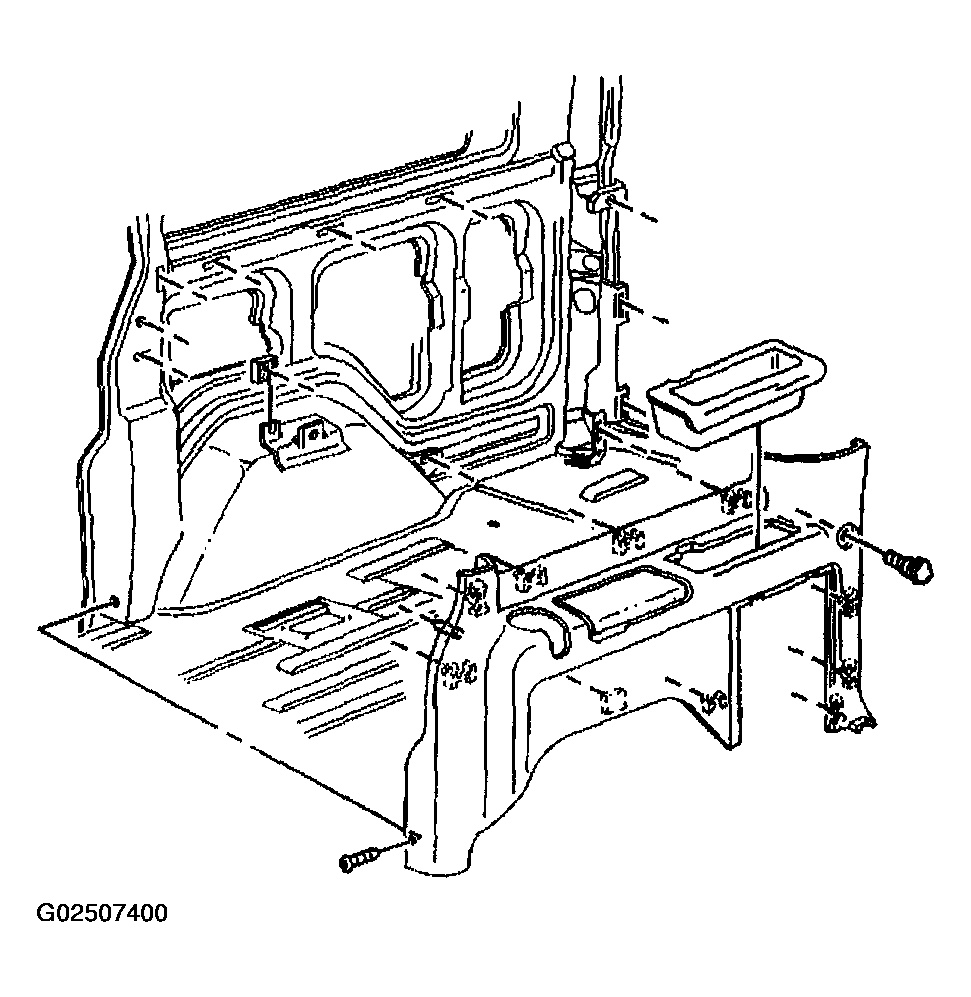

    Fig 1: Removing Storage Tray & Jack Storage Access Door
    G02507400Courtesy of GENERAL MOTORS CORP.
  3. Remove the retractor retaining bolt.

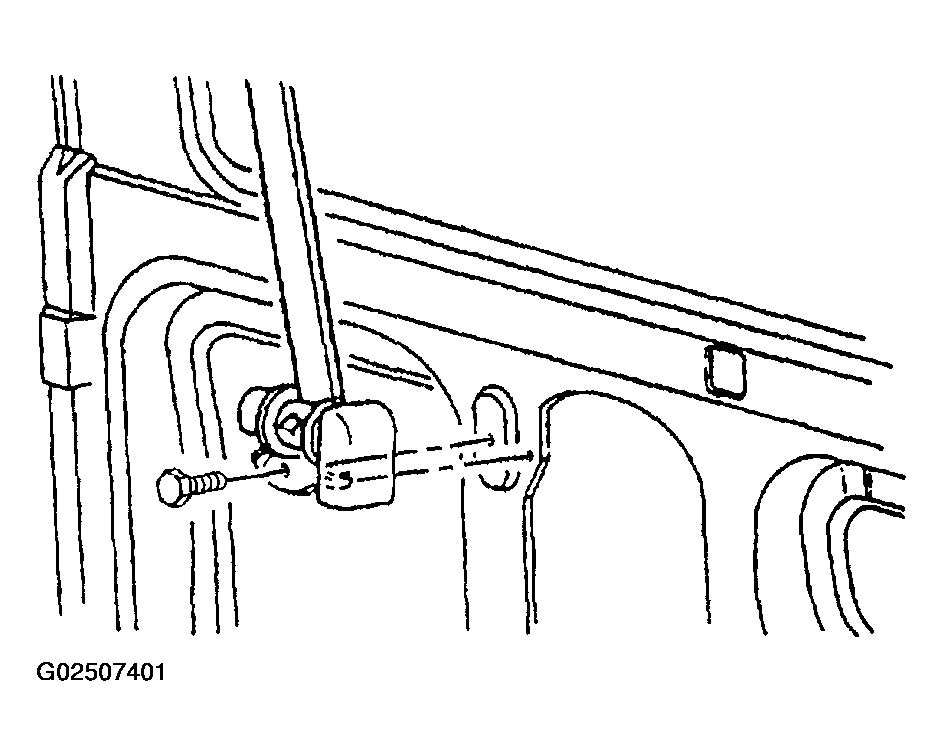

    Fig 2: Removing Retractor Retaining Bolt
    G02507401Courtesy of GENERAL MOTORS CORP.
  4. Remove the shoulder belt cover to expose the bolt.
  5. Remove the shoulder belt retaining bolt from the bracket.
  6. Remove the retractor from the vehicle.

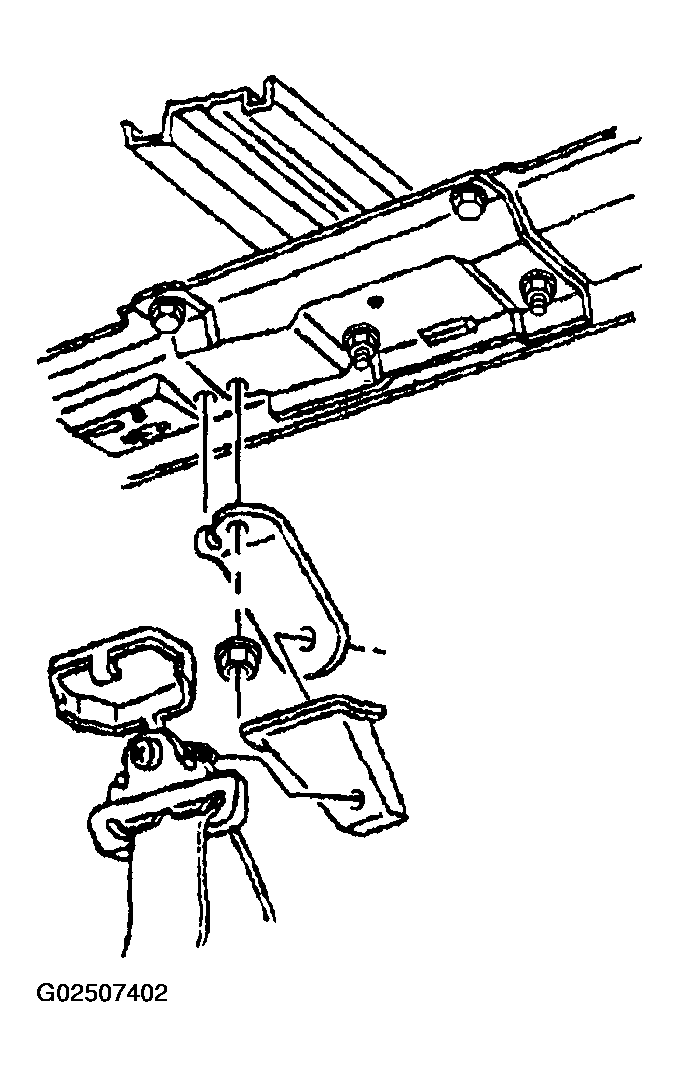

    Fig 3: Removing Shoulder Belt Retaining Bolt From Bracket
    G02507402Courtesy of GENERAL MOTORS CORP.
