Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retractor to the vehicle.

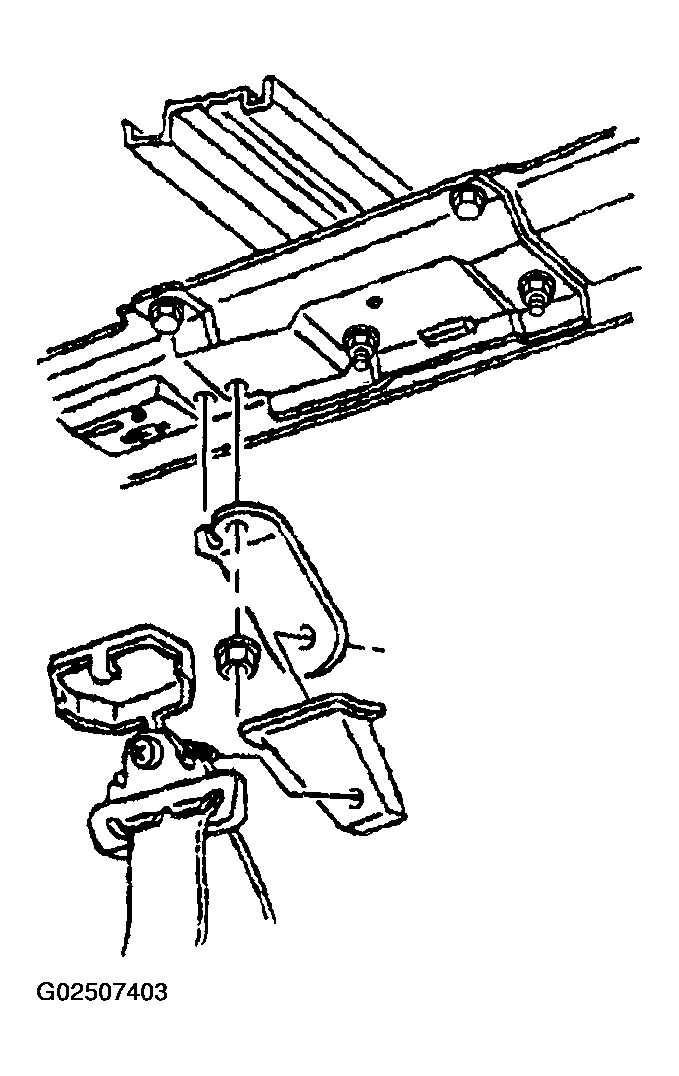

    Fig 1: Installing Shoulder Belt Retaining Bolt To Bracket
    G02507403Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt retaining the shoulder belt to the bracket.

    Tighten

    Tighten the bolt retaining the shoulder belt to the bracket to 30 N.m (22 ft lbs).

  3. Install the shoulder belt cover.
  4. Install the retractor retaining bolt.

    Tighten

    Tighten the retractor retaining bolt to 53 N.m (39 ft lbs).

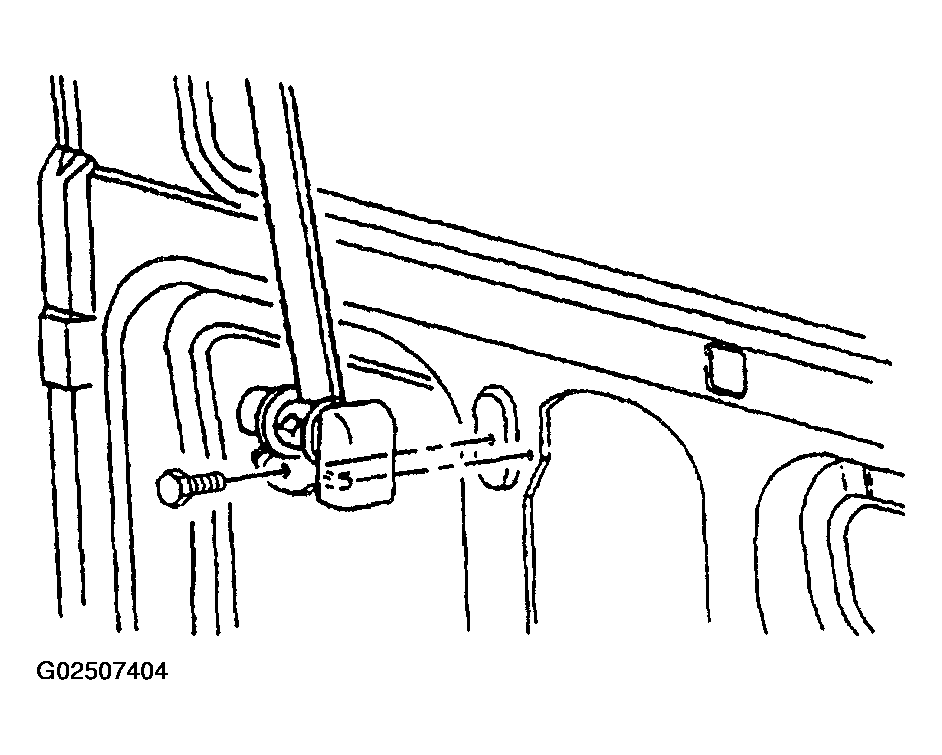

    Fig 2: Installing Retractor Retaining Bolt
    G02507404Courtesy of GENERAL MOTORS CORP.
  5. Install the storage tray. Squeeze the storage tray together. Press the storage tray into place.
  6. Install the jack storage access door.

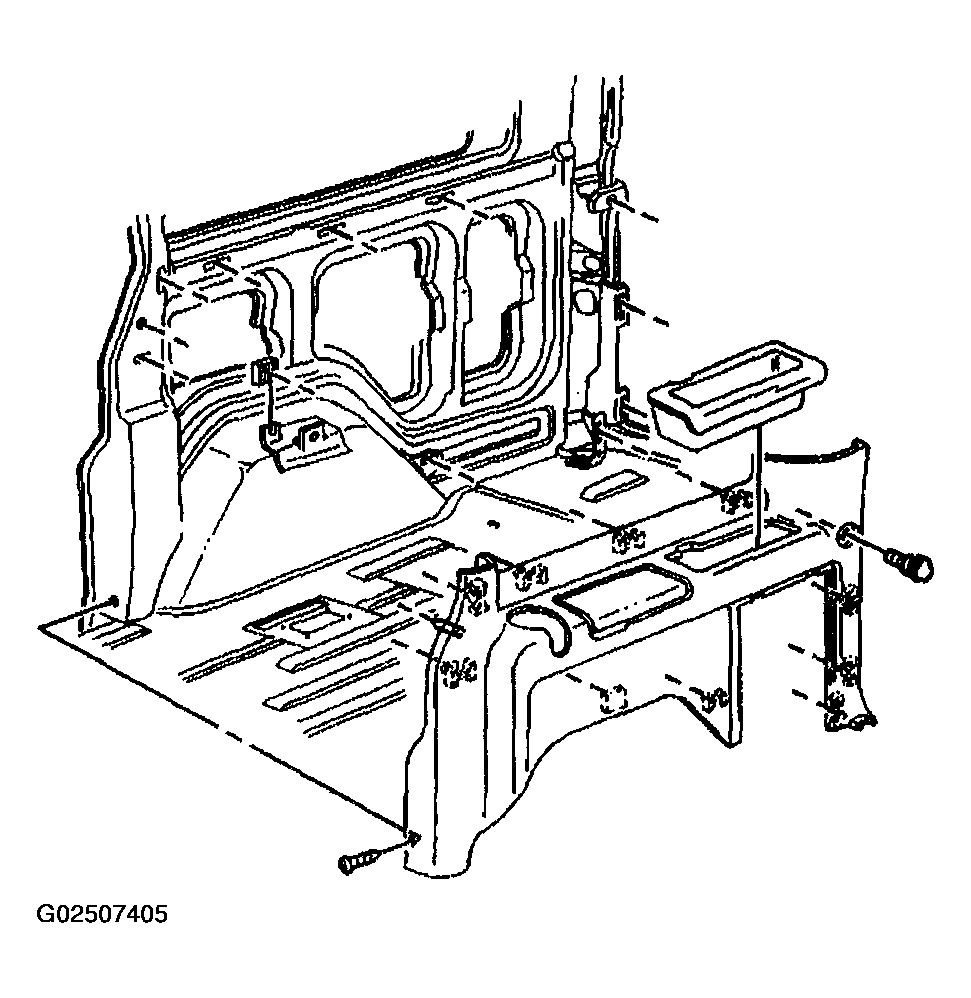

    Fig 3: Installing Storage Tray & Jack Storage Access Door
    G02507405Courtesy of GENERAL MOTORS CORP.
