Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear bucket seat. Refer to SEATS in Seats.
  2. Remove the seat belt bolt from the rear floor.
  3. Remove the body side trim panel.
    Fig 1: Removing Seat Belt Bolt From Rear Floor
    G02507386Courtesy of GENERAL MOTORS CORP.
  4. Remove the cover from the shoulder belt to expose the bolt.
  5. Remove the shoulder belt retaining bolt from the body side pillar.
  6. Remove the retractor bolt from the body side panel.

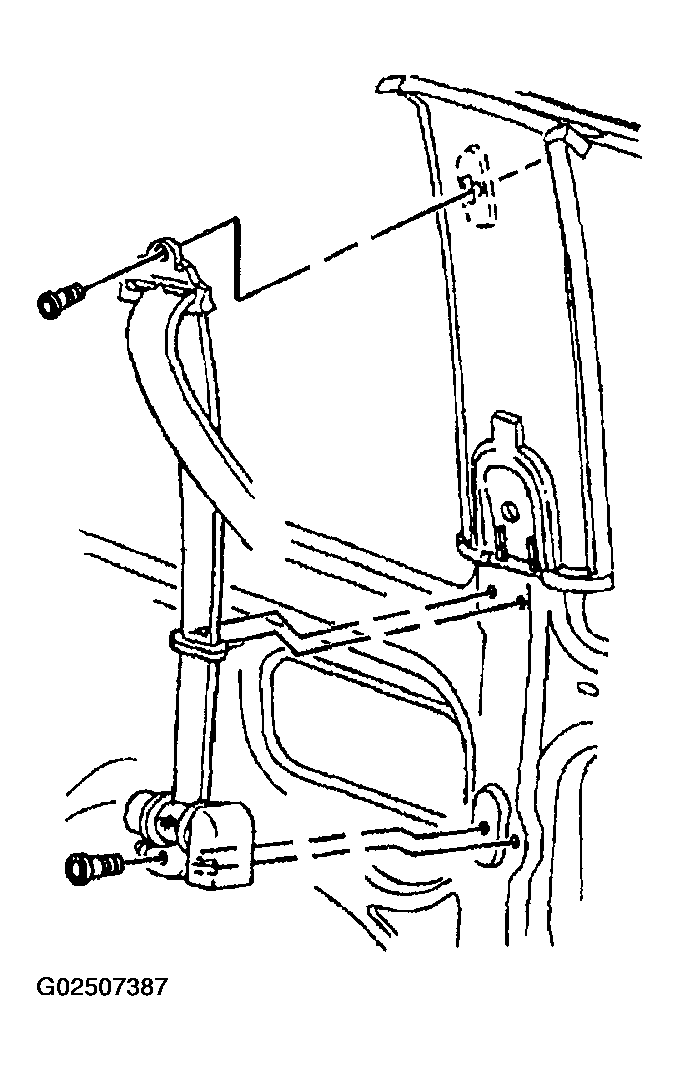

    Fig 2: Removing Retractor Bolt From Body Side Panel
    G02507387Courtesy of GENERAL MOTORS CORP.
