Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the retractor bolt to the body side panel.

    Tighten

    Tighten the retractor bolt to 53 N.m (39 ft lbs).

  2. Install the shoulder belt bolt to the body side pillar.

    Tighten

    Tighten the shoulder belt bolt to the body side pillar to 30 N.m (22 ft lbs).

  3. Install the cover to the shoulder belt.
  4. Install the body side trim panel.

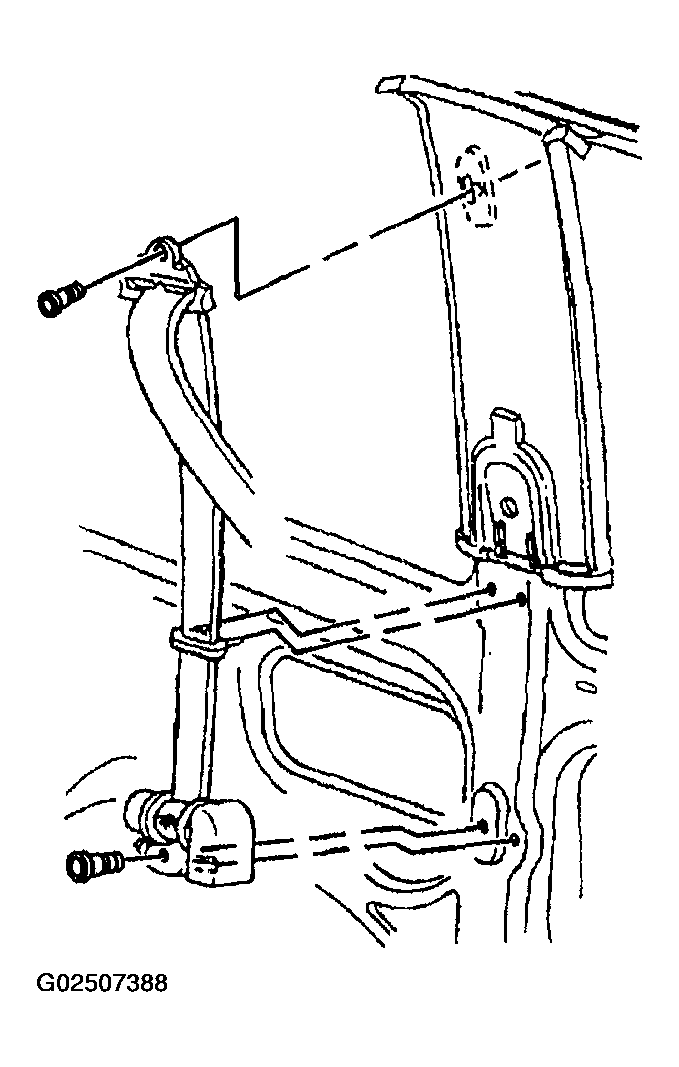

    Fig 1: Installing Retractor Bolt To Body Side Panel
    G02507388Courtesy of GENERAL MOTORS CORP.
  5. Install the seat belt bolt to the rear floor.

    Tighten

    Tighten the seat belt bolt to the rear floor to 53 N.m (39 ft lbs).

  6. Install the left rear bucket seat. Refer to SEATS .
    Fig 2: Installing Seat Belt Bolt To Rear Floor
    G02507389Courtesy of GENERAL MOTORS CORP.
