Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear storage trays. Squeeze the storage tray and pull upward to release.

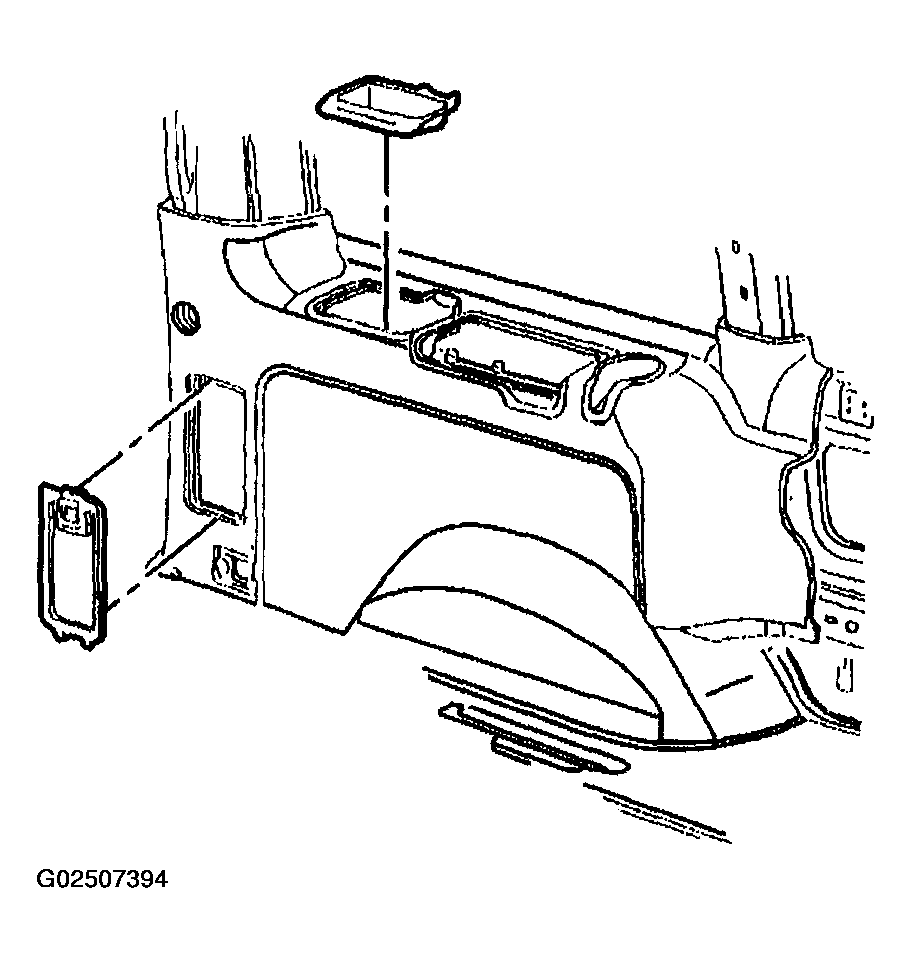

    Fig 1: Removing Storage Trays
    G02507394Courtesy of GENERAL MOTORS CORP.
  2. Remove the shoulder belt cover to expose the bolt.
  3. Remove the shoulder belt retaining bolt from the bracket.

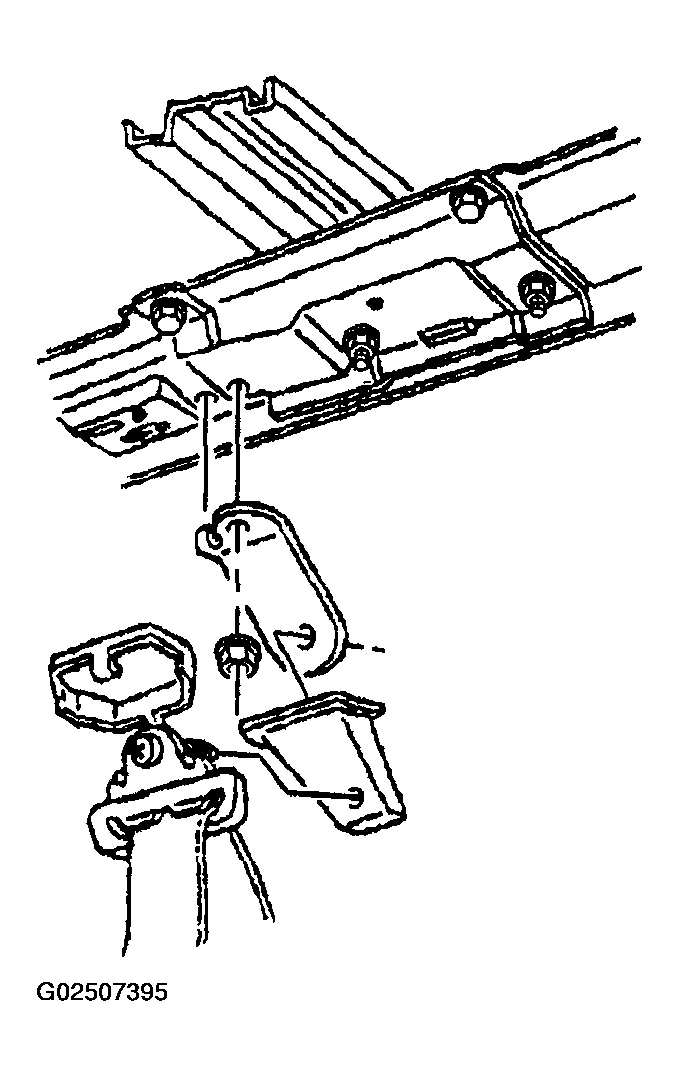

    Fig 2: Removing Shoulder Belt Retaining Bolt From Bracket (No. 2 Left Rear)
    G02507395Courtesy of GENERAL MOTORS CORP.
  4. Remove the retractor retaining bolt.
  5. Remove the retractor from the vehicle.

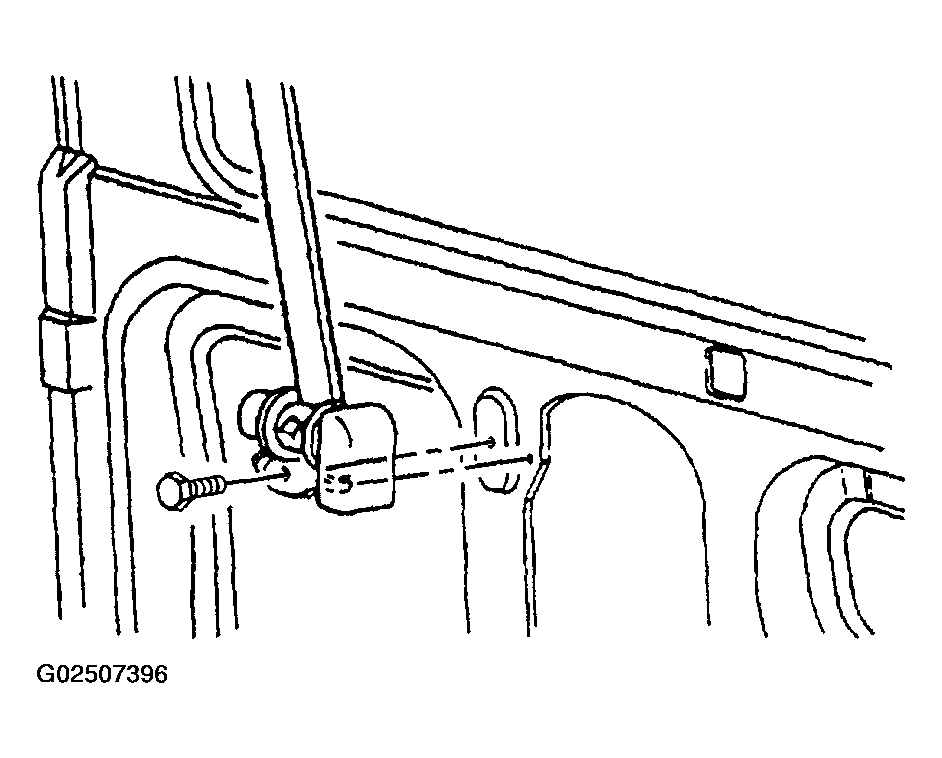

    Fig 3: Removing Retractor Retaining Bolt (No. 2 Left Rear)
    G02507396Courtesy of GENERAL MOTORS CORP.
