Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install the retractor to the vehicle.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the retractor retaining bolt.
Tighten

Tighten the retractor retaining bolt to 53 N.m (39 ft lbs).

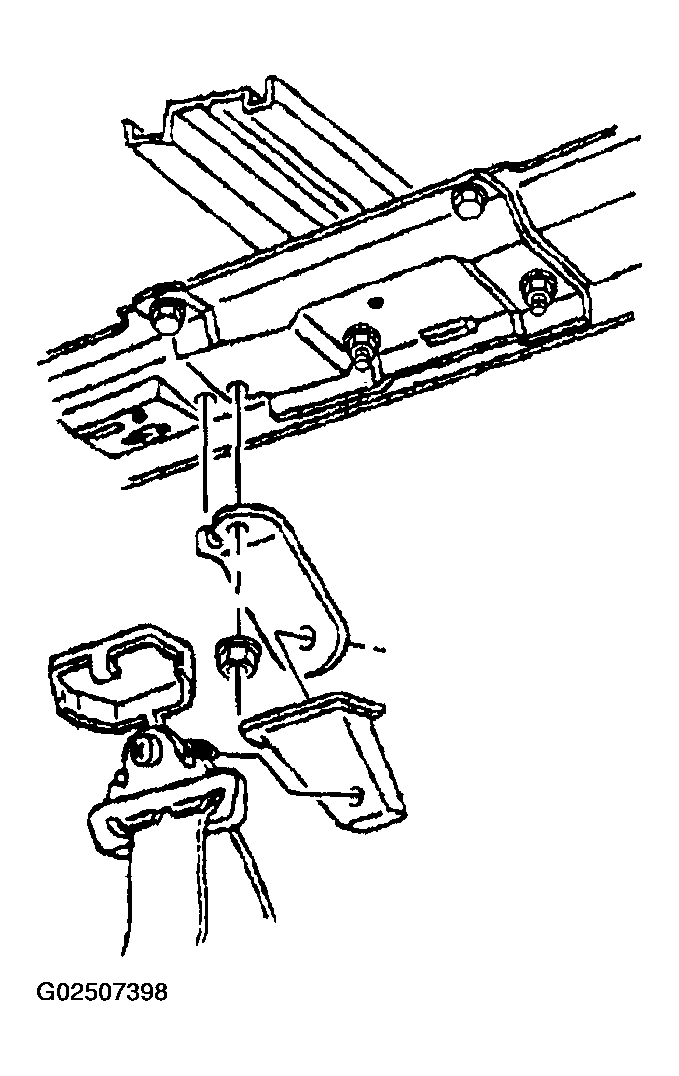

Fig 1: Installing Retractor Retaining Bolt (No. 2 Left Rear)
Courtesy of GENERAL MOTORS CORP.
Install the shoulder belt retaining bolt to the bracket.
Tighten

Tighten the shoulder belt retaining bolt to the bracket to 35 N.m (26 ft lbs).
Install the retractor retaining bolt.
Tighten

Tighten the retractor retaining bolt to 53 N.m (39 ft lbs).

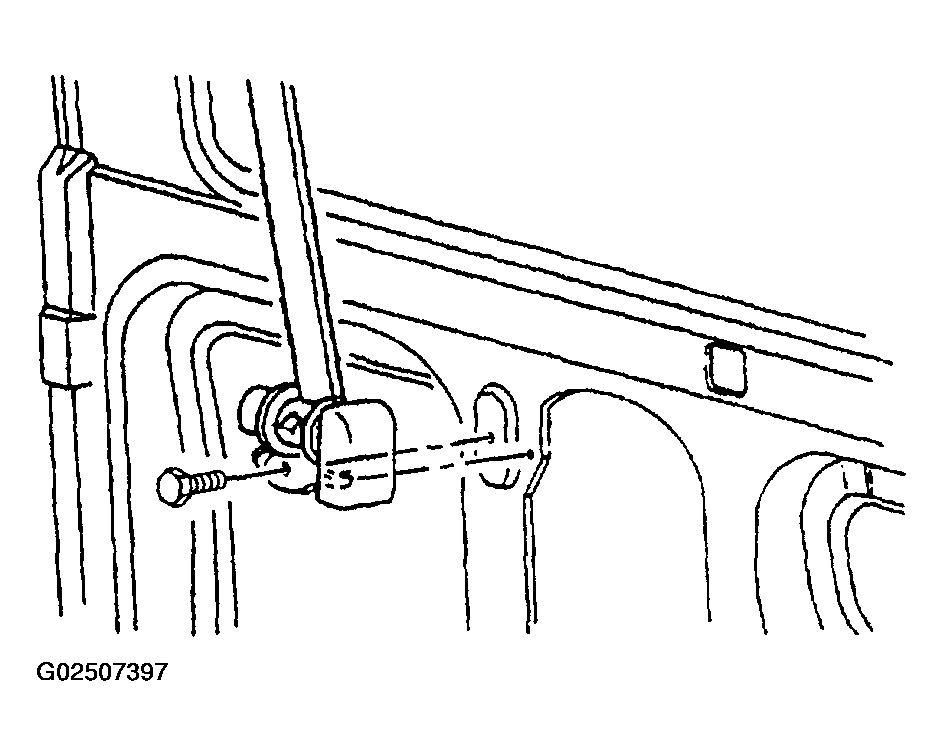

Fig 2: Installing Shoulder Belt Retaining Bolt To Bracket (No. 2 Left Rear)
Courtesy of GENERAL MOTORS CORP.
Install the storage trays. Squeeze the storage tray together. Press the storage tray into place.

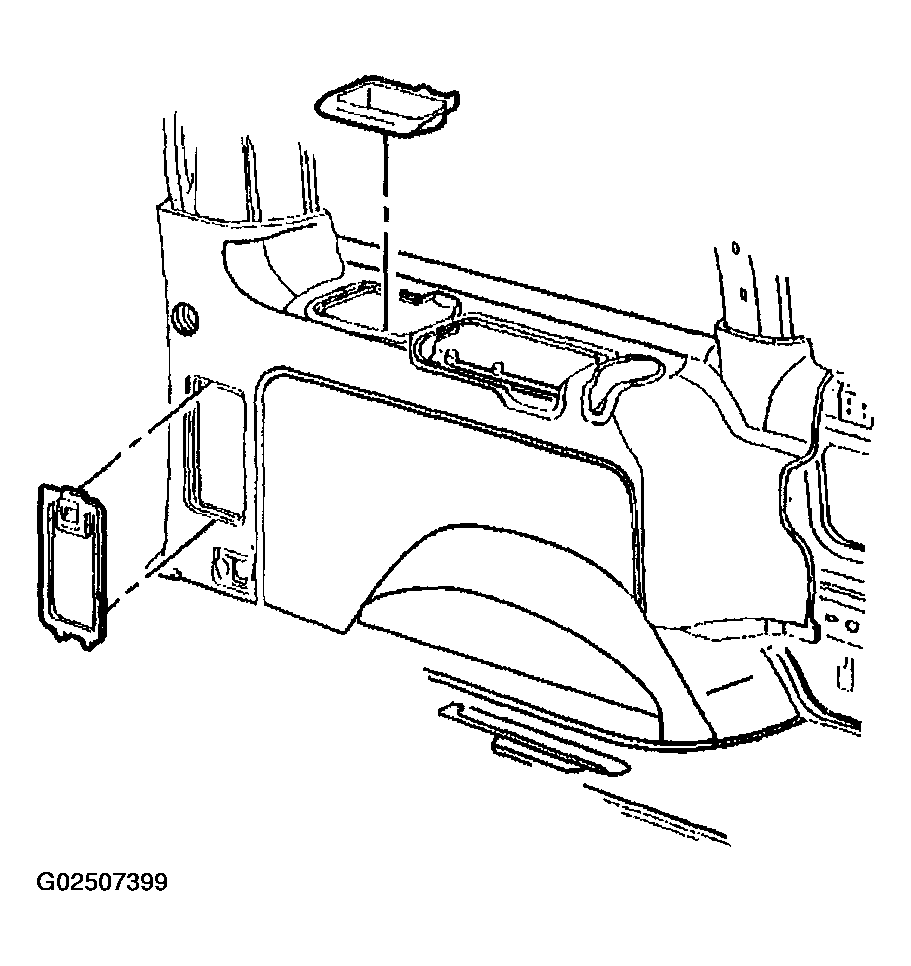

Fig 3: Installing Storage Trays
Courtesy of GENERAL MOTORS CORP.
