Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to SEATS
  2. Remove the seat belt latch retaining bolts from the seat frame.
    Fig 1: Removing Rear Center Seat Belt Buckle & Latch
    G02507374Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt latch retaining bolts from the seat frame.
  4. Remove the seat belt latch through the seat back.
  5. Remove the seat belt latch from the vehicle.

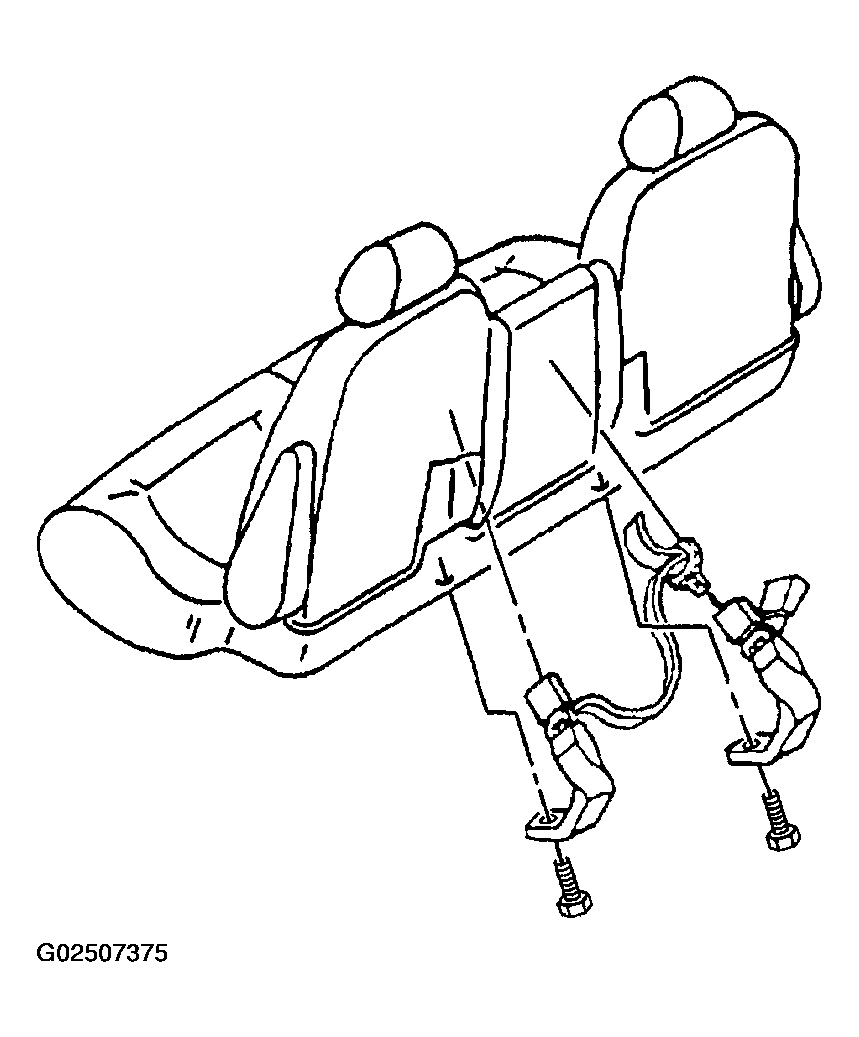

    Fig 2: Removing Rear Center Seat Belt Buckle Through Seat
    G02507375Courtesy of GENERAL MOTORS CORP.
