Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt latch to the vehicle through the seat back.

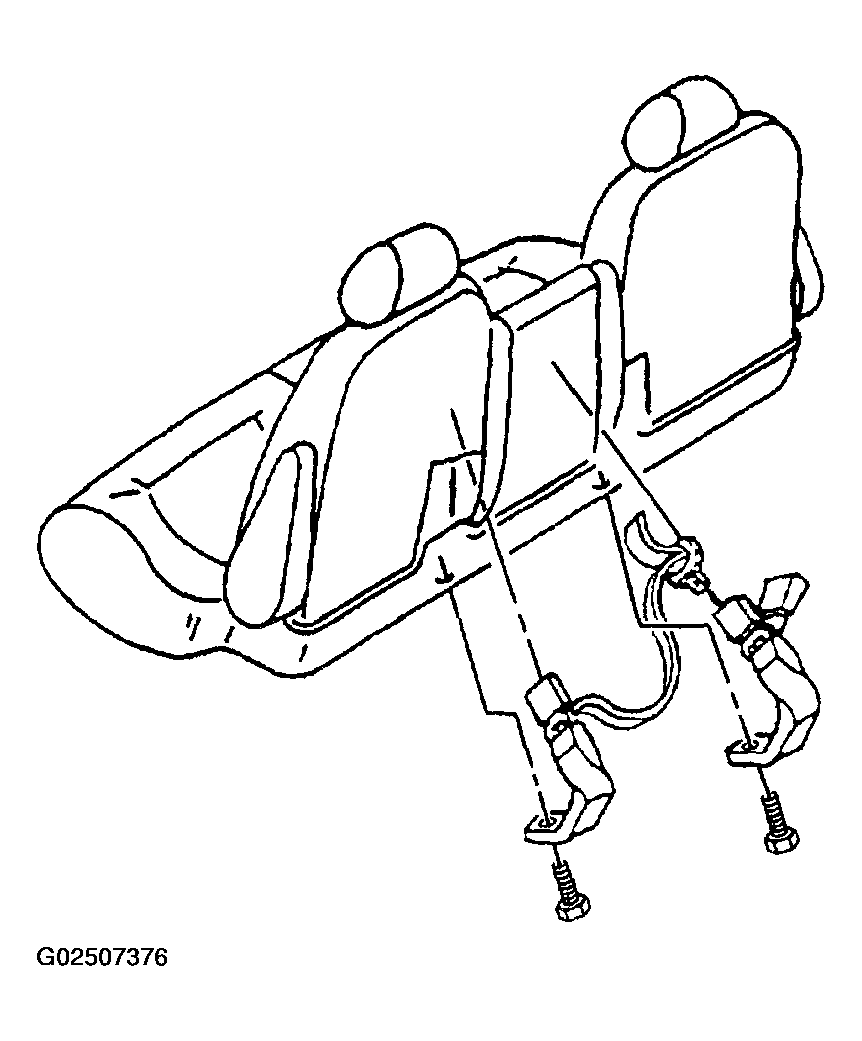

    Fig 1: Installing Rear Center Seat Belt Buckle Through Seat
    G02507376Courtesy of GENERAL MOTORS CORP.
  2. Install the seat belt latch to the vehicle through the seat back.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts that hold the seat belt latch to the seat frame.

    Tighten

    Tighten the seat belt latch bolts to 53 N.m (39 ft lbs).

  4. Install the rear seat to the vehicle. Refer to SEATS
    Fig 2: Installing Rear Center Seat Belt Buckle & Latch
    G02507377Courtesy of GENERAL MOTORS CORP.
