Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat form the vehicle. Refer to SEATS
  2. Remove the seat belt buckle and latch retaining bolt from the seat frame.
    Fig 1: Removing Seat Belt Buckle & Latch (No. 2 Rear)
    G02507370Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt buckle and latch through the seat back.

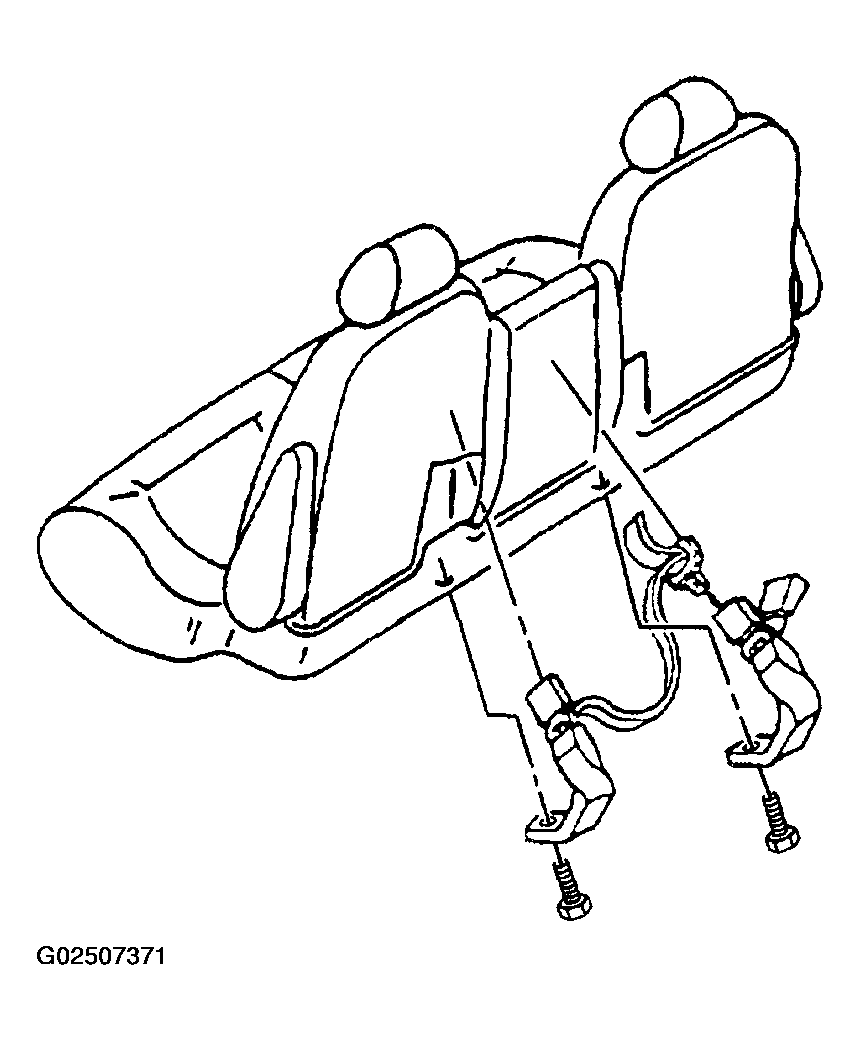

    Fig 2: Removing Seat Belt Buckle Through Seat (No. 2 Rear)
    G02507371Courtesy of GENERAL MOTORS CORP.
