Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle and latch through the seat back.

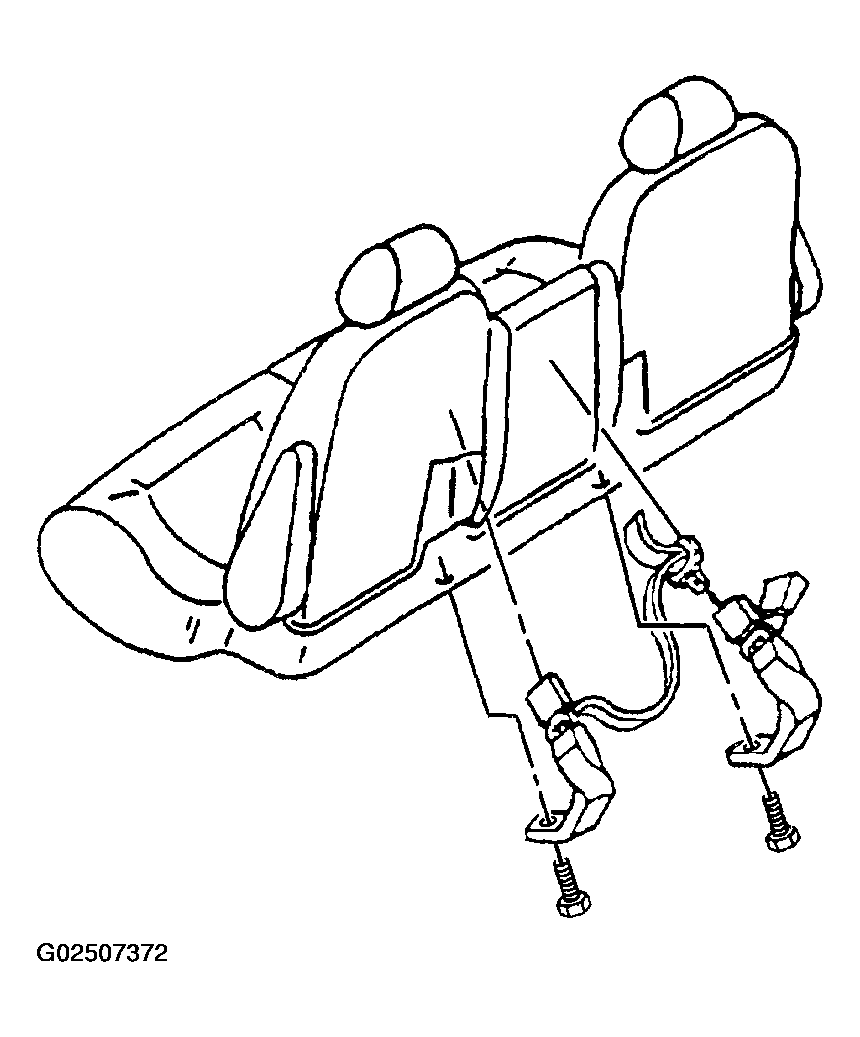

    Fig 1: Installing Seat Belt Buckle Through Seat (No. 2 Rear)
    G02507372Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat belt buckle and latch retaining bolt to the seat frame.

    Tighten

    Tighten the seat belt buckle and latch retaining bolt to 53 N.m (39 ft lbs).

  3. Install the rear bench seat in the vehicle. Refer to SEATS
    Fig 2: Installing Seat Belt Buckle & Latch (No. 2 Rear)
    G02507373Courtesy of GENERAL MOTORS CORP.
