Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt buckle latch bolt from the side of the riser.
  2. Remove the seat belt buckle latch. The seat does not have to be removed from the vehicle.

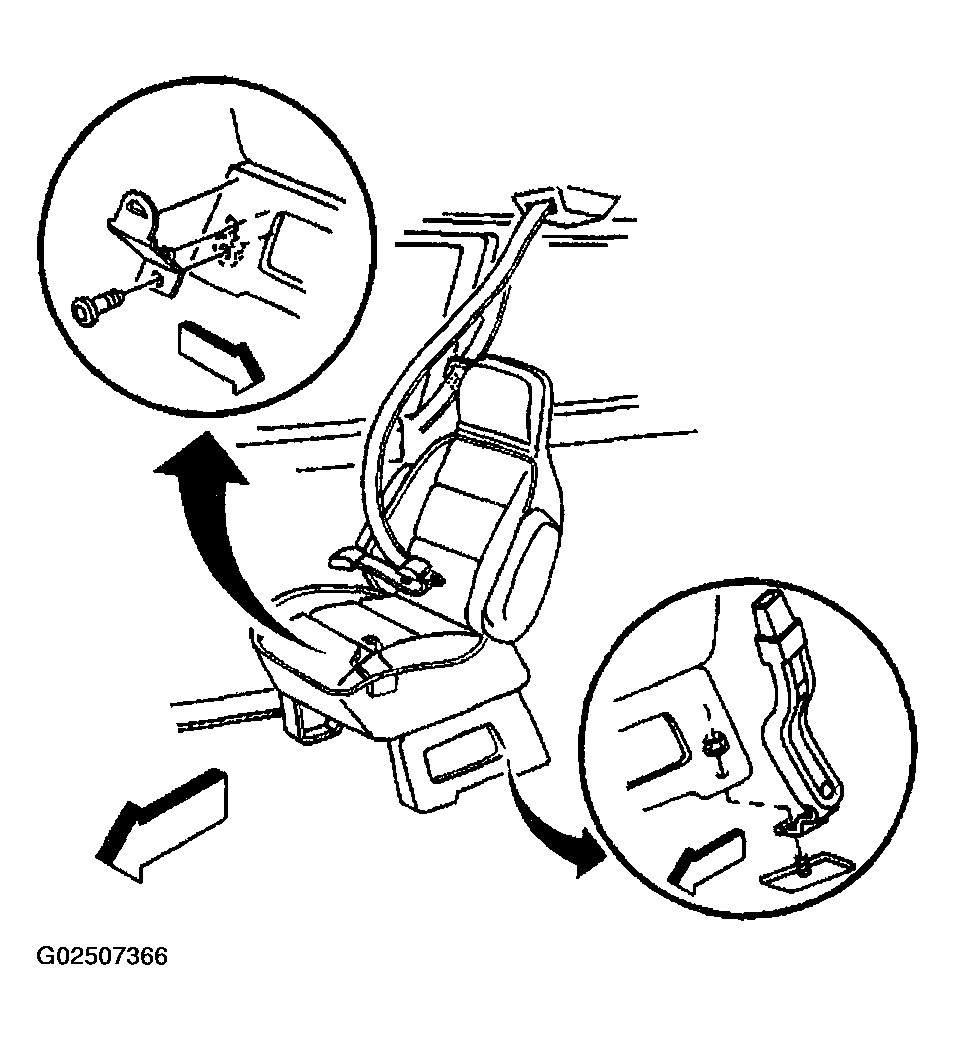

    Fig 1: Removing Rear Seat Belt Buckle & Latch (RPO ZP7)
    G02507366Courtesy of GENERAL MOTORS CORP.
