Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle latch to the side of the riser.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat belt buckle latch bolt.

    Tighten

    Tighten the seat belt buckle latch bolt to the riser to 35 N.m (26 ft lbs).

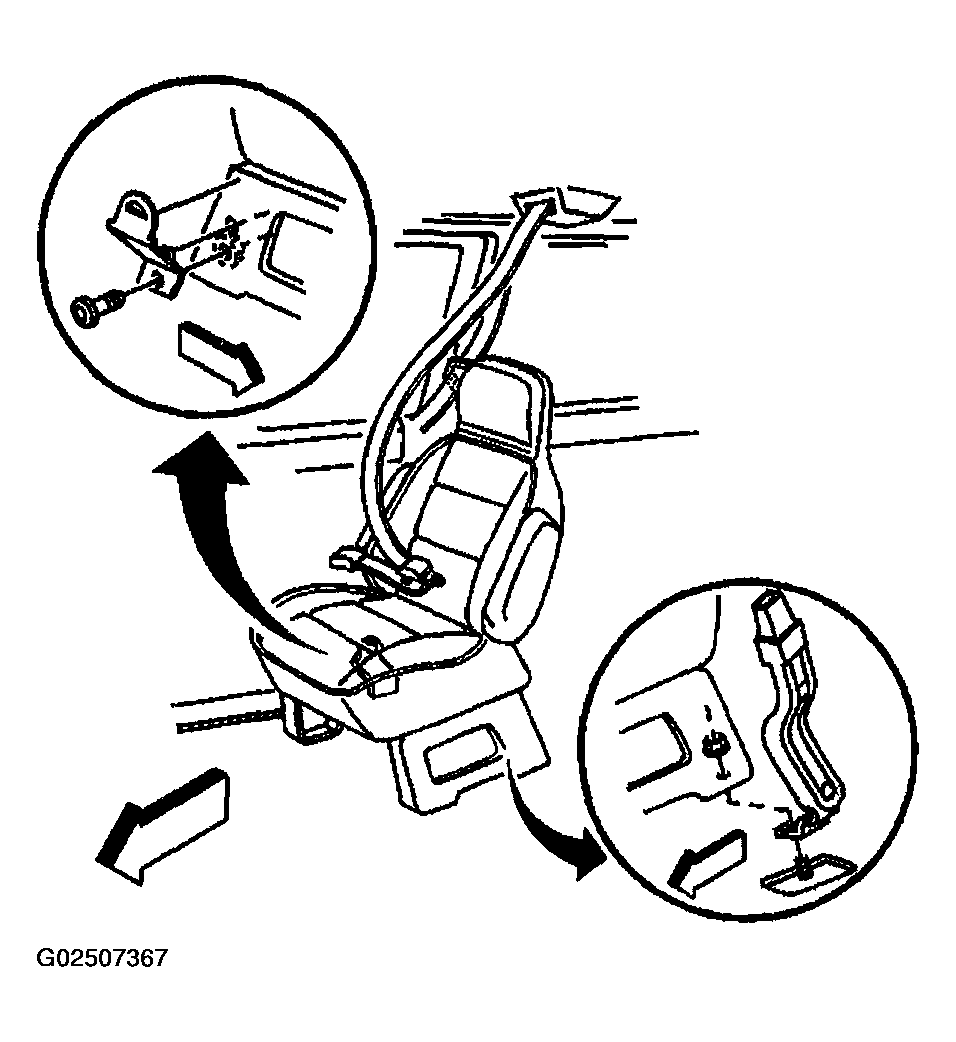

    Fig 1: Installing Rear Seat Belt Buckle & Latch (RPO ZP7)
    G02507367Courtesy of GENERAL MOTORS CORP.
