Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt latch.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat belt latch nut.

    Tighten

    Tighten the seat belt latch nut to 53 N.m (39 ft lbs).

  3. Install the seat cover and re-hog ring it back in place.
  4. Install the rear bench seat to the vehicle. Refer to SEATS

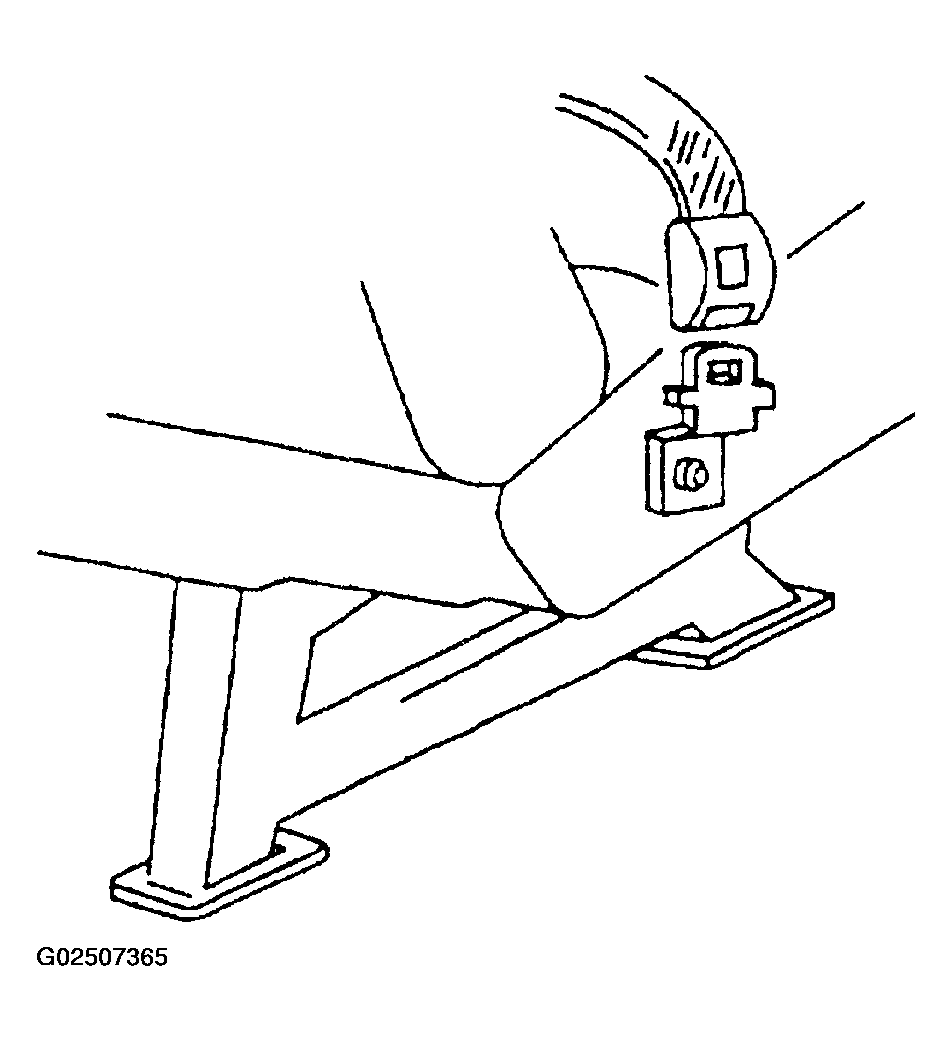

    Fig 1: Installing Rear Seat Belt Buckle & Latch (RPO ZP5)
    G02507365Courtesy of GENERAL MOTORS CORP.
