Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle.
  2. Install the seat belt buckle to the floor stud.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the nuts located at the base of the seat riser.

    Tighten

    Tighten the bucket seat to the floor to 35 N.m (26 ft lbs).

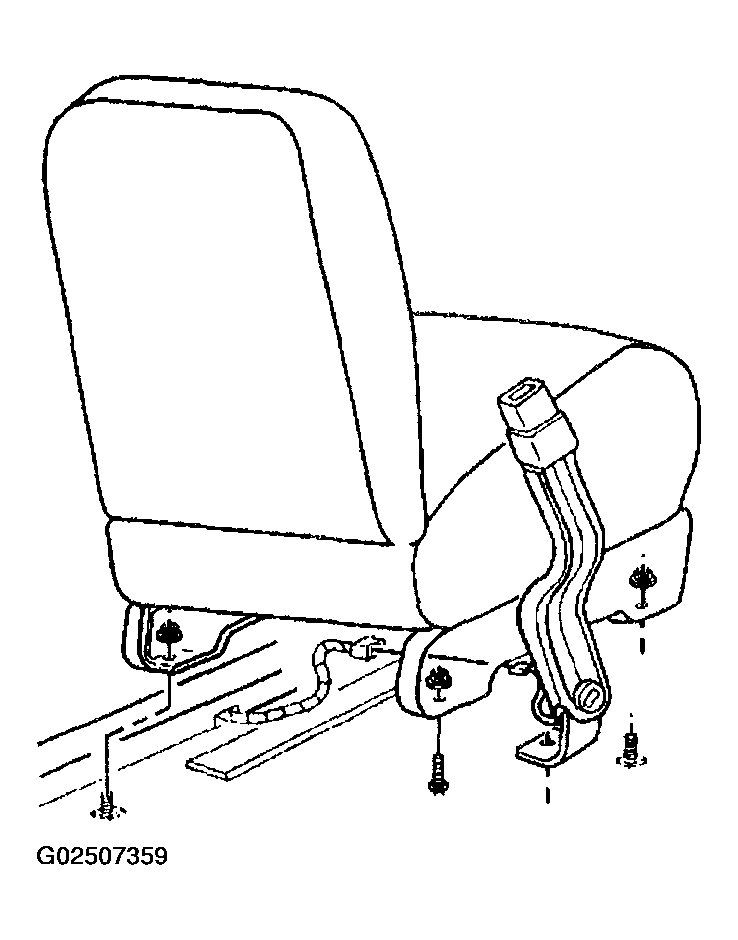

    Fig 1: Installing Rear Seat Belt Buckle
    G02507359Courtesy of GENERAL MOTORS CORP.
