Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts located on the inside of the seat riser.
  2. Remove the seat belt buckle from the floor stud by lifting upward on the seat. The seat does not have to be removed from the vehicle.
  3. Disconnect the seat belt buckle warning lamp electrical connector.
  4. Remove the seat belt buckle.

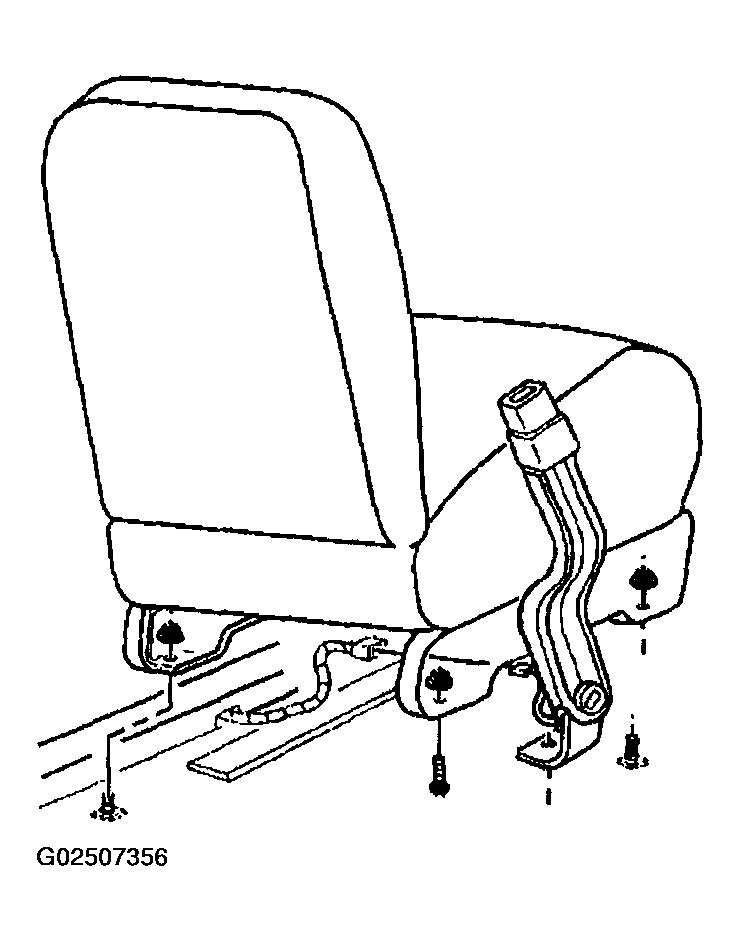

    Fig 1: Removing Front Seat Belt Buckle
    G02507356Courtesy of GENERAL MOTORS CORP.
