Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bench seat from the vehicle. Refer to SEATS
  2. Remove the seat belt buckle retaining bolt from the seat frame.
    Fig 1: Removing Rear Center Seat Belt Buckle From Seat Frame
    G02507360Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt buckle through the seat back.

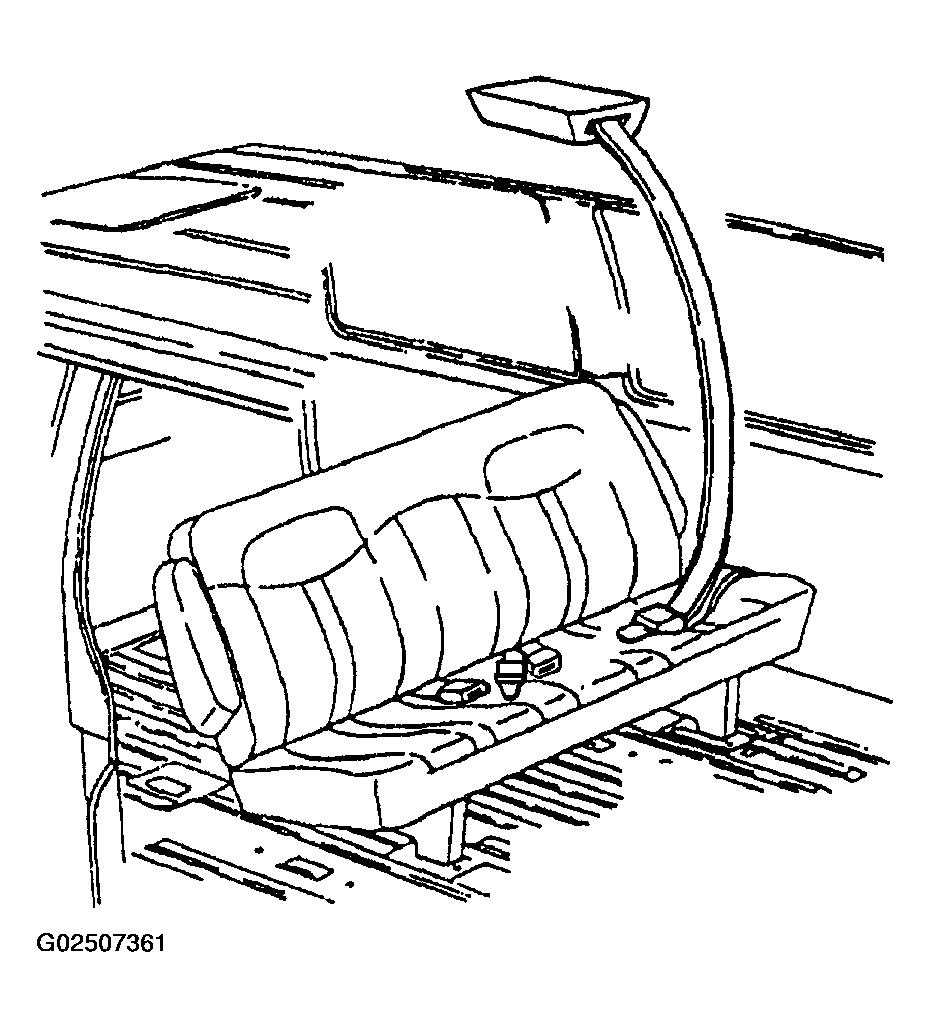

    Fig 2: Removing Rear Center Seat Belt Buckle Through Seat
    G02507361Courtesy of GENERAL MOTORS CORP.
