Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle through the seat back.

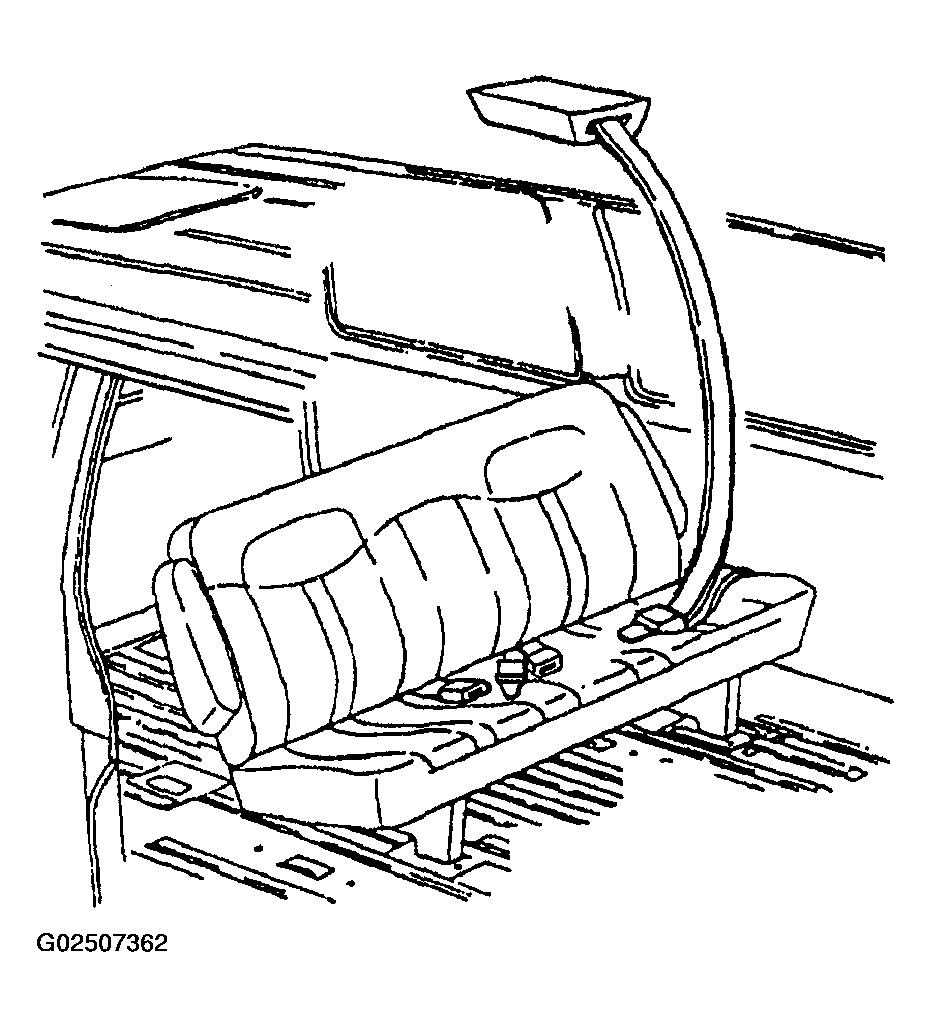

    Fig 1: Installing Rear Center Seat Belt Buckle Through Seat
    G02507362Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat belt buckle retaining bolt to the seat frame.

    Tighten

    Tighten the seat belt buckle bolt to the seat frame to 53 N.m (39 ft lbs).

  3. Install the rear bench seat to the vehicle. Refer to SEATS
    Fig 2: Installing Rear Center Seat Belt Buckle To Seat Frame
    G02507363Courtesy of GENERAL MOTORS CORP.
