Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pivot the tilt lever back and forth, while pulling the lever from the steering column.
  2. Remove the tilt lever from the steering column.

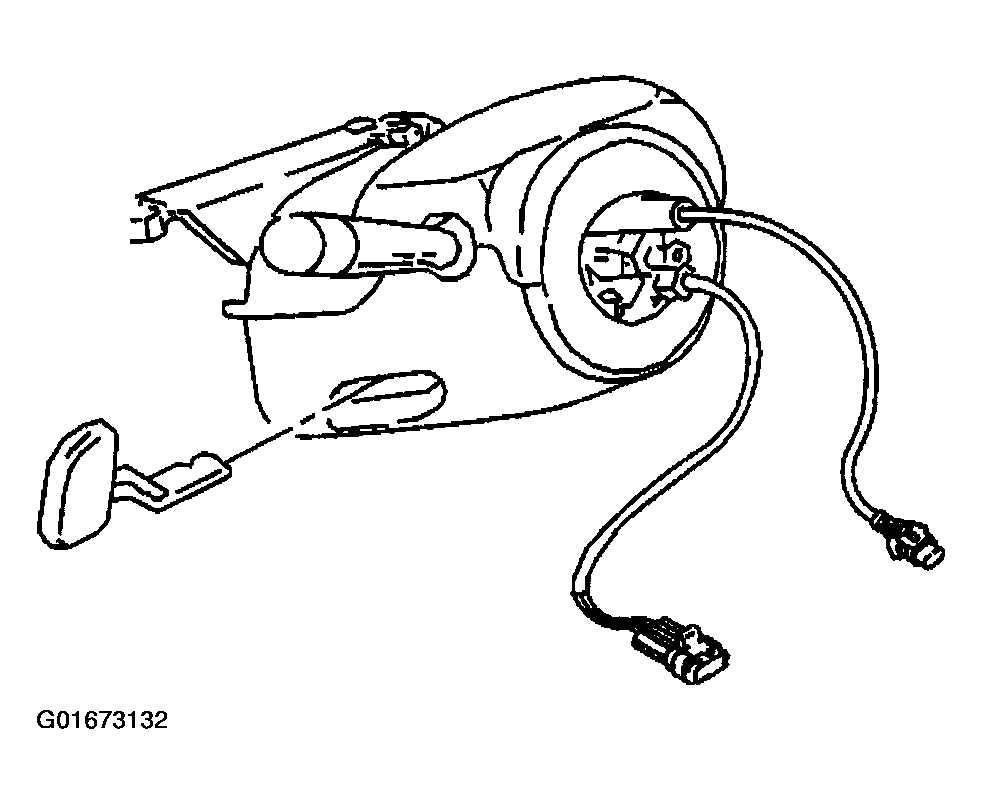

    Fig 1: Removing Tilt Lever
    G01673132Courtesy of GENERAL MOTORS CORP.
