Front Lift Pads

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

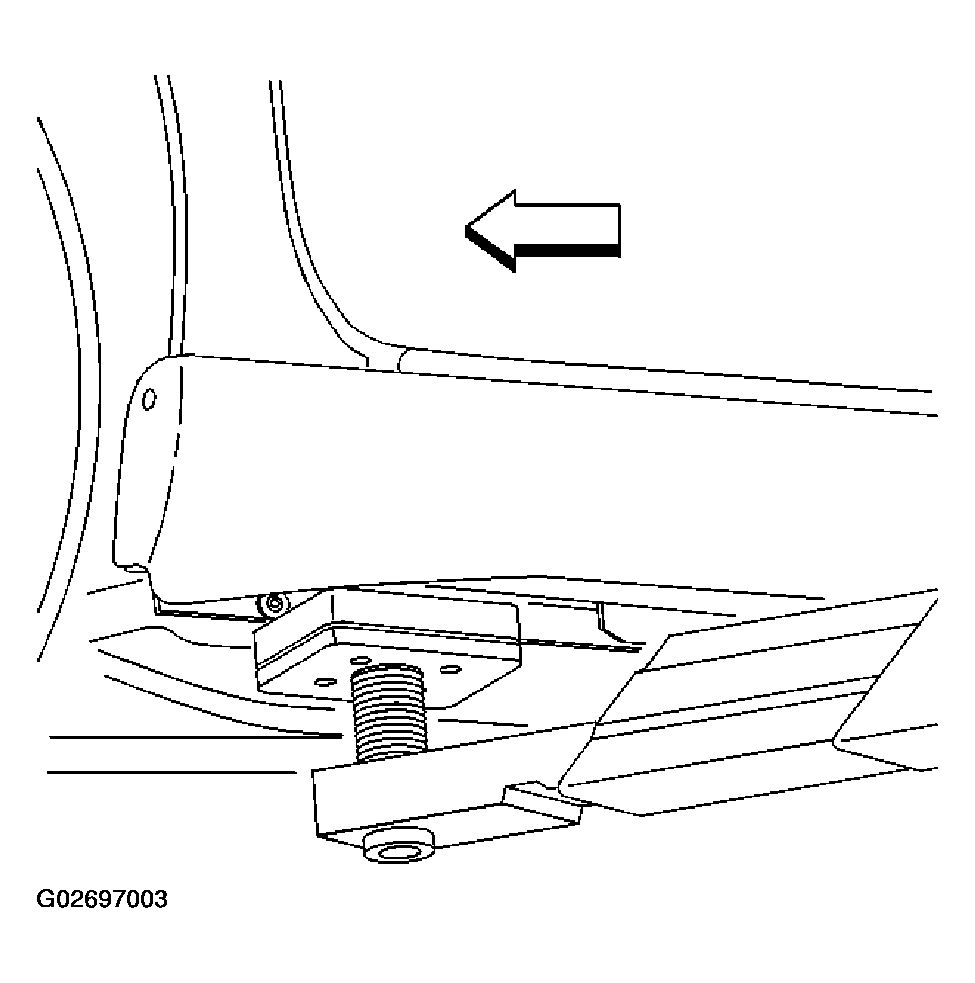

Fig 1: Front Lift Pads
G02697003Courtesy of GENERAL MOTORS CORP.

When lifting the vehicle with a frame-contact lift, place the front lift pads at the front pinchweld flanges.
