Under The Front Frame

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

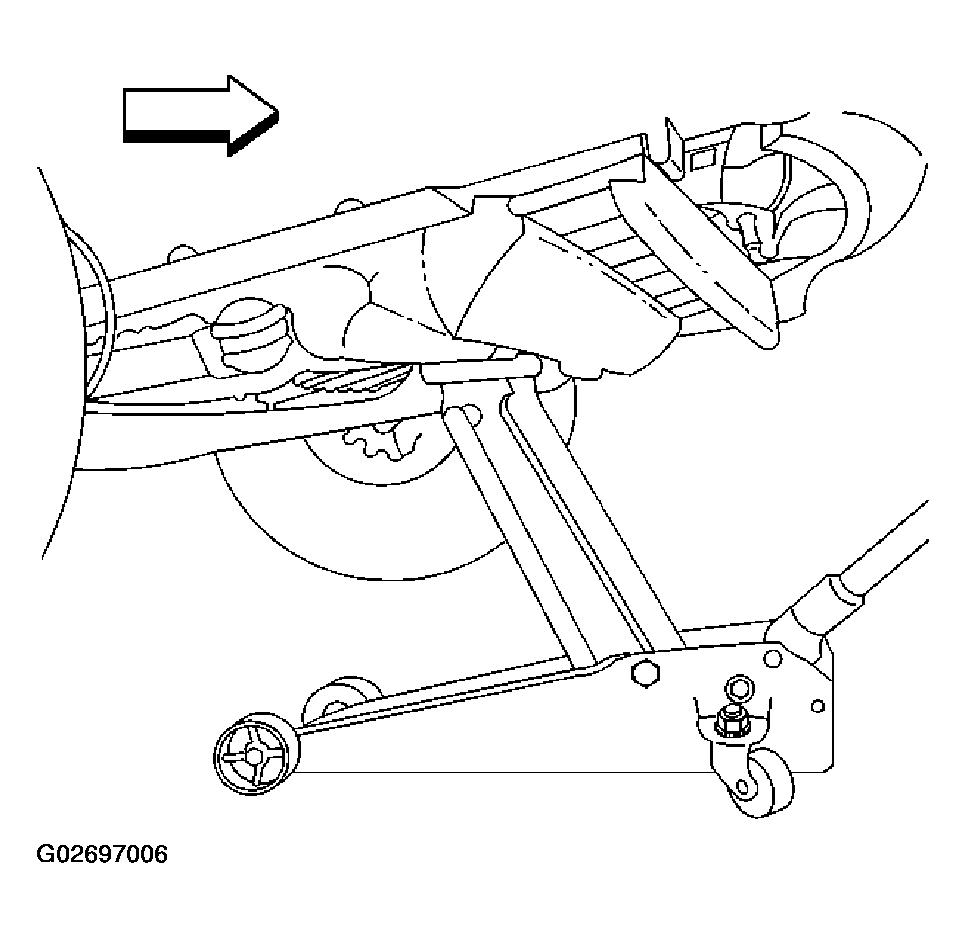

Fig 1: Lifting Under The Front Frame
G02697006Courtesy of GENERAL MOTORS CORP.

When lifting the front of the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame.
