Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount to the engine mount bracket.
NOTE: Refer to FASTENER NOTICE .
Install the engine mount upper nuts.
Tighten

Tighten the engine mount upper nuts to 47 N.m (35 lb ft).

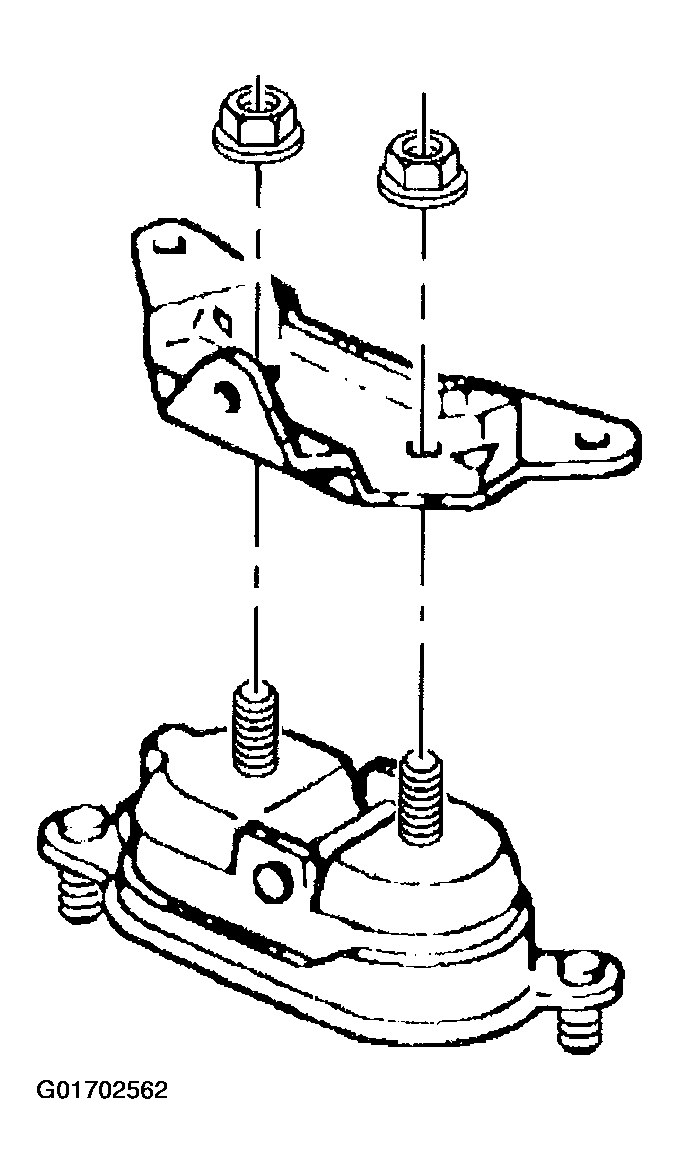

Fig 1: Engine Mount & Bracket
Courtesy of GENERAL MOTORS CORP.
Install the engine mount bracket with the engine mount to the oil pan.
Install the engine mount bracket-to-oil pan bolts.
Tighten

Tighten the engine mount bracket bolts to 58 N.m (43 lb ft).
Lower the vehicle.
Lower the engine.
Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

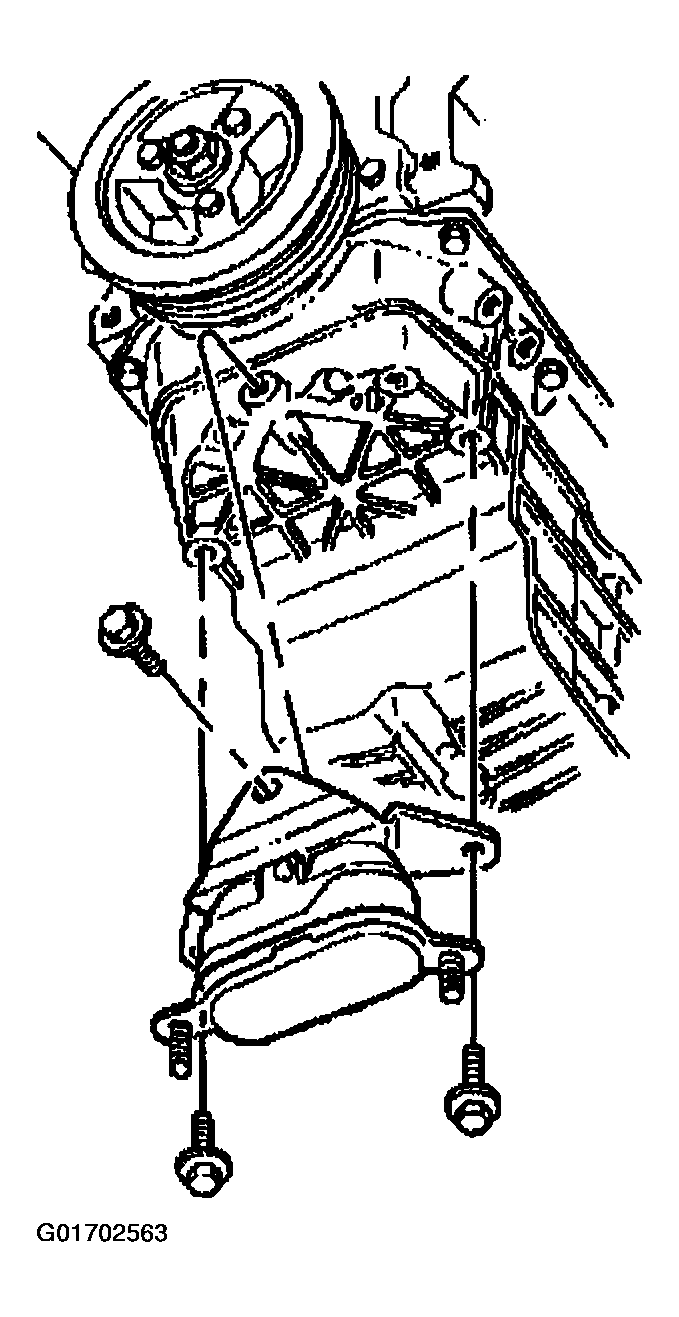

Fig 2: Installing Engine Mount & Bracket
Courtesy of GENERAL MOTORS CORP.
Install the engine mount lower nuts.
Tighten

Tighten the engine mount lower nuts to 43 N.m (32 lb ft).
Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
Install the right front wheel and tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Connect the three-way catalytic converter pipe to the right (rear) exhaust manifold. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L) or CATALYTIC CONVERTER REPLACEMENT (3.8L) .
Lower the vehicle.
Remove the engine support fixture.
Install the engine mount struts. Refer to Engine Mount Strut Replacement .
Install the throttle body air inlet duct.
Connect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

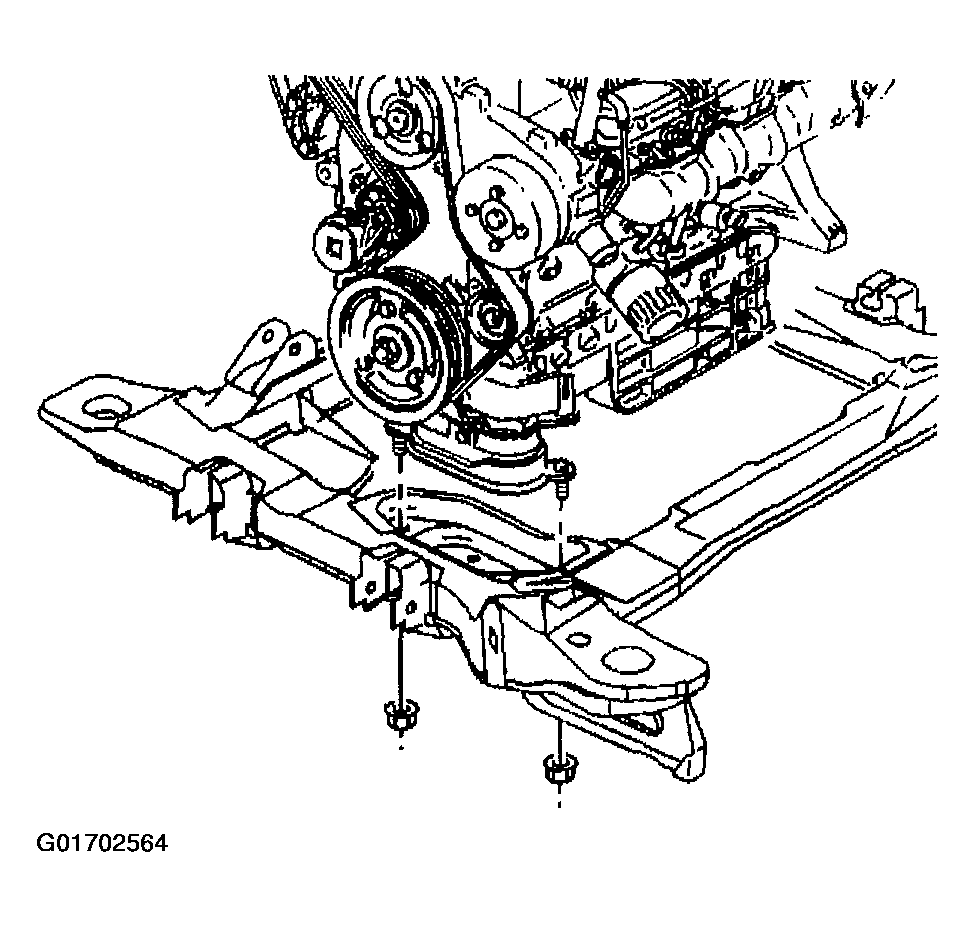

Fig 3: Engine Mount Lower Nuts
Courtesy of GENERAL MOTORS CORP.
