Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side stowage compartment covers.
  2. Remove the rear center stowage compartment cover.
    Fig 1: Rear Center Stowage Compartment Cover
    G01451834Courtesy of GENERAL MOTORS CORP.
  3. Remove the corner carpet trim panels. Refer to TRIM PANEL CARPET REPLACEMENT - REAR CORNER (COUPE)  or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (CONVERTIBLE)  or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (HARDTOP)  .
  4. Remove the center carpet trim panel.

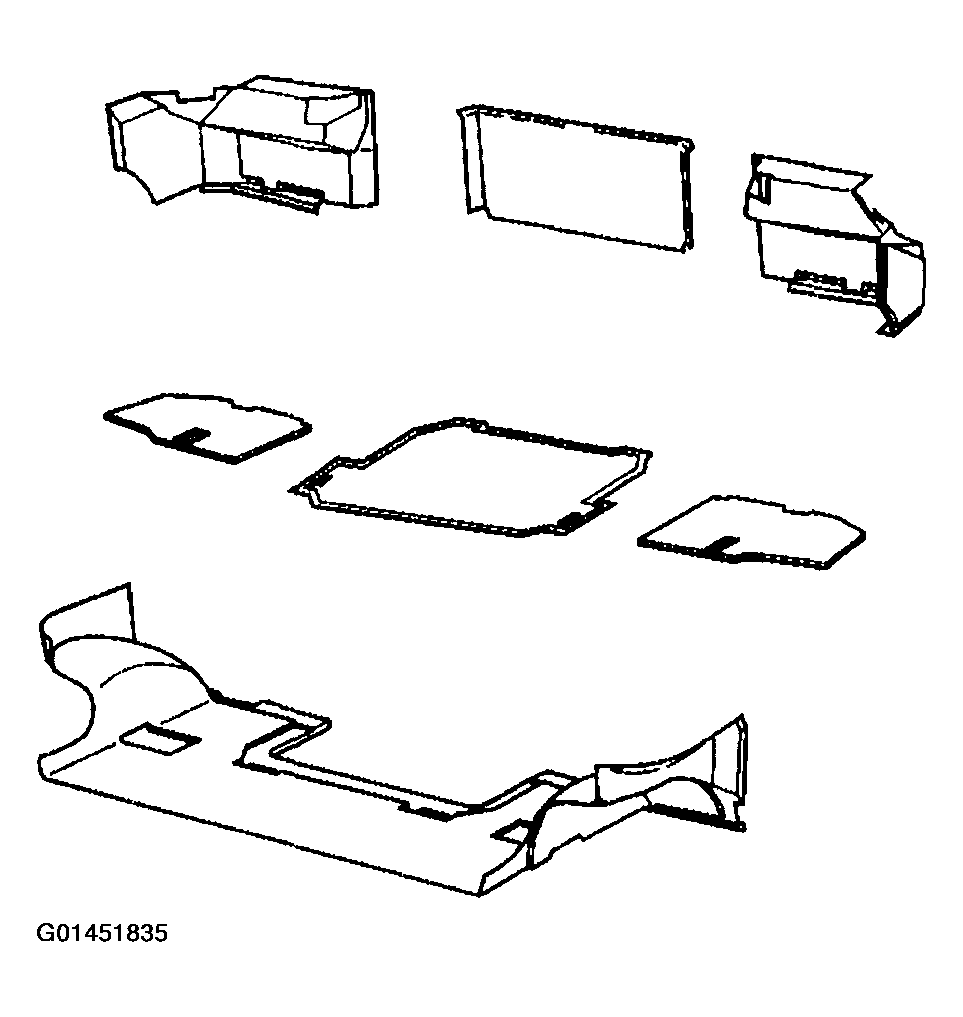

    Fig 2: Center Carpet Trim Panel
    G01451835Courtesy of GENERAL MOTORS CORP.
