Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center carpet trim panel.
  2. Install the corner carpet trim panels. Refer to TRIM PANEL CARPET REPLACEMENT - REAR CORNER (COUPE)  or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (CONVERTIBLE)  or TRIM PANEL CARPET REPLACEMENT - REAR CORNER (HARDTOP) .

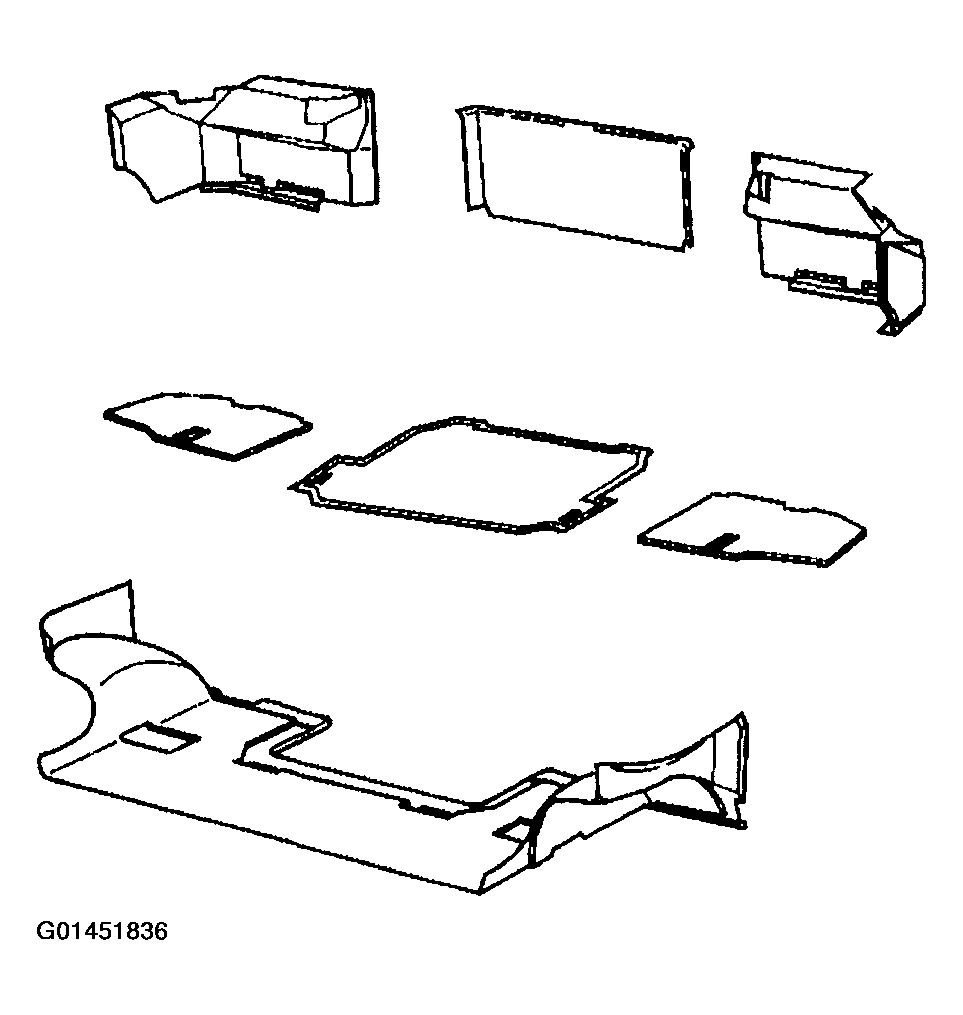

    Fig 1: Center Carpet Trim Panel
    G01451836Courtesy of GENERAL MOTORS CORP.
  3. Install the rear center compartment cover.
  4. Install the rear side stowage compartment covers.
    Fig 2: Rear Center Compartment Cover
    G01451837Courtesy of GENERAL MOTORS CORP.
