Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side rail weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FOLDING TOP (FRONT AND CENTER SIDE RAILS)  or WEATHERSTRIP REPLACEMENT - FOLDING TOP (REAR SIDE RAIL)  or WEATHERSTRIP REPLACEMENT - FOLDING TOP (NUMBER FIVE BOW) .
  2. Remove the screws attaching the retainer to the side rail weatherstrip.
  3. Remove the retainer.

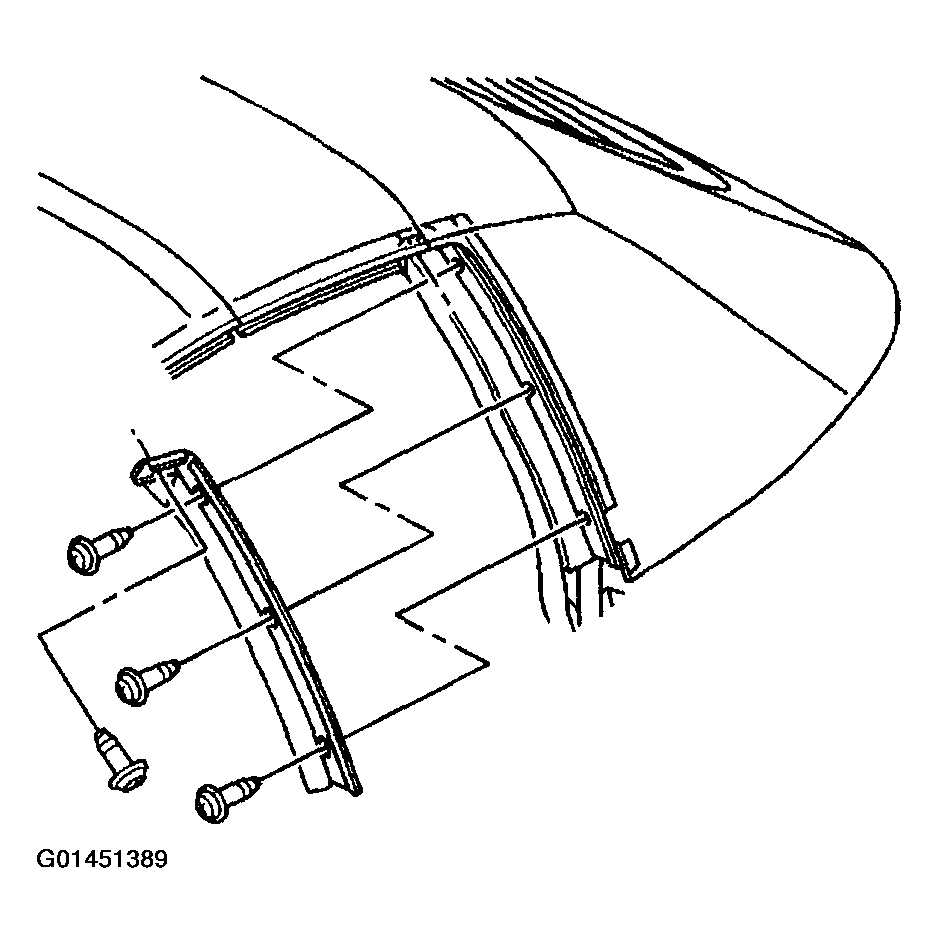

    Fig 1: Screws Attaching Retainer To Side Rail Weatherstrip
    G01451389Courtesy of GENERAL MOTORS CORP.
