Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the #1 bow and the #5 bow up.

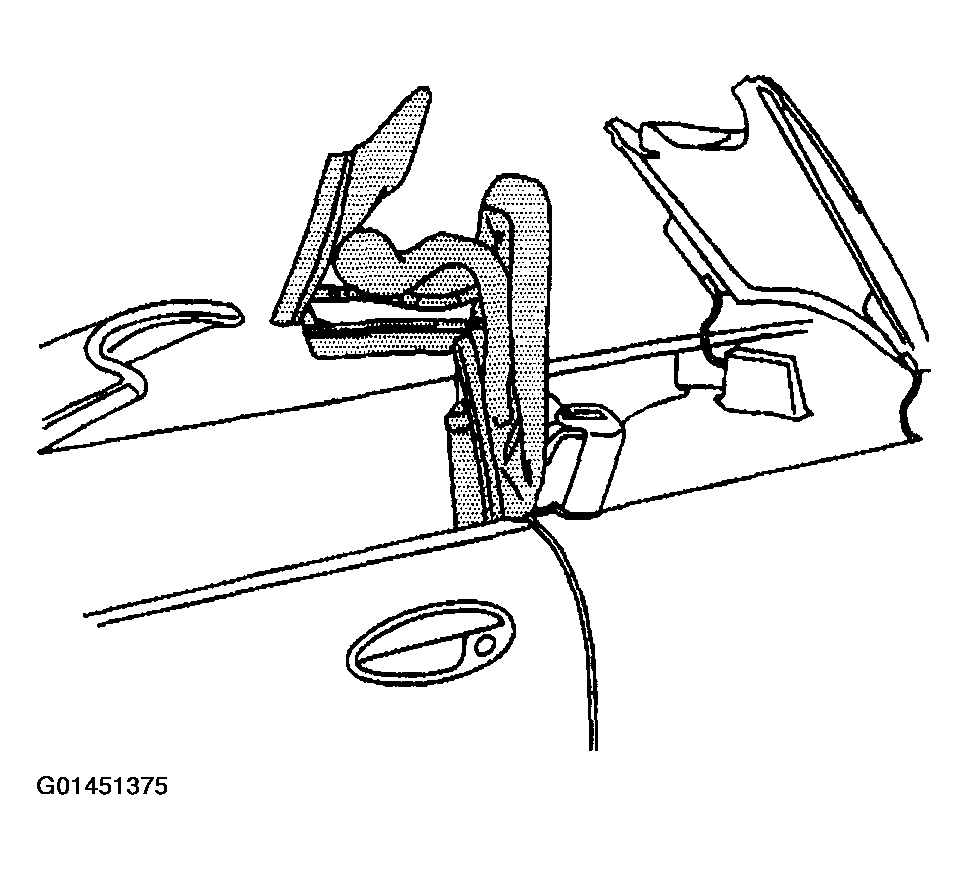

    Fig 1: Positioning #1 Bow & #5 Bow Up
    G01451375Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainers from the bottom of the rear side rail weatherstrip.
  3. Remove the weatherstrip.
  4. Clean the adhesive from the mounting surface using 3M™ P/N 8984 or equivalent.
    Fig 2: Push-In Retainers From Bottom Of Rear Side Rail Weatherstrip
    G01451376Courtesy of GENERAL MOTORS CORP.
