Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the folding top with the #1 bow and the #5 bow up, and open the stowage compartment.

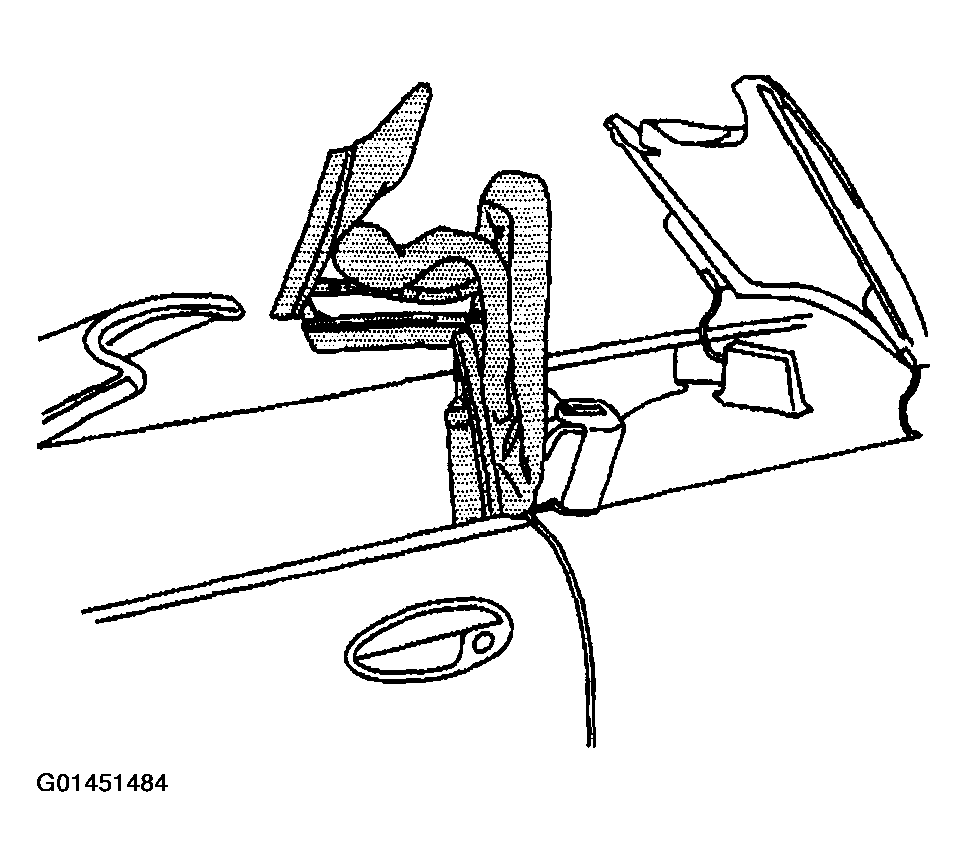

    Fig 1: Positioning Folding Top With #1 Bow & #5 Bow Up
    G01451484Courtesy of GENERAL MOTORS CORP.
  2. Remove the glare cover screws at each end of the #5 bow (5).

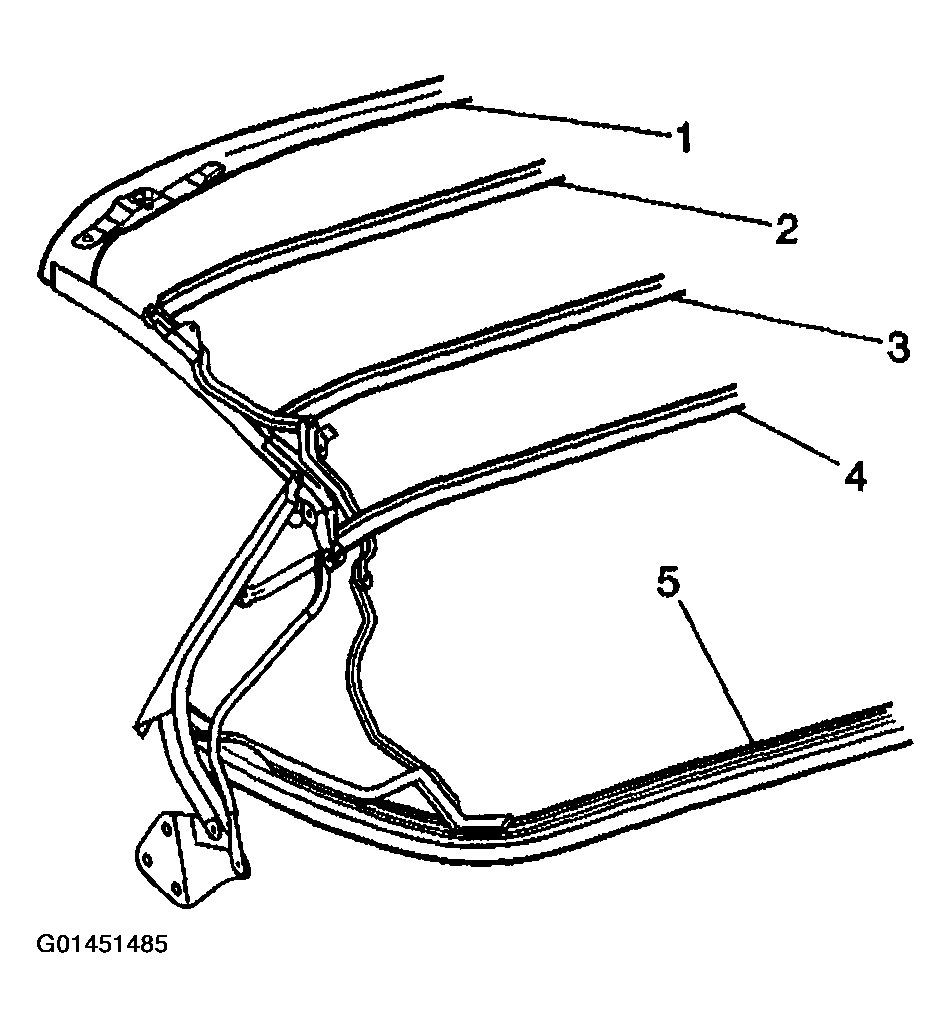

    Fig 2: Glare Cover Screws At Each End Of #5 Bow
    G01451485Courtesy of GENERAL MOTORS CORP.
  3. Remove the elastic strap screws from the #5 bow.
  4. Drill out the glare cover rivets from the #5 bow.
    Fig 3: Glare Cover Rivets From #5 Bow
    G01451486Courtesy of GENERAL MOTORS CORP.
