Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the forward edge of the applique into the side reveal molding.
  2. Firmly press the applique and the reveal molding together.
  3. Replace the foam sealing tape if reusing the reveal molding.
    • Extend the tape 2.0 mm (0.08 in) beyond the reveal molding ends.
    • Do not stretch the tape to fit. The tape may shrink back, or creep, after installation, resulting in a gap which may cause a leak.
    Fig 1: Installing Applique Into Reveal Molding
    G01450811Courtesy of GENERAL MOTORS CORP.
  4. Position the windshield side reveal molding on the windshield frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the windshield side reveal molding screws.

    Tighten

    Tighten the windshield side reveal molding screws to 1.8 N.m (16 lb in).

    Fig 2: Windshield Side Reveal Molding Screws
    G01450812Courtesy of GENERAL MOTORS CORP.
  6. Install the windshield weatherstrip side retainer and the weatherstrip. Refer to WEATHERSTRIP SIDE RETAINER REPLACEMENT (COUPE AND CONVERTIBLE)  or WEATHERSTRIP SIDE RETAINER REPLACEMENT (HARDTOP) .

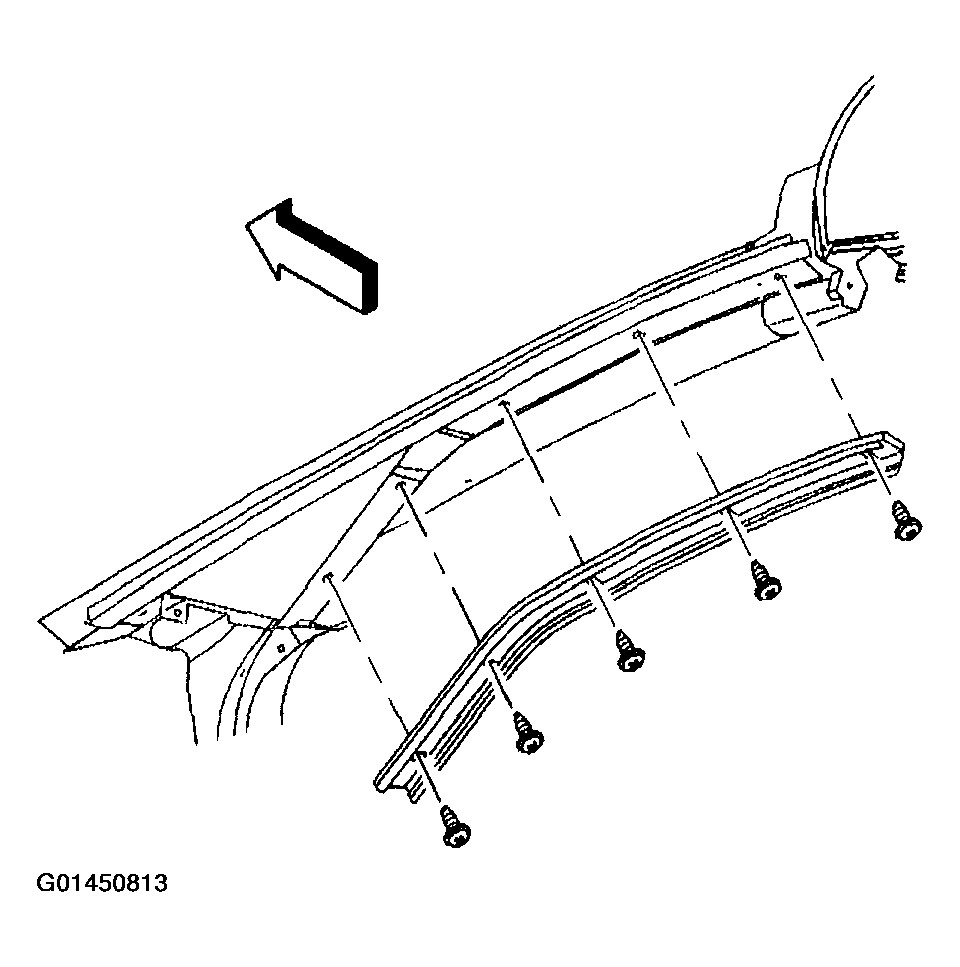

    Fig 3: Windshield Weatherstrip Side Retainer & Weatherstrip
    G01450813Courtesy of GENERAL MOTORS CORP.
