Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger knee bolster bracket as marked prior to removal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the passenger knee bolster bracket to passenger SIR bracket retaining bolts.

    Tighten

    Tighten the passenger knee bolster bracket retaining bolts to 12 N.m (106 lb in).

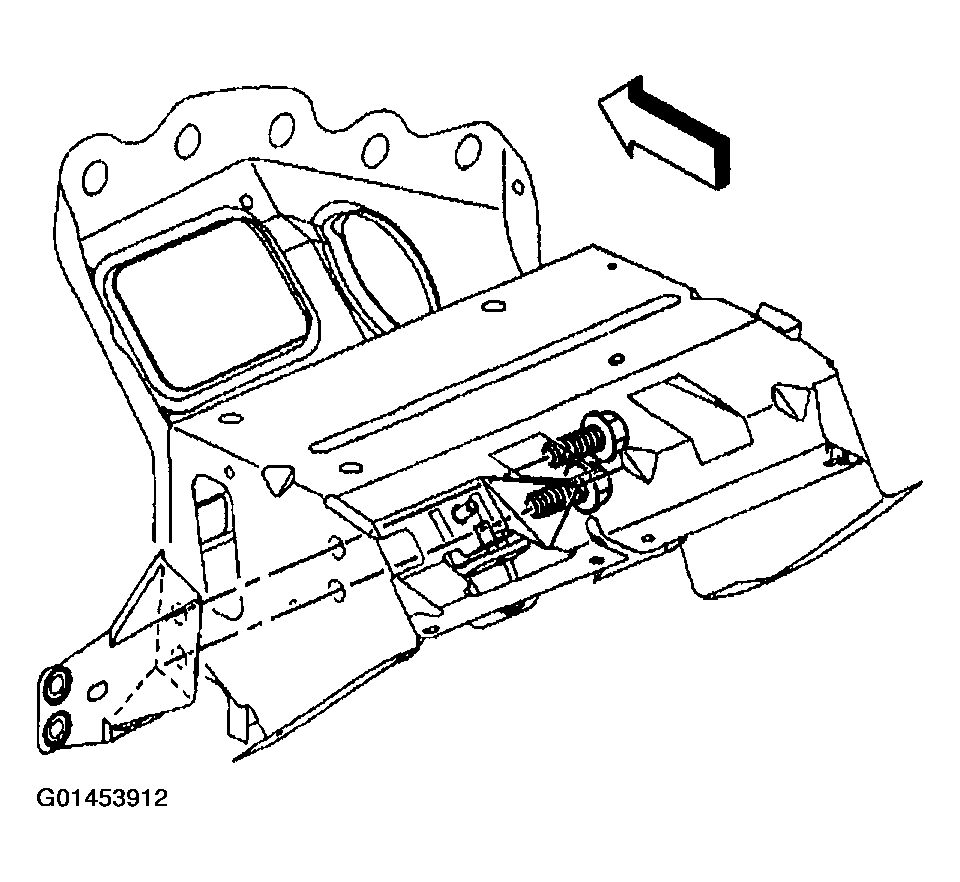

    Fig 1: Installing Passenger Knee Bolster Bracket
    G01453912Courtesy of GENERAL MOTORS CORP.
  3. Install the passenger knee bolster bracket to IP center support bracket retaining bolts.

    Tighten

    Tighten the passenger knee bolster bracket retaining bolts to 12 N.m (106 lb in).

  4. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  5. Install the IP passenger compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
  6. Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  7. Install the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  8. Install the console. Refer to CONSOLE REPLACEMENT .

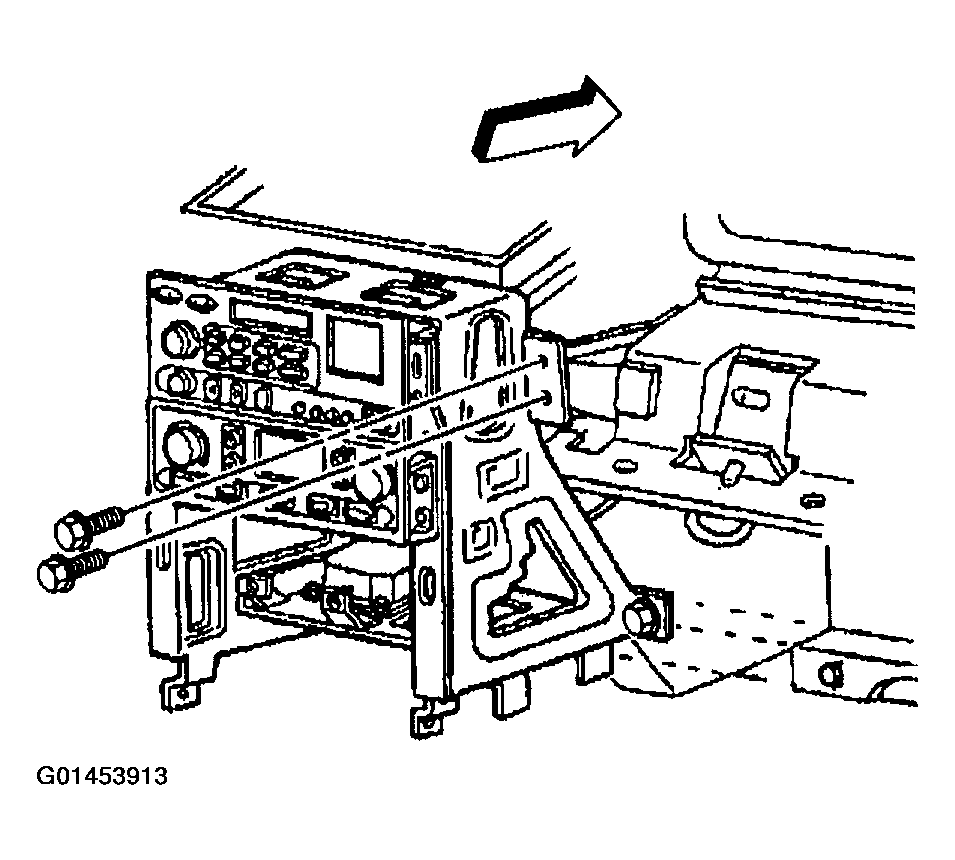

    Fig 2: Installing Passenger Knee Bolster Bracket To Instrument Panel Center Support Bracket Retaining Bolts
    G01453913Courtesy of GENERAL MOTORS CORP.
