Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outer driver knee bolster bracket into position as marked prior to removal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the driver knee bolster outer bracket to steering column bracket retaining screws.

    Tighten

    Tighten the driver knee bolster outer bracket retaining screws to 1.9 N.m (17 lb in).

  3. Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  4. Install the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  5. Install the console. Refer to CONSOLE REPLACEMENT .

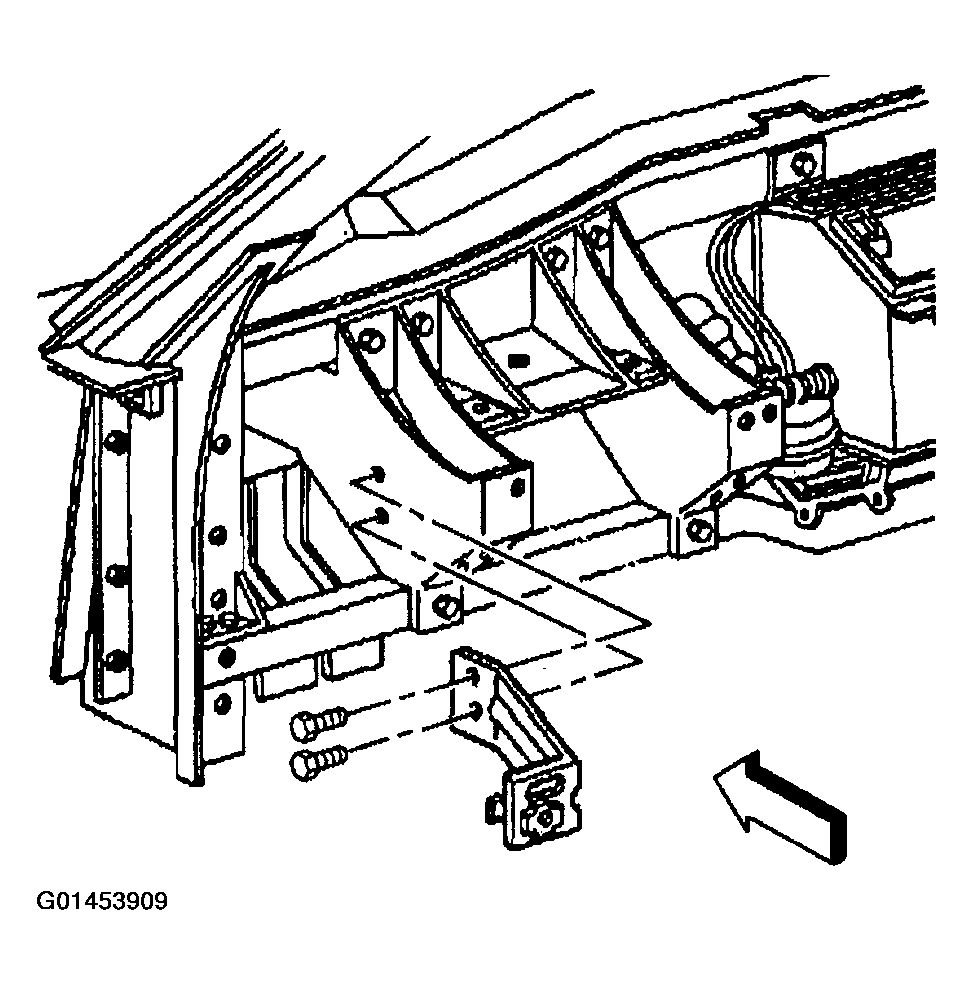

    Fig 1: Installing Driver Side Outer Knee Bolster Bracket
    G01453909Courtesy of GENERAL MOTORS CORP.
