Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) from the vehicle. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Disconnect the instrument panel (I/P) dimmer switch or I/P dimmer/head-up display (HUD) switch electrical connector.

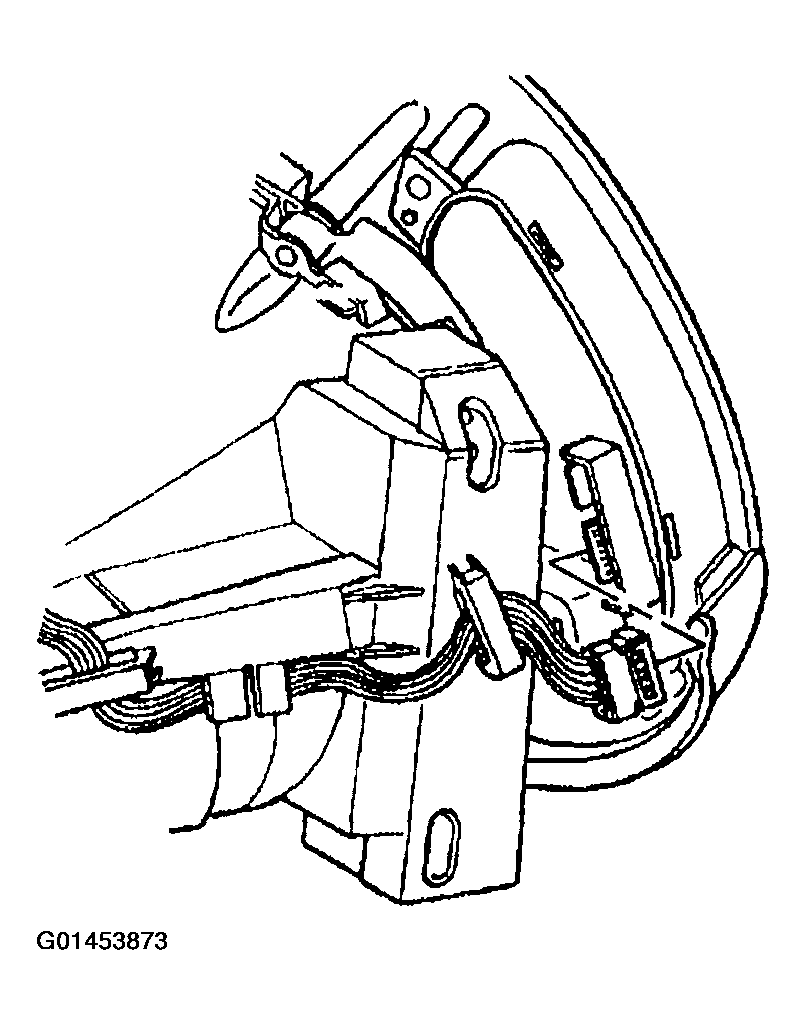

    Fig 1: Disconnecting Instrument Panel Dimmer Switch Electrical Connector
    G01453873Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the driver information center (DIC) switch electrical connector.

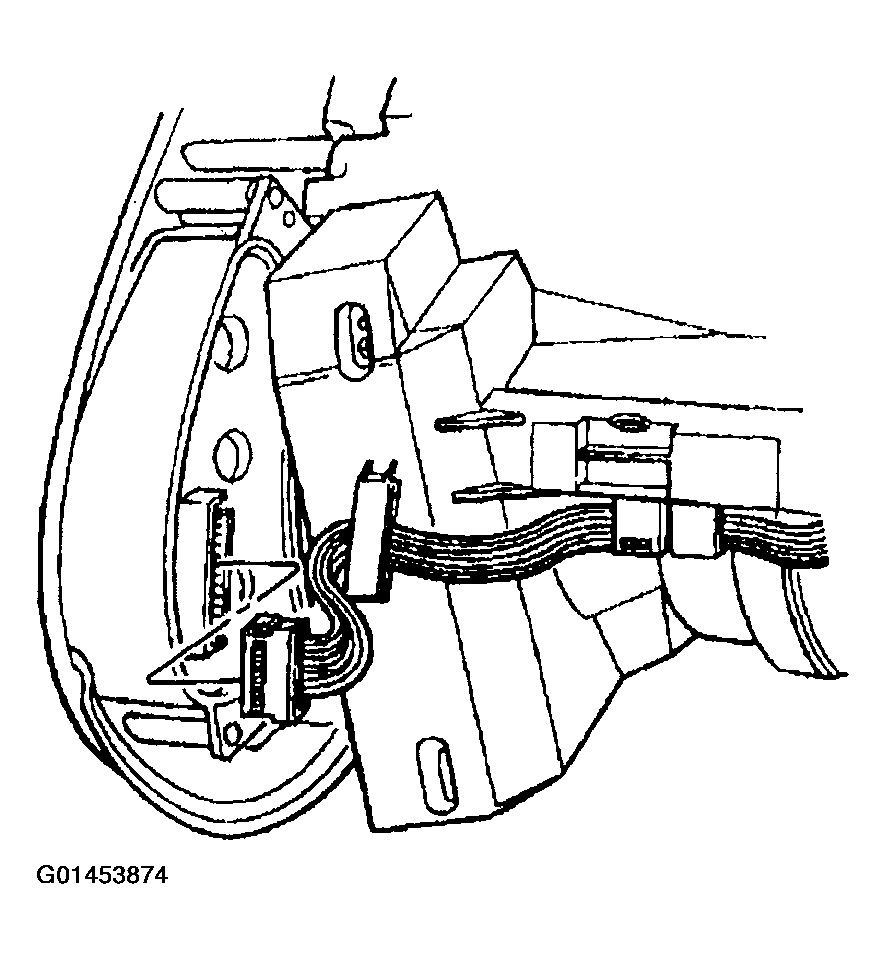

    Fig 2: Disconnecting Driver Information Center Switch Electrical Connector
    G01453874Courtesy of GENERAL MOTORS CORP.
  4. Remove the I/P cluster bezel retaining screws.
  5. Remove the cluster bezel from the IPC.

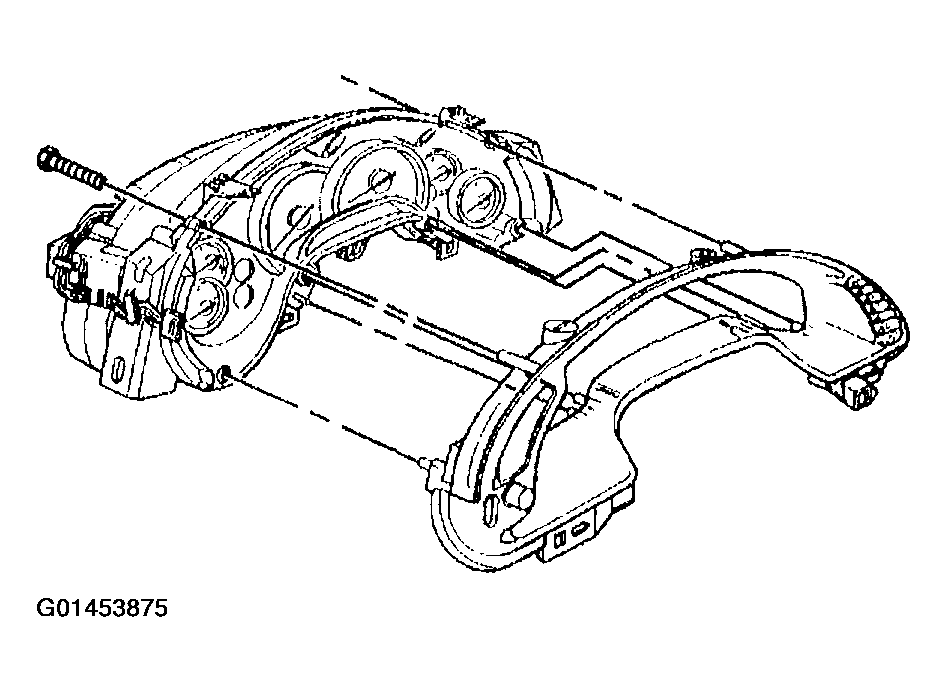

    Fig 3: Removing Cluster Bezel From Instrument Panel Cluster
    G01453875Courtesy of GENERAL MOTORS CORP.
  6. Remove the I/P dimmer switch or I/P dimmer/HUD switch retaining screws.
  7. Remove the I/P dimmer switch or I/P dimmer/HUD switch.

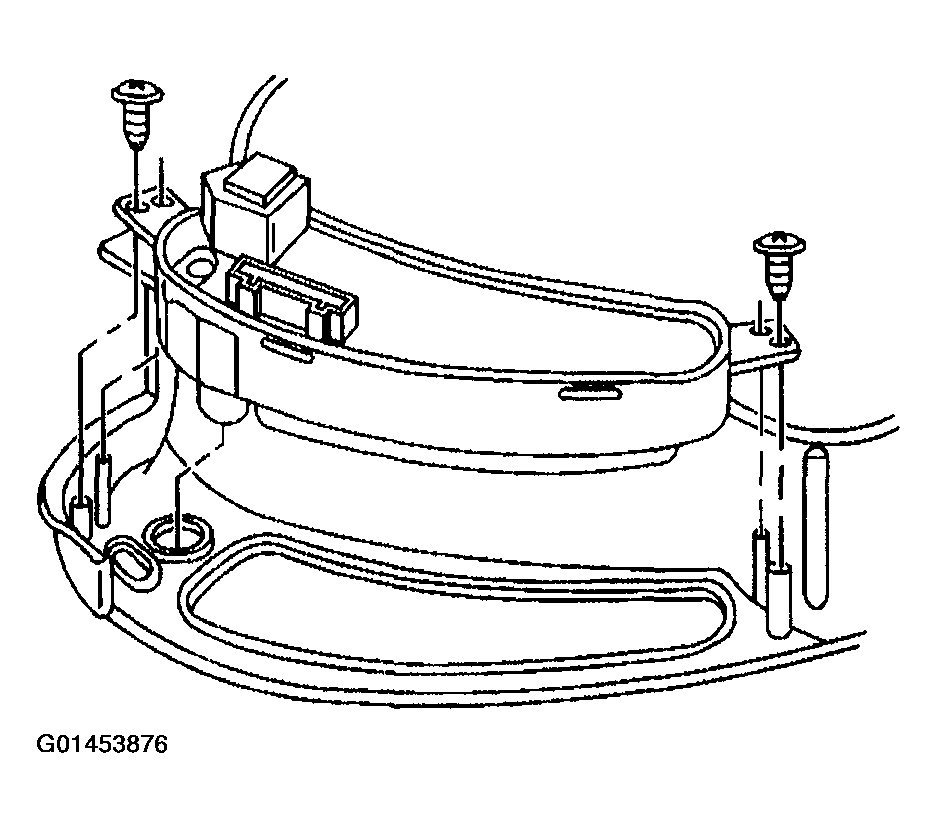

    Fig 4: Removing Instrument Panel Dimmer Switch
    G01453876Courtesy of GENERAL MOTORS CORP.
  8. Remove the DIC switch retaining screws.
  9. Remove the DIC switch.

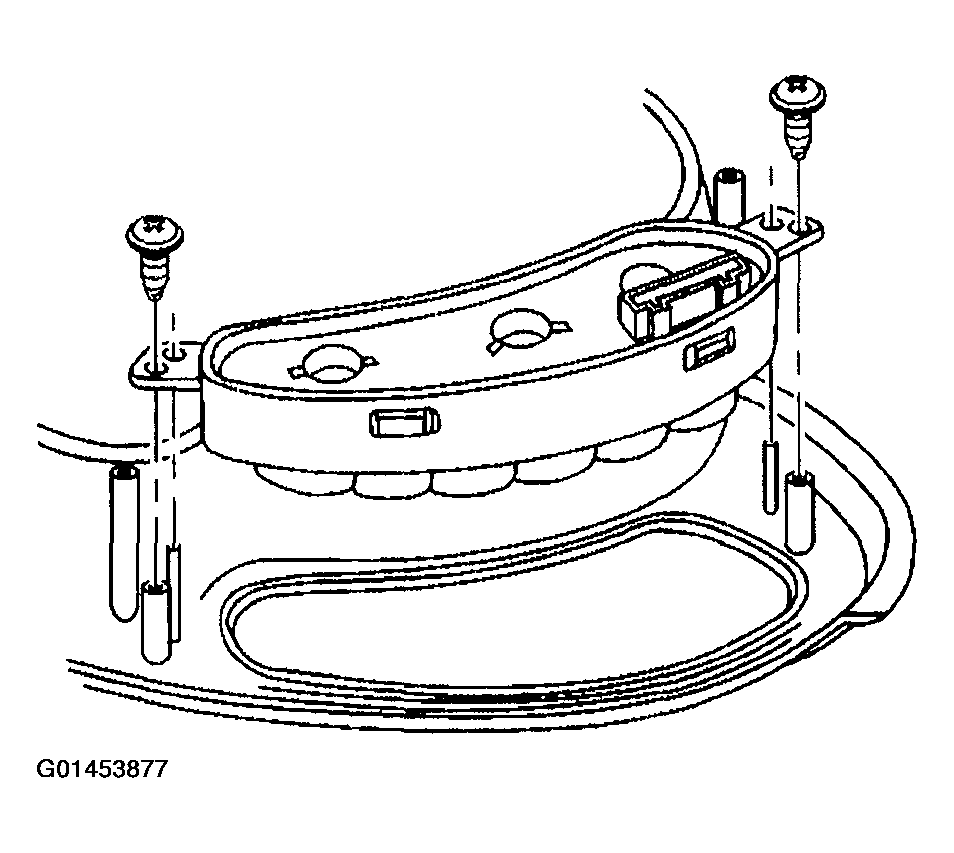

    Fig 5: Removing Driver Information Center Switch
    G01453877Courtesy of GENERAL MOTORS CORP.
