Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new clutch actuator cylinder hose to the clutch actuator cylinder.

    Check the new O-ring seal for proper placement on the actuator cylinder hose.

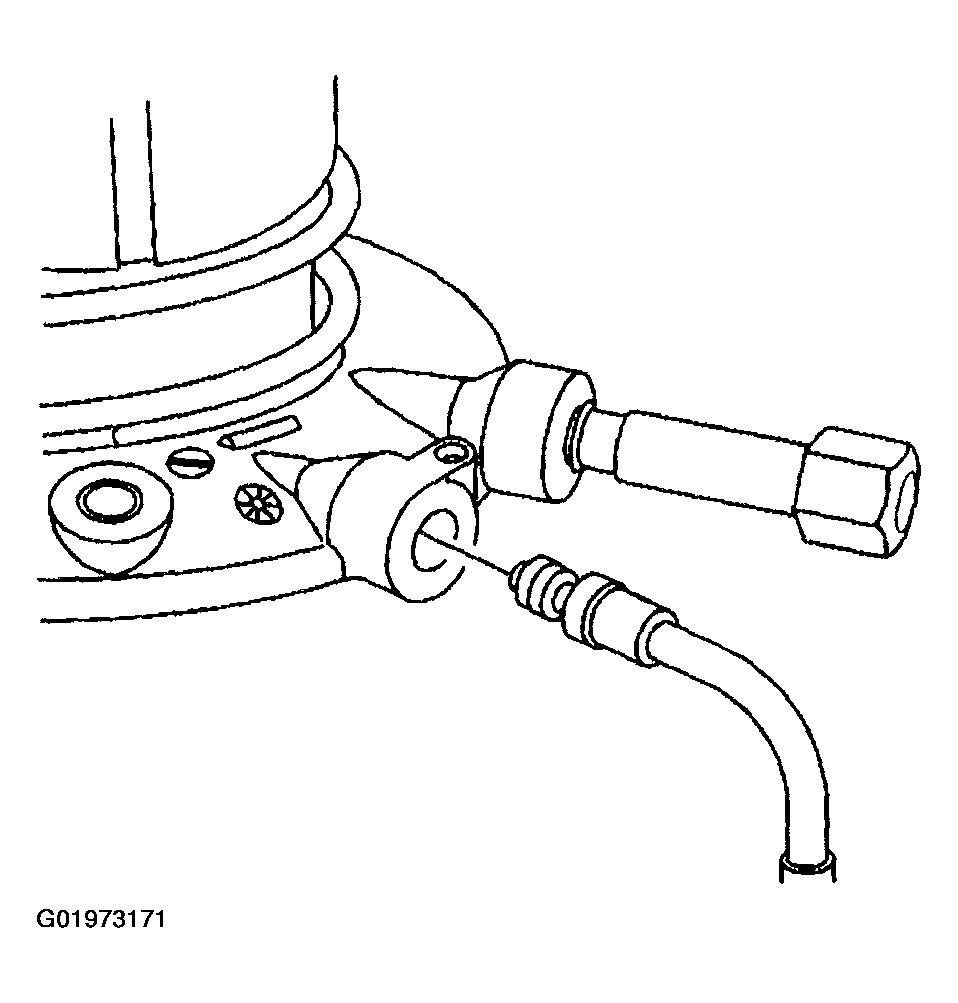

    Fig 1: Clutch Actuator Cylinder Hose
    G01973171Courtesy of GENERAL MOTORS CORP.
  2. Install the actuator cylinder hose roll-pin retainer using a small drift or punch.
  3. Rotate the actuator cylinder hose to ensure freedom of movement.
  4. Install the clutch actuator cylinder. Refer to CLUTCH ACTUATOR CYLINDER REPLACEMENT .

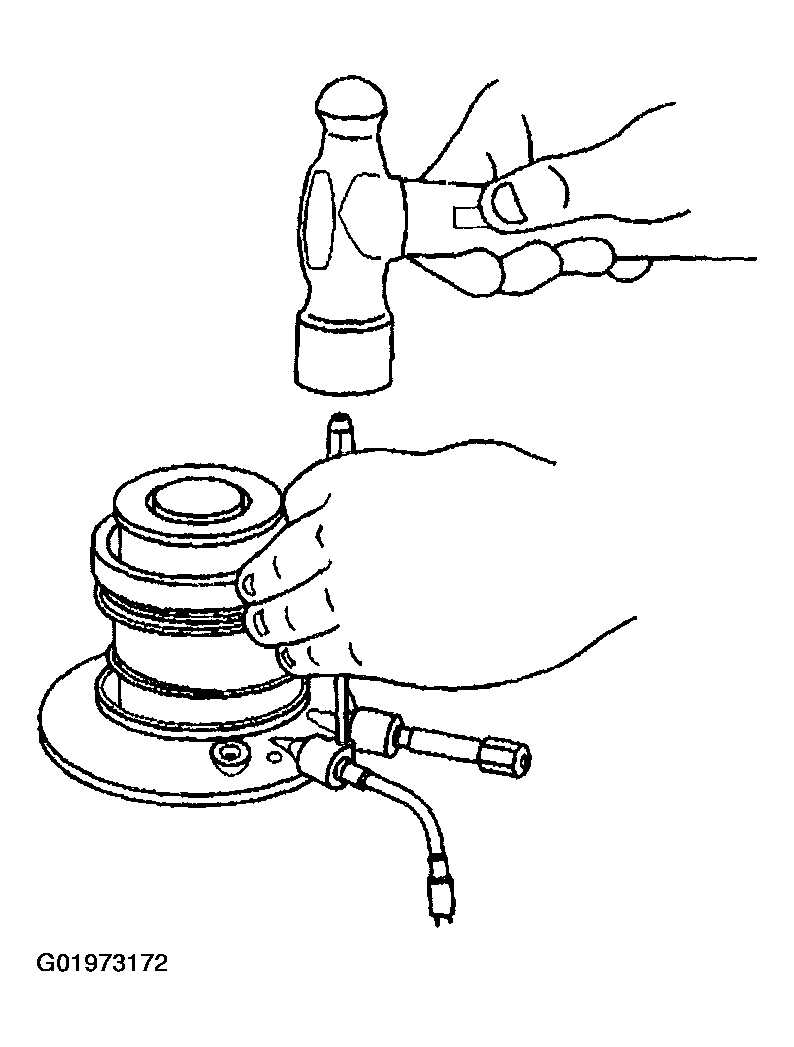

    Fig 2: Clutch Actuator Cylinder
    G01973172Courtesy of GENERAL MOTORS CORP.
