Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Release the transmission vent hose from the lower retaining clip.

    Important:  Observe the orientation of the transmission vent hose check valve prior to removal of the hose.

  3. Remove the transmission vent hose from the transmission vent tube.

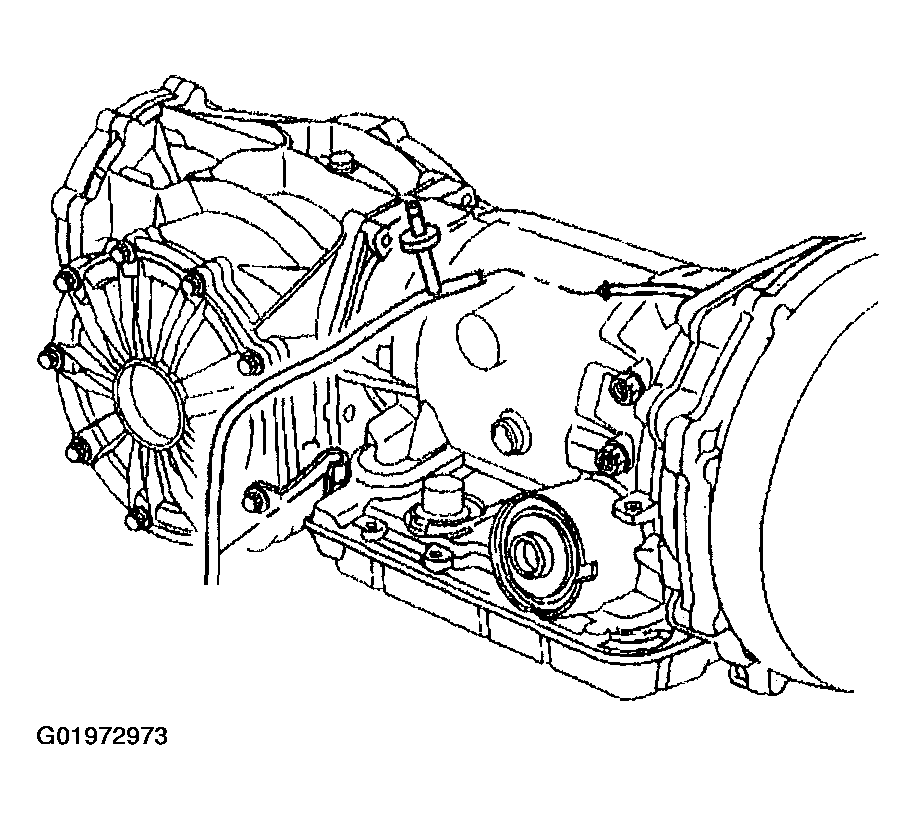

    Fig 1: Removing Transmission Vent Hose From Transmission Vent Tube
    G01972973Courtesy of GENERAL MOTORS CORP.
