Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission oil cooler (TOC) rear pipes into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the TOC rear pipe front and rear retaining clamps and bolts.

    Tighten

    Tighten the transmission oil cooler rear pipe front and rear retaining clamp bolts to 12 N.m (106 lb in).

  3. Install the TOC rear pipe middle clip.

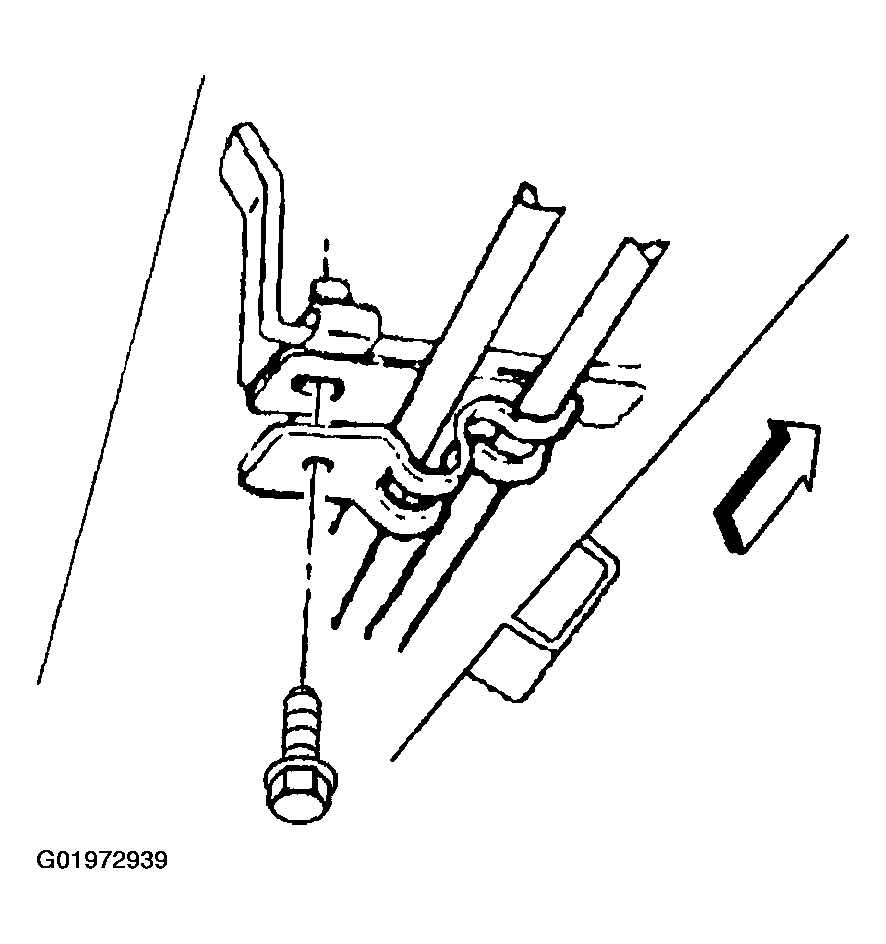

    Fig 1: Installing TOC Rear Pipe Front & Rear Retaining Clamps & Bolts
    G01972939Courtesy of GENERAL MOTORS CORP.
  4. Install the TOC rear pipe rear clip.

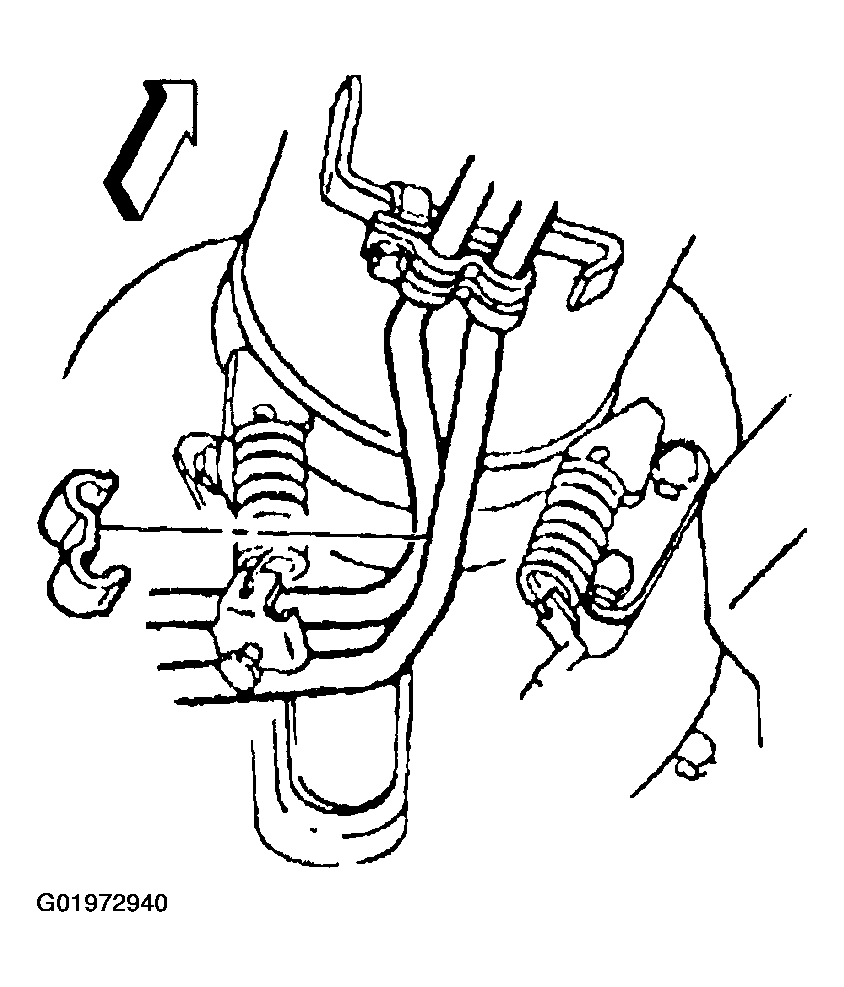

    Fig 2: TOC Rear Pipe Rear Clip
    G01972940Courtesy of GENERAL MOTORS CORP.
  5. Remove the caps from the rear of the TOC rear pipes and remove the plugs from the transmission fittings.
  6. ALIGN and HAND-START, then tighten ONLY by hand to seat the TOC rear upper and lower pipe fittings to the transmission fittings.

    Tighten

    Tighten the transmission oil cooler rear upper and lower pipe fittings to the transmission fittings to 35 N.m (26 lb ft).

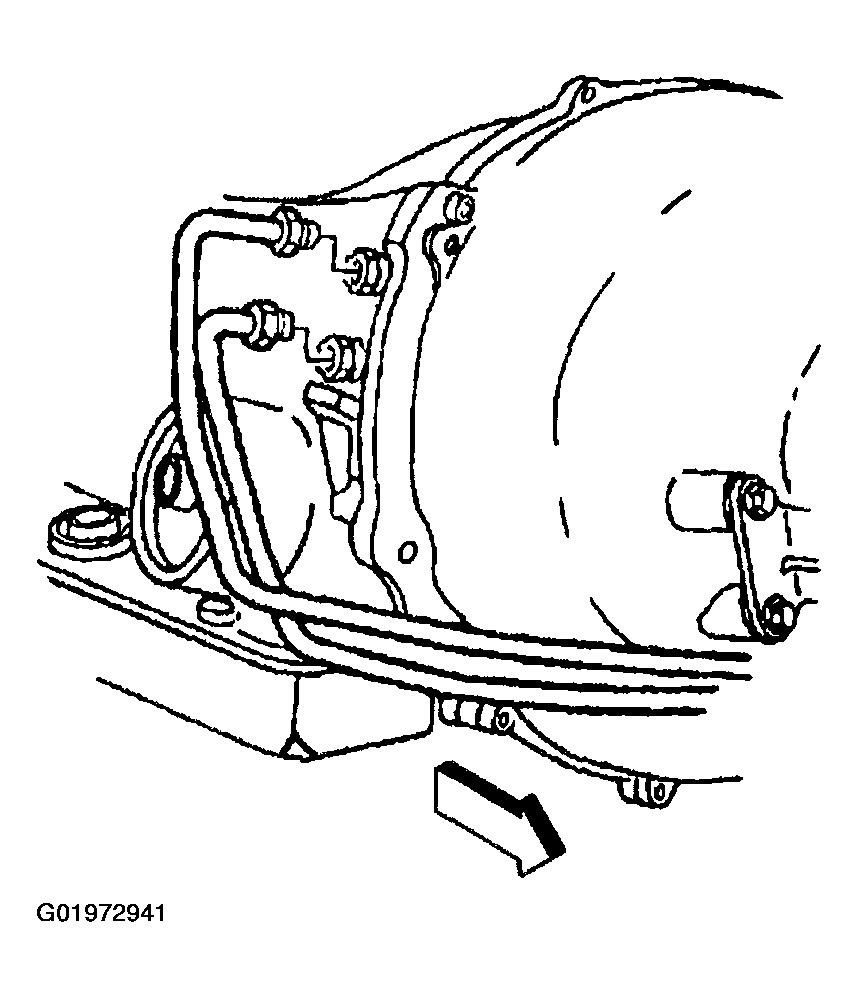

    Fig 3: Connecting TOC Rear Upper & Lower Pipe Fittings To Transmission Fittings
    G01972941Courtesy of GENERAL MOTORS CORP.
  7. ALIGN and HAND-START, then tighten ONLY by hand to seat the TOC rear upper and lower pipe fittings to the junction fittings at the engine flywheel housing.

    Tighten

    Tighten the transmission oil cooler rear upper and lower pipe fittings to the junction fittings at the engine flywheel housing to 27 N.m (20 lb ft).

  8. Install the driveline tunnel closeout panel. Refer to DRIVELINE TUNNEL CLOSEOUT PANEL REPLACEMENT in Propeller Shaft.
  9. Install the right side muffler. Refer to MUFFLER REPLACEMENT -- RIGHT in Engine Exhaust.
  10. Install the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT in Engine Exhaust.

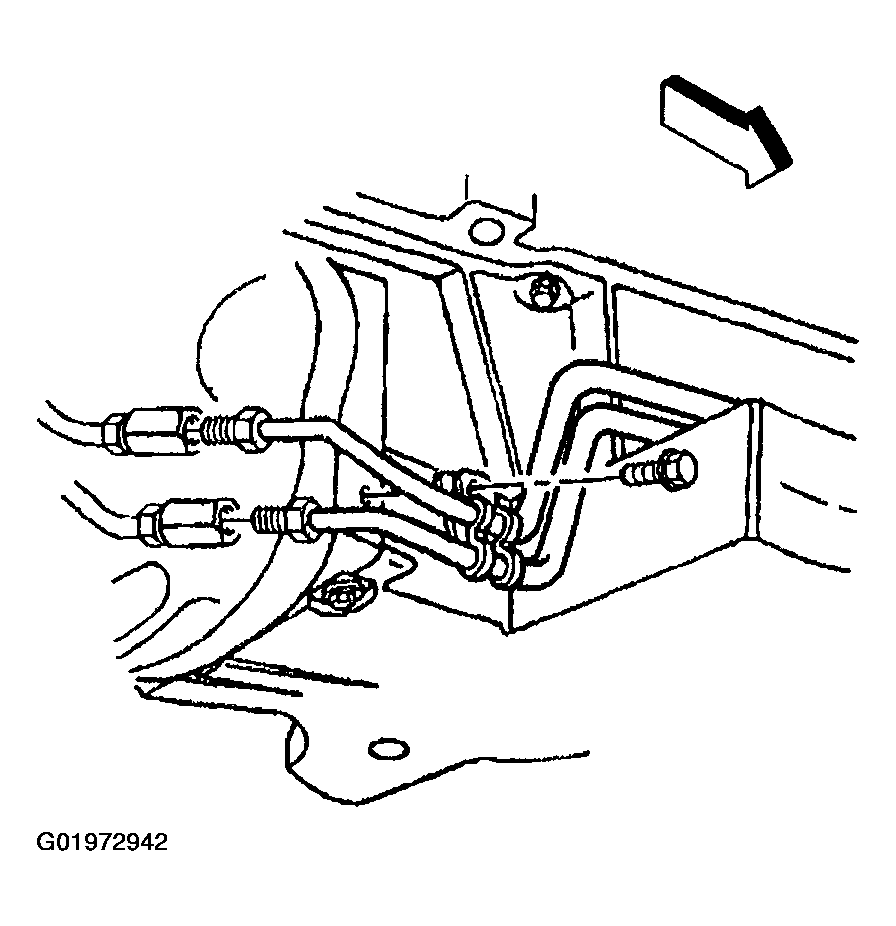

    Fig 4: Connecting TOC Rear Upper & Lower Pipe Fittings To Junction Fittings At Engine Flywheel Housing
    G01972942Courtesy of GENERAL MOTORS CORP.
  11. Check the transmission fluid level. Add if necessary.
  12. Lower the vehicle.
