DTC P1810: Invalid State Of The TFP Manual Valve Position Switch Circuit: Notes

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

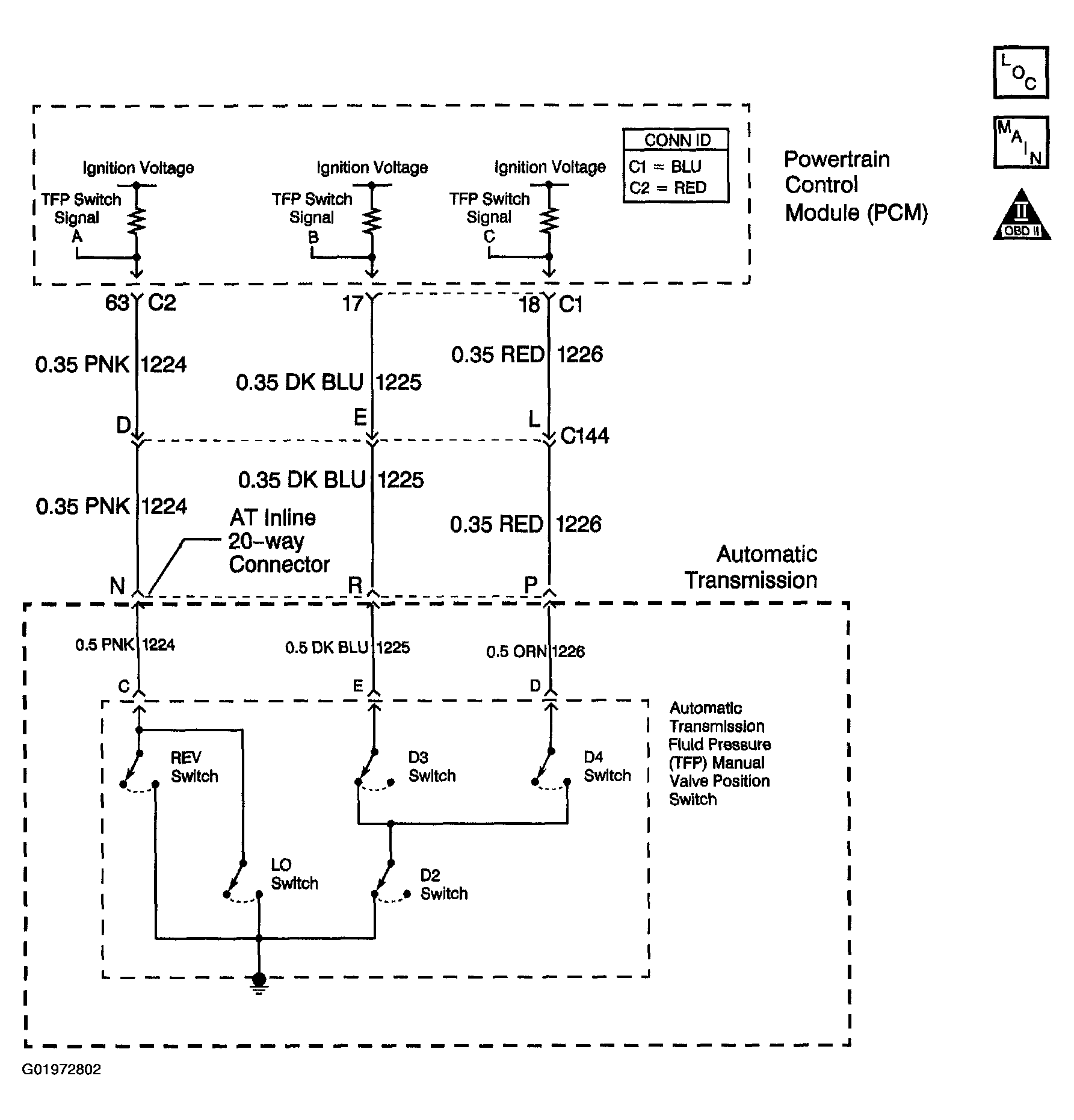

Fig 1: DTC P1810
G01972802Courtesy of GENERAL MOTORS CORP.
