Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT .
  2. Remove the upper exhaust pipe hanger bolts.
  3. Remove the exhaust pipe hanger.

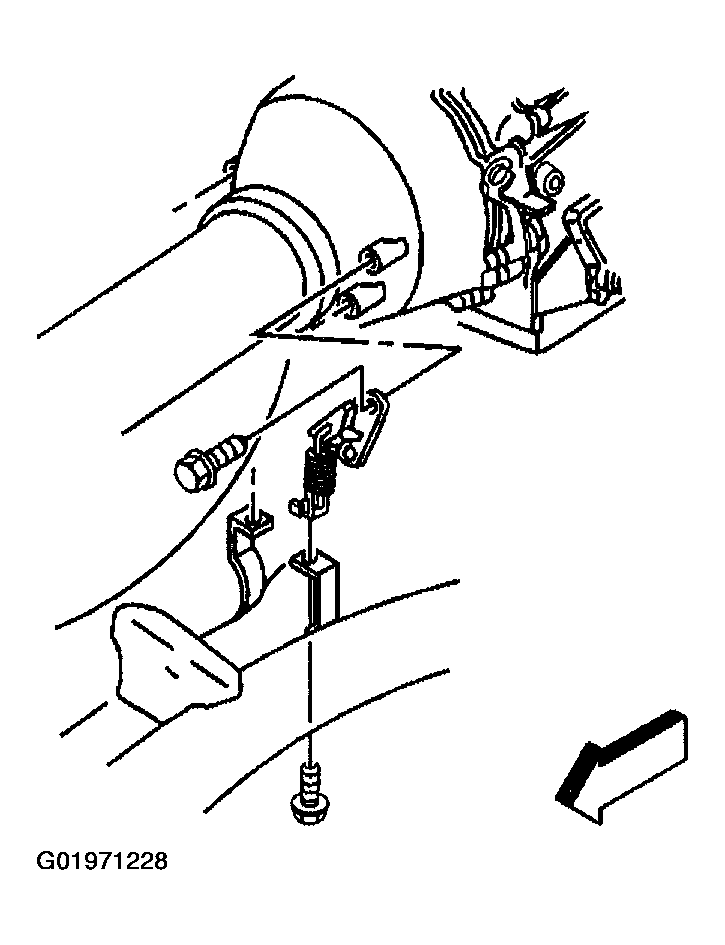

    Fig 1: Upper Exhaust Pipe Hanger Bolts
    G01971228Courtesy of GENERAL MOTORS CORP.
