Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil.
  2. Remove the oil filter.

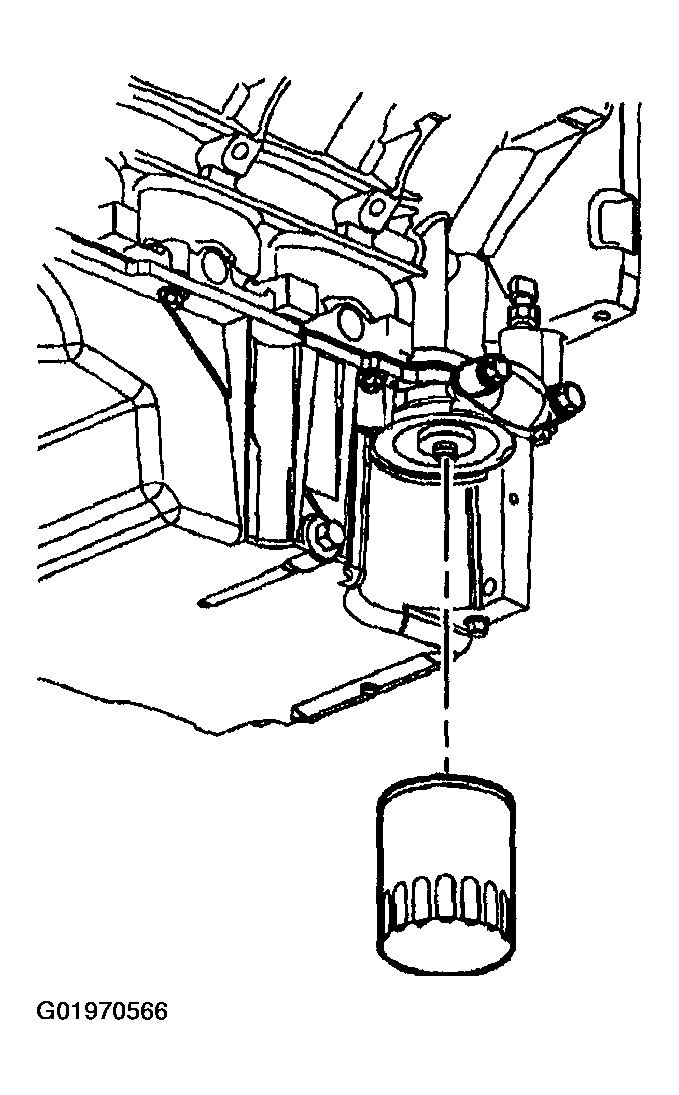

    Fig 1: Removing Oil Filter
    G01970566Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan cover bolts, cover, and gasket.
  4. Discard the gasket.

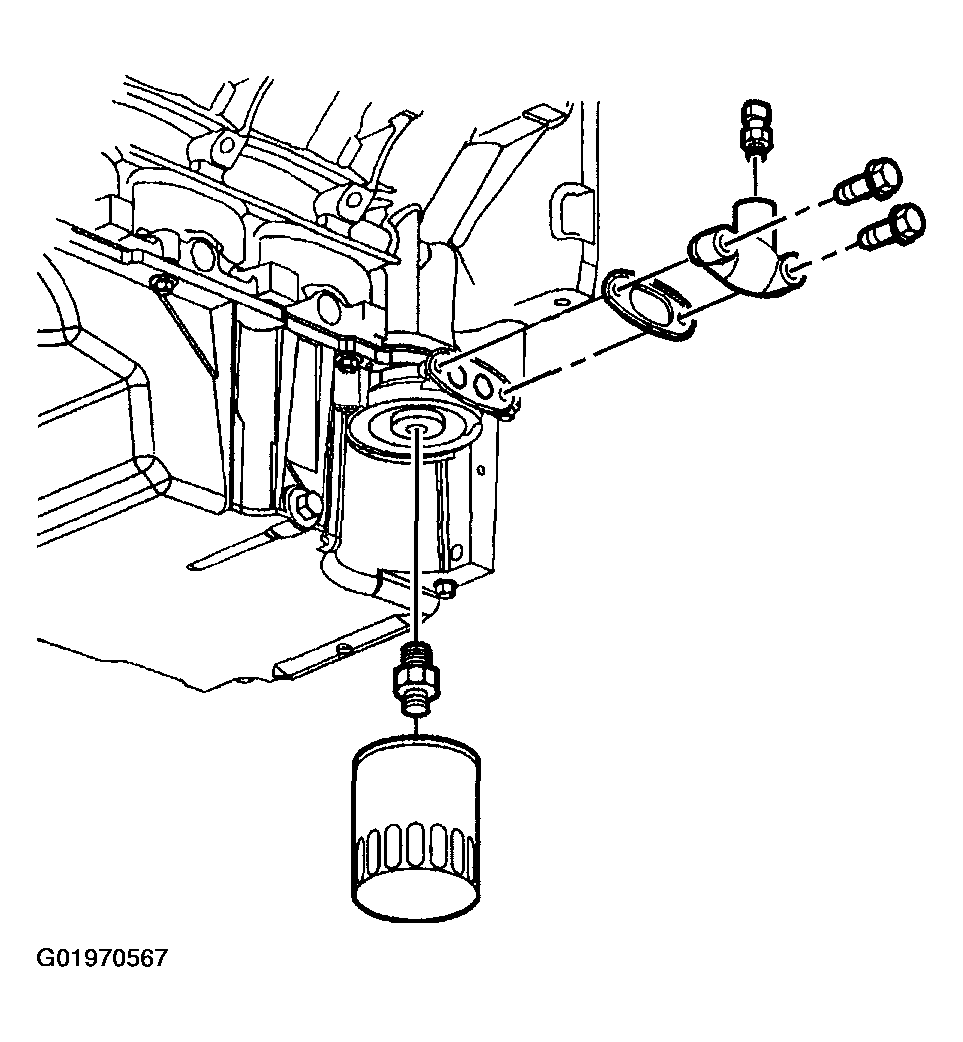

    Fig 2: Removing Oil Pan Cover
    G01970567Courtesy of GENERAL MOTORS CORP.
