Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT-ACCESSORY  .
  2. Remove the accessory drive belt tensioner bolts.
  3. Remove the accessory drive belt tensioner.

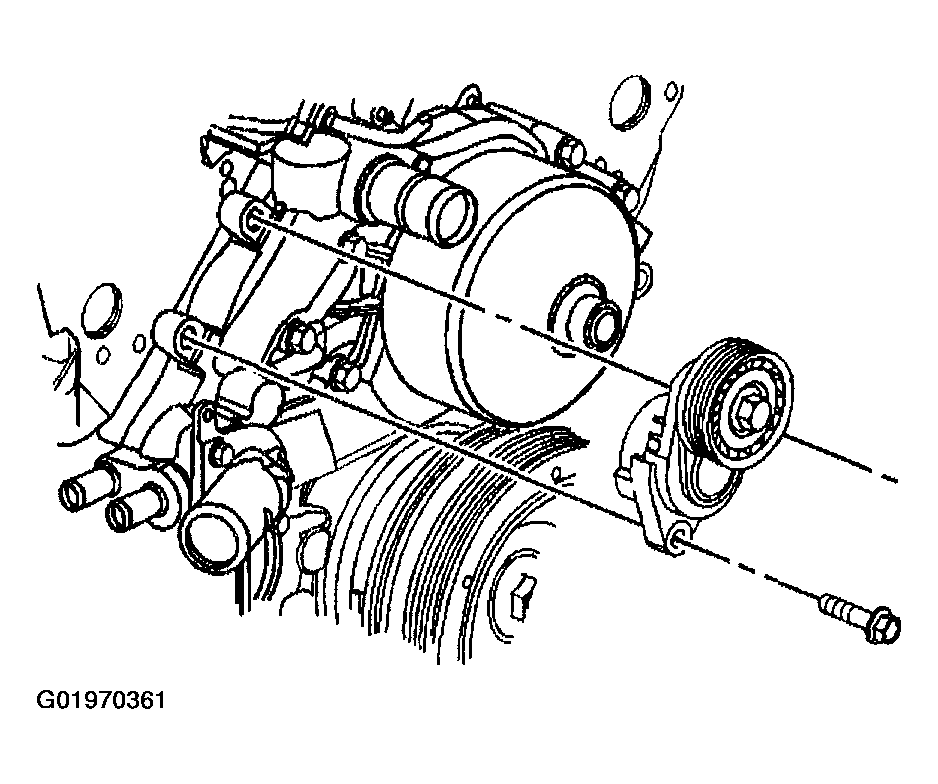

    Fig 1: Removing Accessory Drive Belt Tensioner
    G01970361Courtesy of GENERAL MOTORS CORP.
