Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the accessory drive belt tensioner.

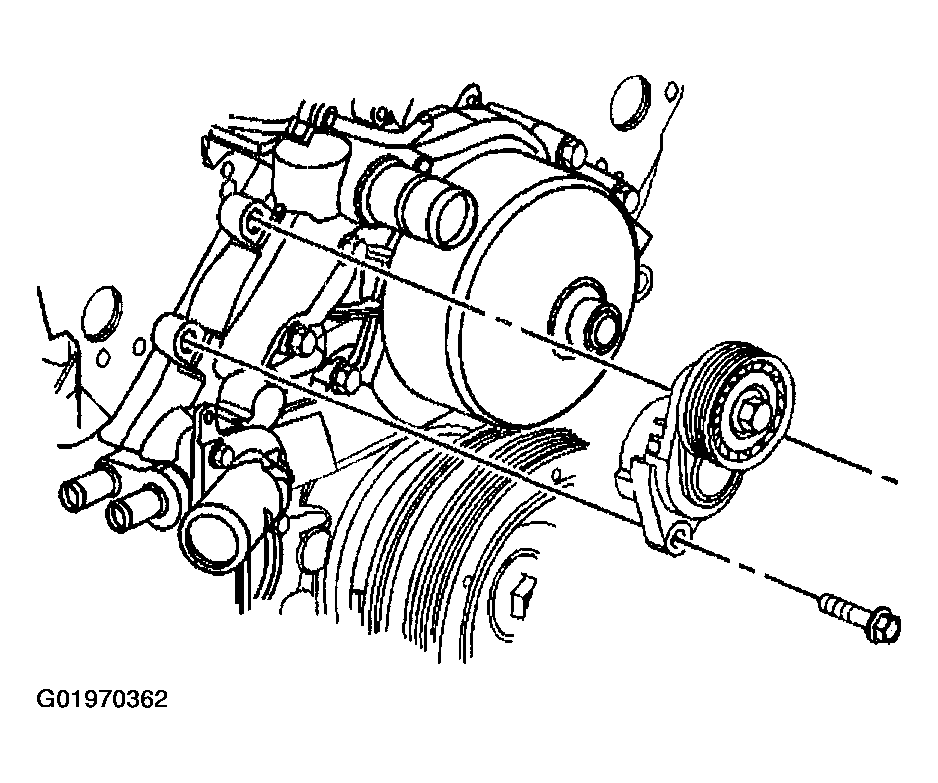

    Fig 1: Installing Accessory Drive Belt Tensioner
    G01970362Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the accessory drive belt tensioner bolts.

    Tighten

    Tighten the accessory drive belt tensioner bolts to 50 N.m (37 lb ft) starting with the lower bolt first.

  3. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT-ACCESSORY  .
